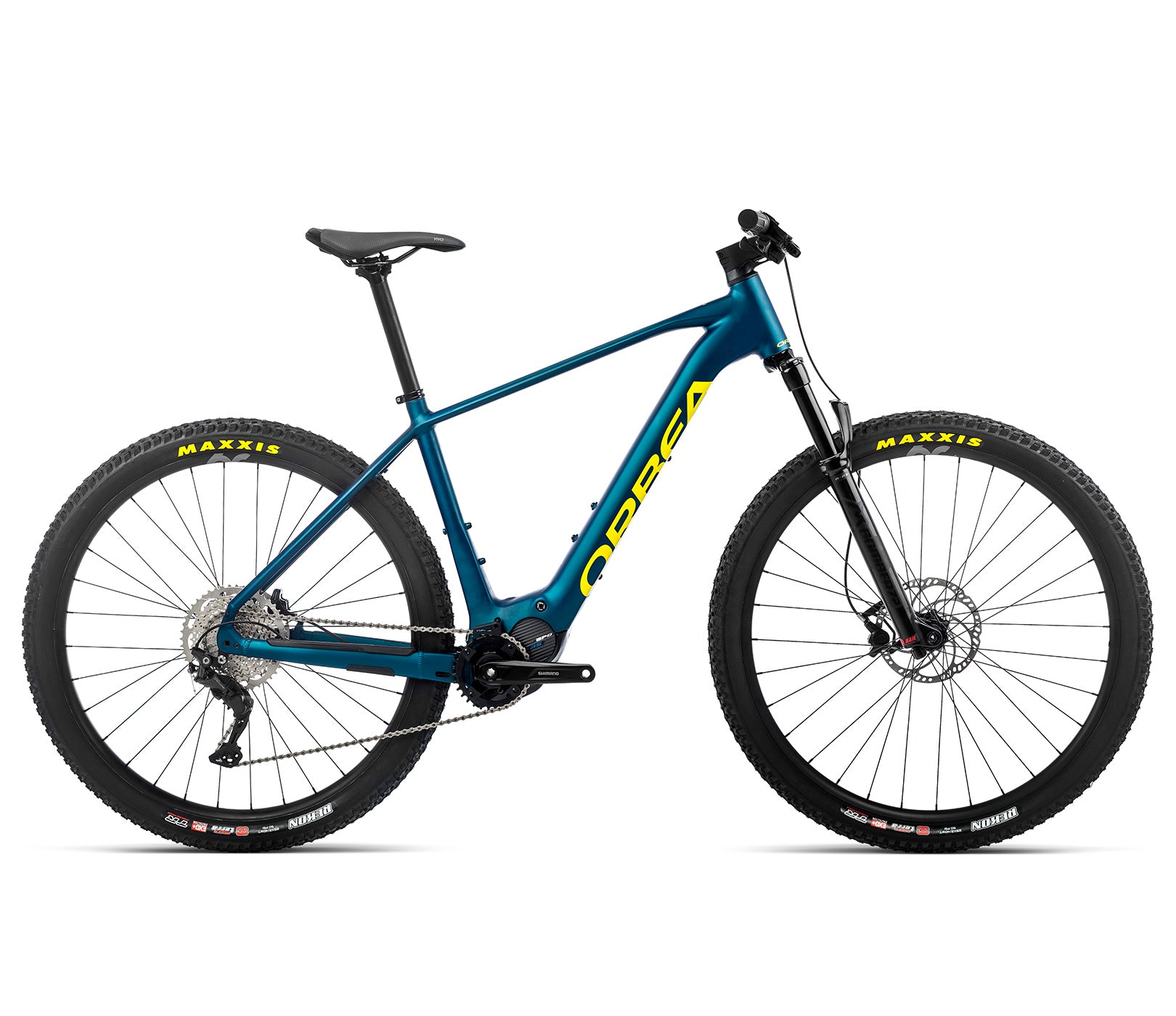

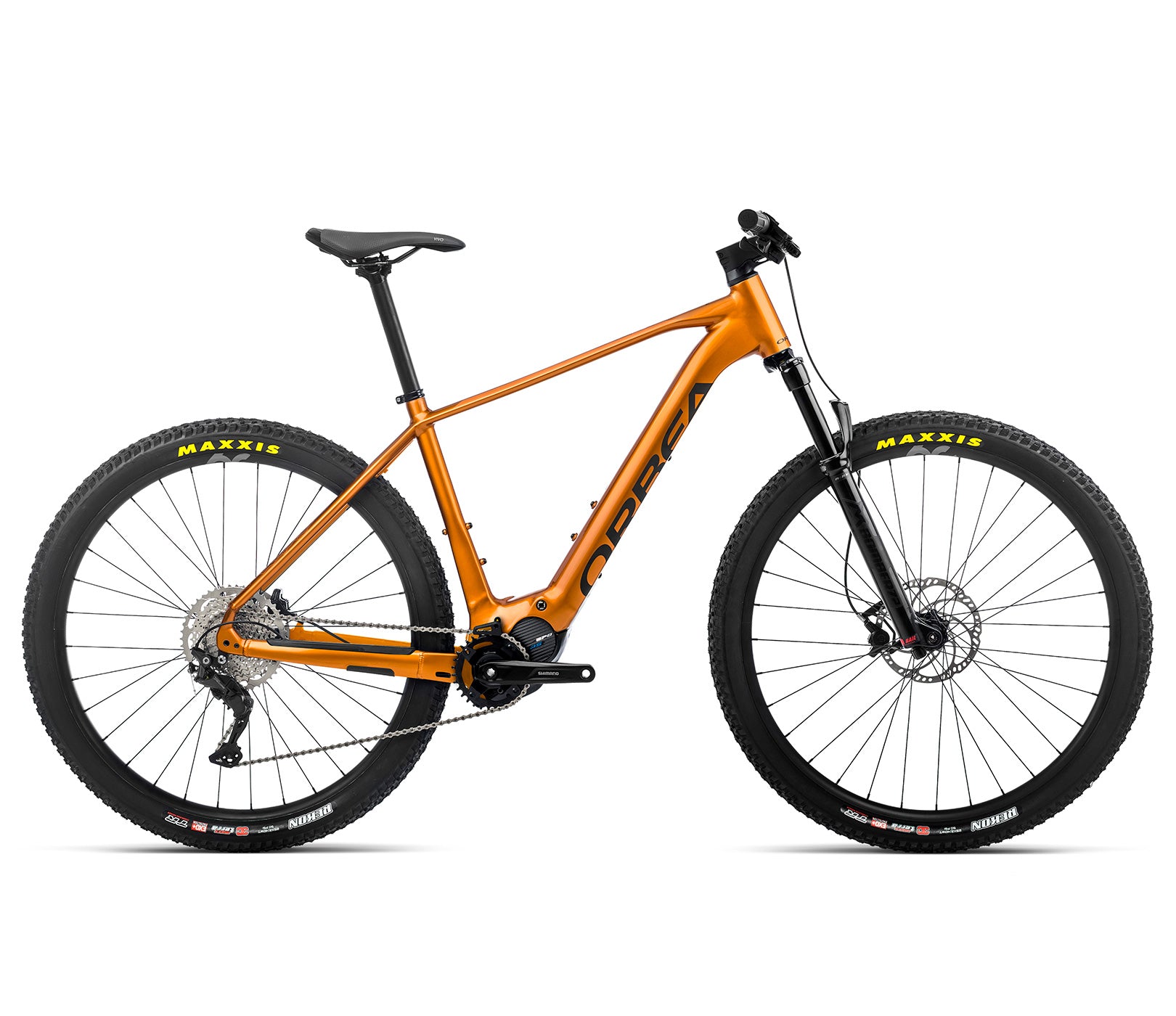

ORBEA URRUN 30 2024

FRAME
Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

FORK
Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized

HEADSET
FSA 1-1/2" Integrated Aluminium Cup

BATTERY
Orbea Internal 540Wh (Optional 252 Wh Range Extender)

RANGE EXTENDER
N/A

MOTOR
Shimano EP801-RS

DISPLAY
Shimano EN500

CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A

CHAINRING
Alloy EP8 32t

CRANK
Shimano Steps EM600

SHIFTERS
Shimano Cues SL-U6000

CASSETTE
Shimano CS-LG400 11-50t 11-Speed

REAR DERAILLEUR
Shimano Cues U6000 GS Shadow

CHAIN
Shimano LG500

CHAINGUIDE
Orbea Rise chainguide

HANDLEBAR
OC Mountain Control MC31, Rise20, Width 800

STEM
Alloy forged, 35mm interface, -6º, ICR

BRAKES
Shimano MT201 Hydraulic Disc

WHEELS
Alloy, Tubeless, 29", 29c, 32H

TYRES
Schwalbe Smart Sam Performance, 29x2.35, Addix, Black

PEDALS
VP-537 Black

SEATPOST
OC Mountain Control MC21, 31.6mm, Dropper

SEATPOST LEVER
Shimano SL-MT500

SADDLE
Fortune QF-3091
