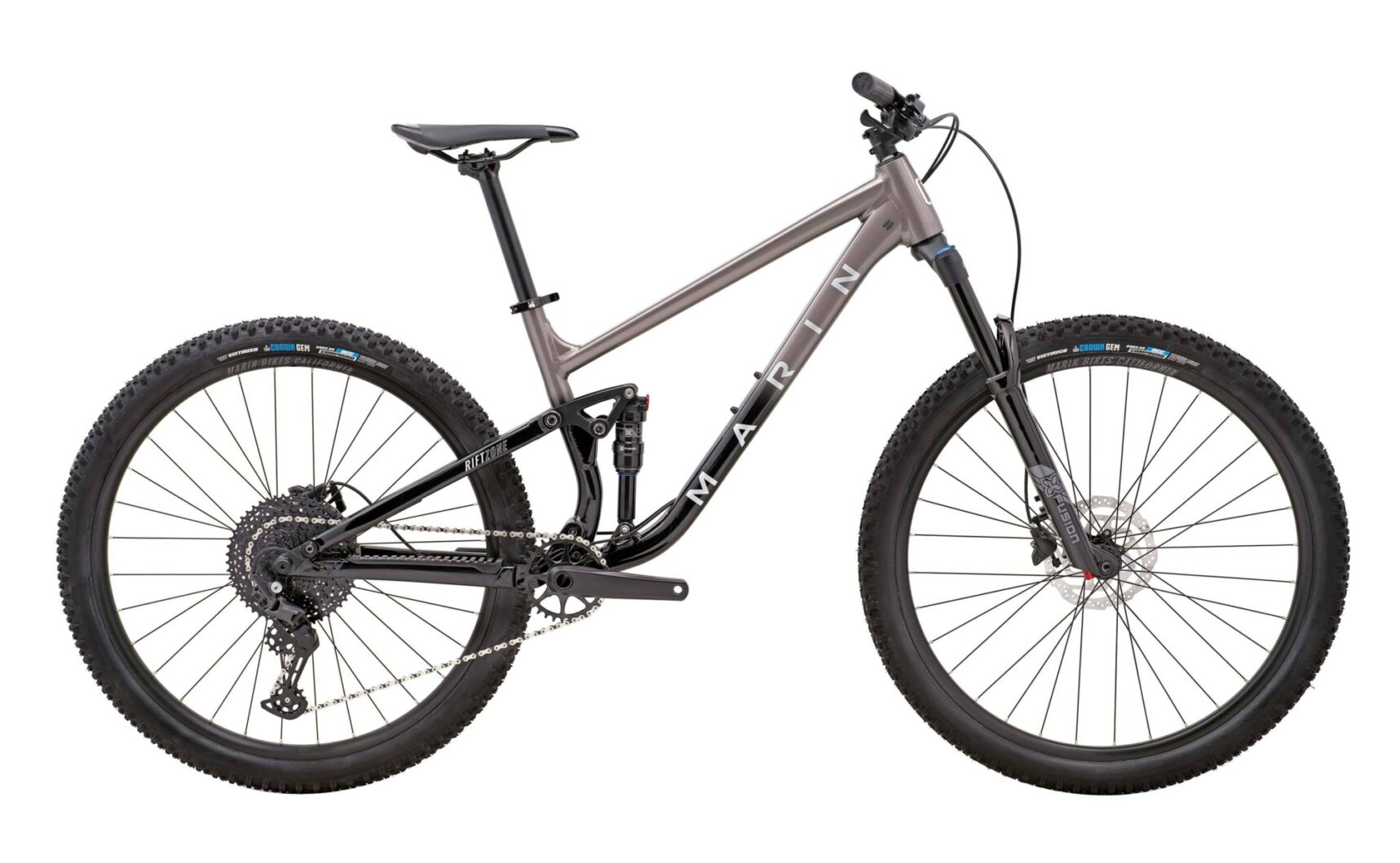

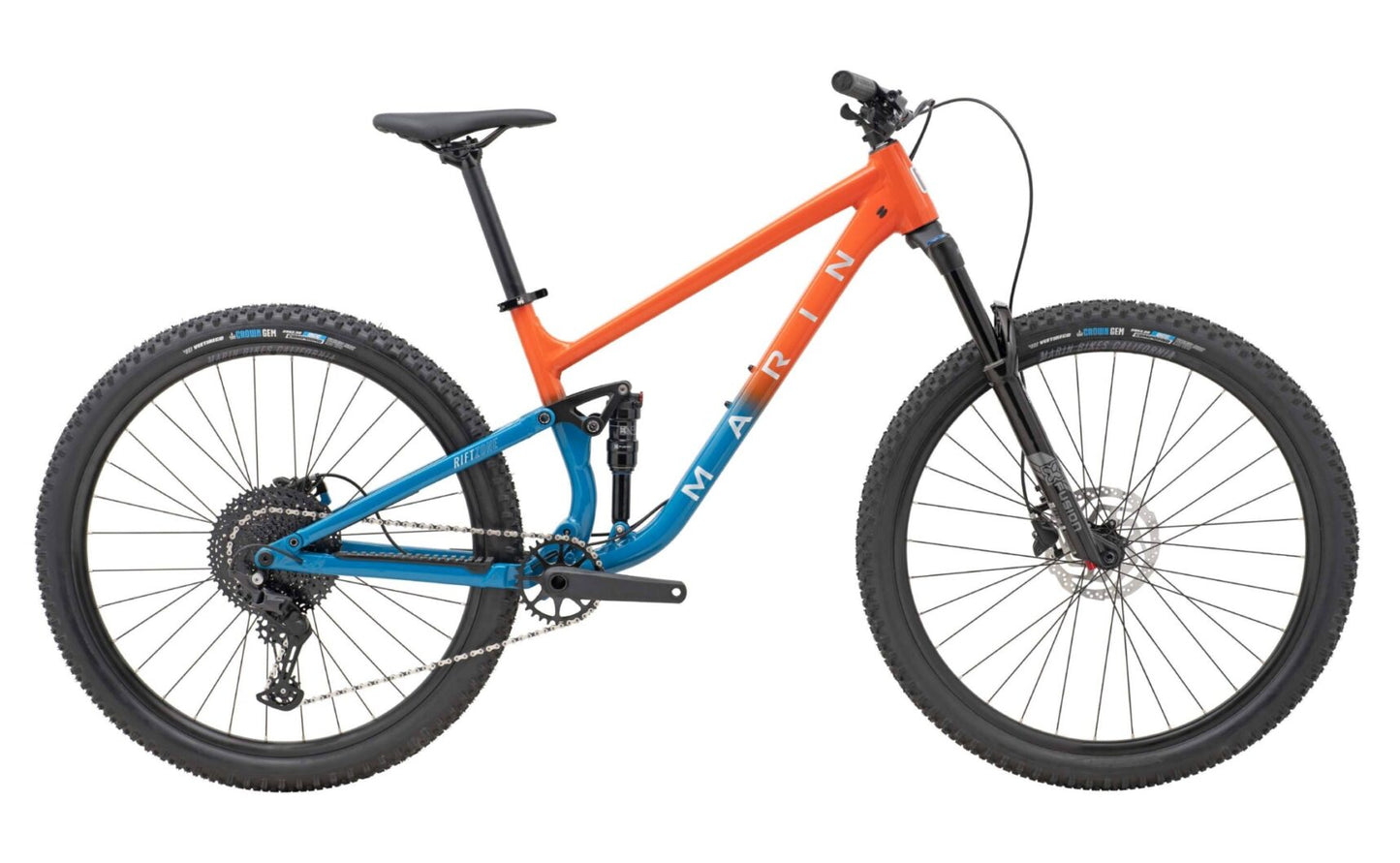

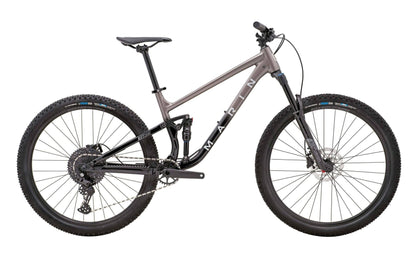

MARIN RIFT ZONE 29 1 2023

FAST PACED, EPIC RIDES

PUSHING THE ENVELOPE UP AND DOWN THE TRAIL

CHASING PERSONAL RECORDS

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

SPECIFICATIONS

• FRAME

  All New Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs

• FORK

  X-Fusion Slide Boost RC, 29", 140mm Travel, Compression and Rebound Adjustment, 44mm Offset

• SHOCK

  X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

• RIMS

  Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

• HUB FRONT

  Shimano HF-MT400B, 110x15mm, Centerlock

• SPOKES

  14g Black Stainless Steel

• TIRES

  Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready

• DERAILLEUR REAR

  Shimano Deore, 11-Speed, SGS

• DERAILLEUR FRONT

  -

• SHIFT LEVER

  Shimano Deore, 11-Speed, SL-5100R

• CRANKSET

  Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

• BOTTOM BRACKET

  External Sealed Cartridge Bearing

• CHAIN

  KMC X-11 Silver and Black

• CASSETTE

  Sunrace, 11-Speed, 11-51T, ED Black

• BRAKES FRONT

  Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

• BRAKES REAR

  Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

• BRAKE LEVERS

  Shimano BL-MT201

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin MTN, Closed End

• HEADSET

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  Marin Alloy, 30.9mm

• SADDLE

  Marin Speed Concept

• PEDALS

  -

• EXTRAS

  Closed 9-12 Thru-Axle QR System

Specifications, pricing, and availability are subject to change without notice.
