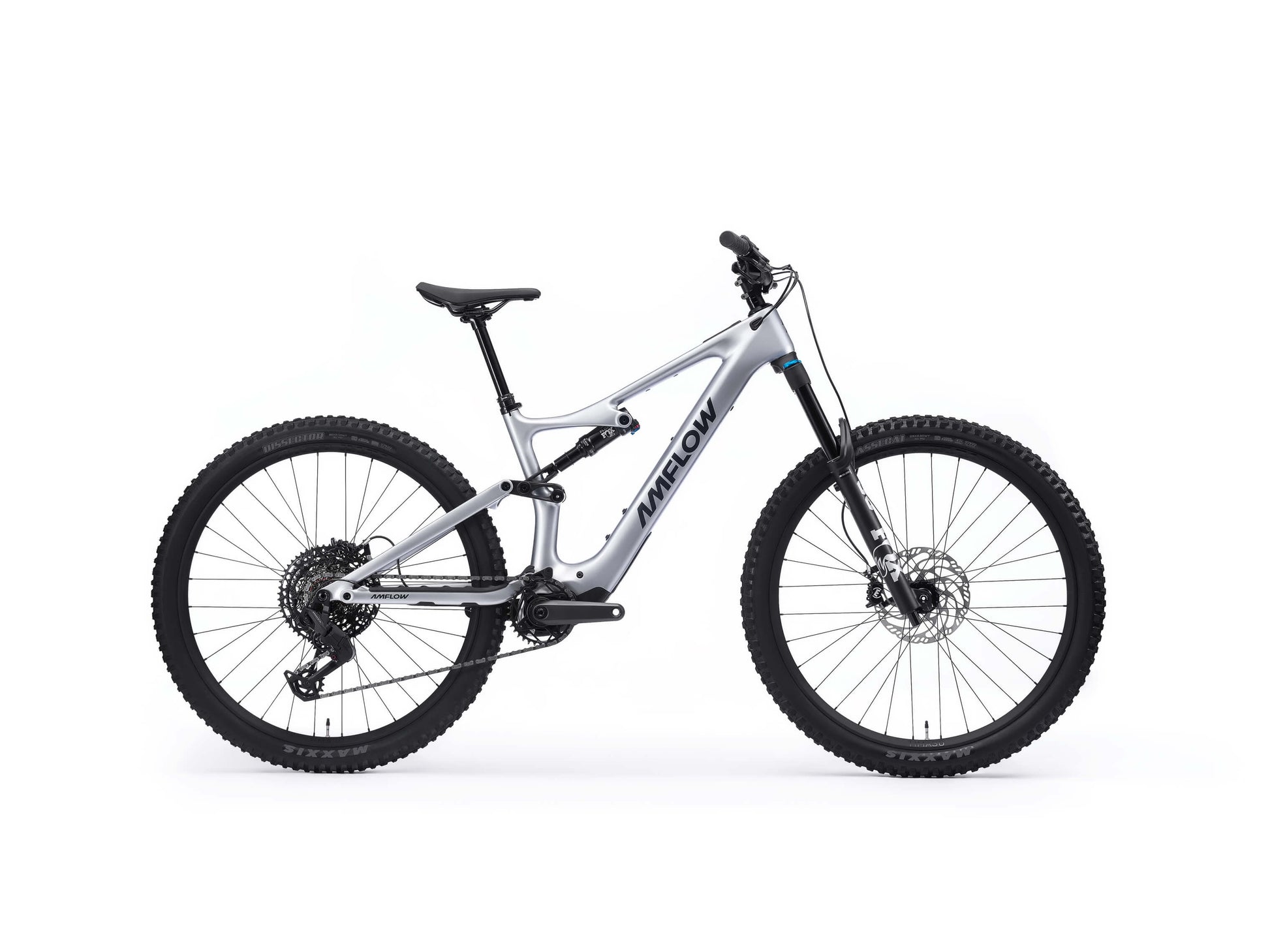

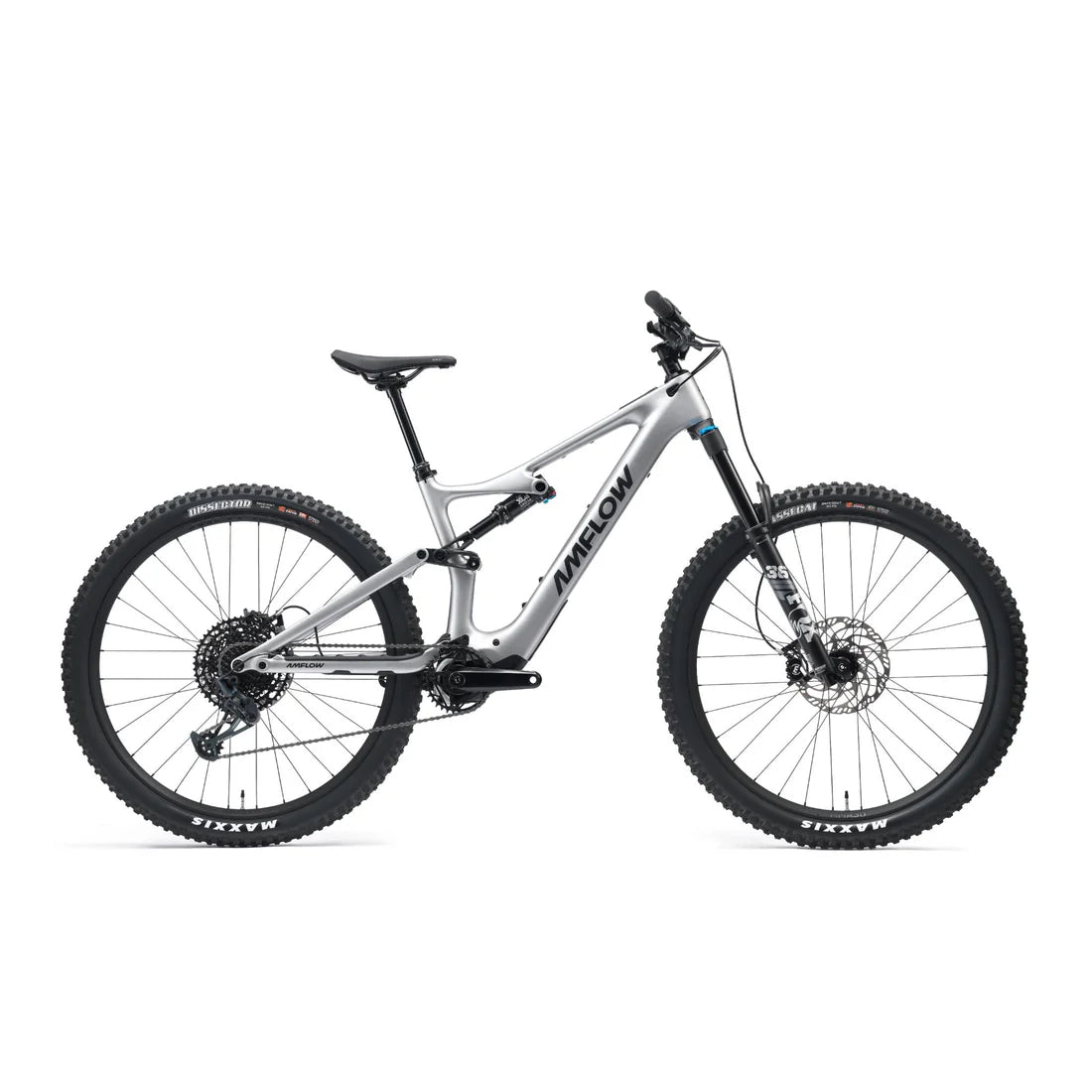

Amflow PL Carbon

PL Carbon

Lightweight, powerful, high-capacity battery and modern frame design. The all-new  AMFlow PL Carbon is an advanced electric mountain bike with unbeatable specification numbers to put a smile on any demanding e-MTB riders face.

The entry level PL Carbon model gets you unrivalled spec for the money, the exact same frame and drive system as the Pro model with renown high-spec components from SRAM and Fox. The PL Carbon comes with the 800wh battery for maximum ride time.

At the core of the AmFlow PL Carbon is the DJI Avinox drive system, this seamlessly integrated motor has incredible power-to-weight and pushes out an enormous 850w peak and 105nm of torque while only coming in at 2.52kg. This revolutionary motor is paired with a 800wh, 157km range (3.74kg) battery, which is cleverly hidden in the bikes downtube.

As well as the expected Eco, Trail and Turbo, the DJI Avinox Drive System also features a specialised Auto mode, which adapts assistance in real-time based on road conditions and riding position. Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes. On top of this there is a walk assist mode for pushing the bike to the uplift and also a BOOST mode that gives a short burst of huge power (120nm, 1000w) for 30 seconds should you need to get over a particularly tricky piece of terrain. The Trail mode is more than equivalent to many other brands' boost mode.

Discipline
Enduro/All-Mountain

Material
Carbon

Front Travel
160mm

Rear Travel
150mm

Wheel Size
29"

Warranty
5 Years (frame)

Drive System -
Avinox M1 Drive Unit: 105 N·m, 2-inch OLED Control Display
Rear Shock -
FOX Float Performance, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever
Fork -
FOX 36 Performance, 160mm travel, GRIP Damper, 15×110mm, 44mm rake
Derailleur -
SRAM GX Eagle 12-speed
Crankset -
DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Shifter -
SRAM GX Eagle Trigger Shifter｜Single Click
Cassette -
SRAM PG-1230, 11-50T
Chain -
SRAM NX Eagle
Brakes -
Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
Wheels -
Amflow HMA-30, Alloy, 29'', 30mm internal width, 32H, tubeless ready
Tyres -
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR, Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Handlebar -
Amflow Enduro Alloy Handlebar
Grips -
Amflow Enduro Grips
Stem -
Amflow Enduro Stem, One-piece CNC
Saddle -
Selle Royal SRX Plus
Seatpost -
KS Rage-i
Accessories -
Quick Start Guide,
Torque Wrench, Shock Pump, Front and Rear lights
