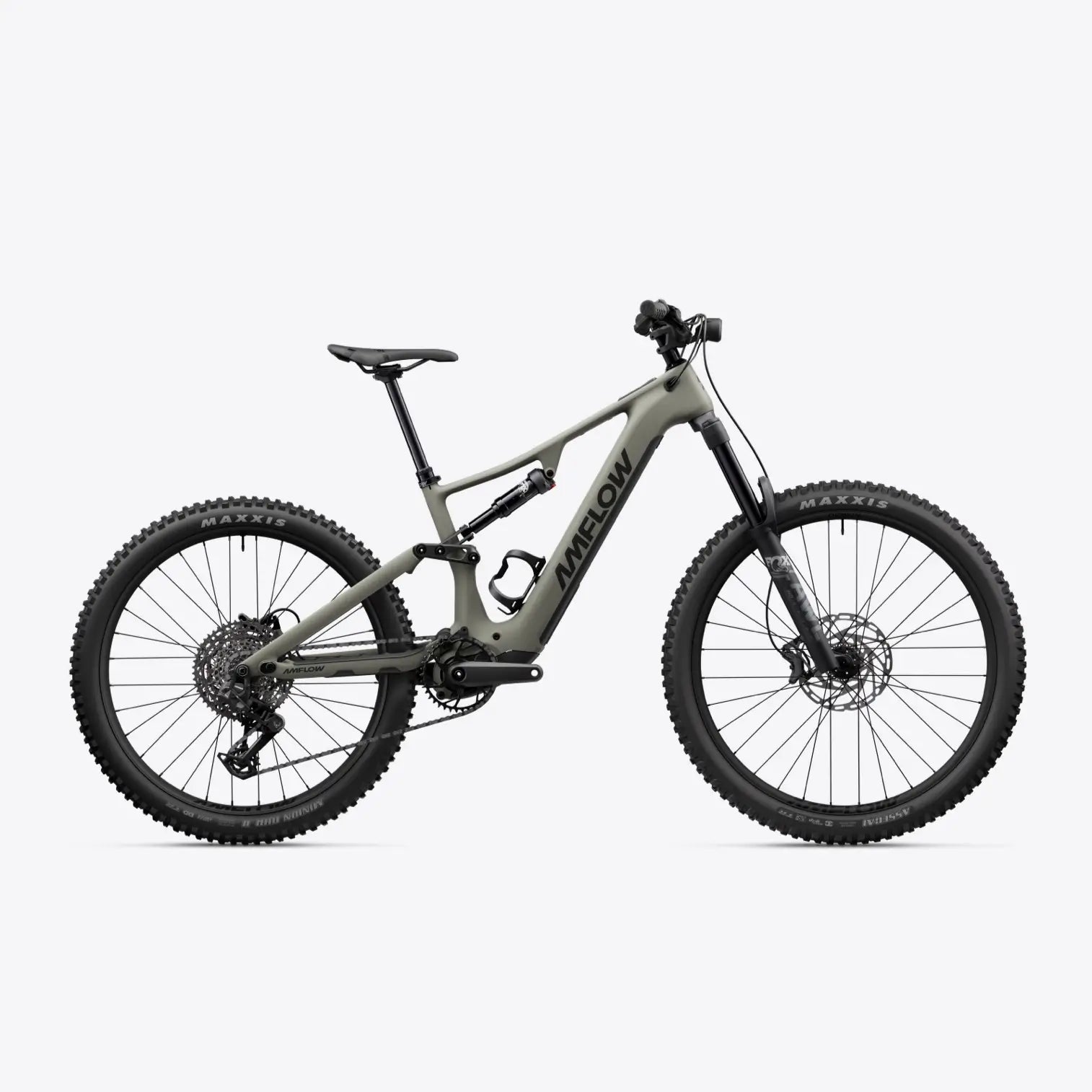

Amflow PR Carbon

Features

• Full carbon frame, approximately 2.9kg (Size M) — available in Moss Green
• Avinox M2 drive unit — 110N·m nominal torque, 125N·m peak torque; quiet, smooth power delivery
• 800Wh removable battery — charge in the bike or remove for swapping or home charging
• FOX AWL HD Sport fork (MY 2027) — 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, custom-tuned
• FOX Float Rhythm rear shock (MY 2027) — 210×55mm, LSR adjustment, custom-tuned
• 29-inch front / 27.5-inch rear (mullet) wheel setup on Amflow XMA-30 alloy rims with SAPIM E-Light spokes
• Maxxis Assegai 29×2.50 (3C MaxxGrip, EXO+, TR) front tyre and Maxxis DHR II 27.5×2.50 (MaxxTerra, DD, TR) rear tyre — tubeless ready
• Tektro TKD173 four-piston hydraulic disc brakes, 203mm rotors, Amflow custom spec
• SRAM S1000 Eagle Transmission electronic drivetrain — 38T chainring, 10-52T cassette, AXS Pod Controllers
• SmoothShift — shift gears while coasting, deeply integrated with the Avinox drive system
• Avinox 2-inch OLED Control Display — offline navigation, Apple Find My tracking, OTA updates, Bluetooth
• Auto mode and Boost mode for intelligent or maximum power assistance
• 40 adjustable geometry configurations — head tube angle, bottom bracket height and chainstay length all independently adjustable
• Amflow dropper post with adjustable travel shim (190mm / 210mm / 230mm depending on frame size)
• Includes 168W charger, Avinox front light, bottle cage, torque wrench, shock pump, pedals and clear frame protection film

Sizing

The Amflow PR Carbon is available in four frame sizes. The height ranges below are a useful starting point, but where sizes overlap, reach is the most important measurement for fit — a longer reach suits riders who prefer a more stretched, aggressive position, while a shorter reach works better for those who prefer to sit more upright.

• M — 157–173cm (5'2"–5'8") — Reach: 452mm, Stack: 626mm
• L — 173–183cm (5'8"–6'0") — Reach: 475mm, Stack: 637mm
• XL — 180–191cm (5'11"–6'3") — Reach: 500mm, Stack: 649mm
• XXL — 191–198cm (6'3"–6'6") — Reach: 527mm, Stack: 662mm
