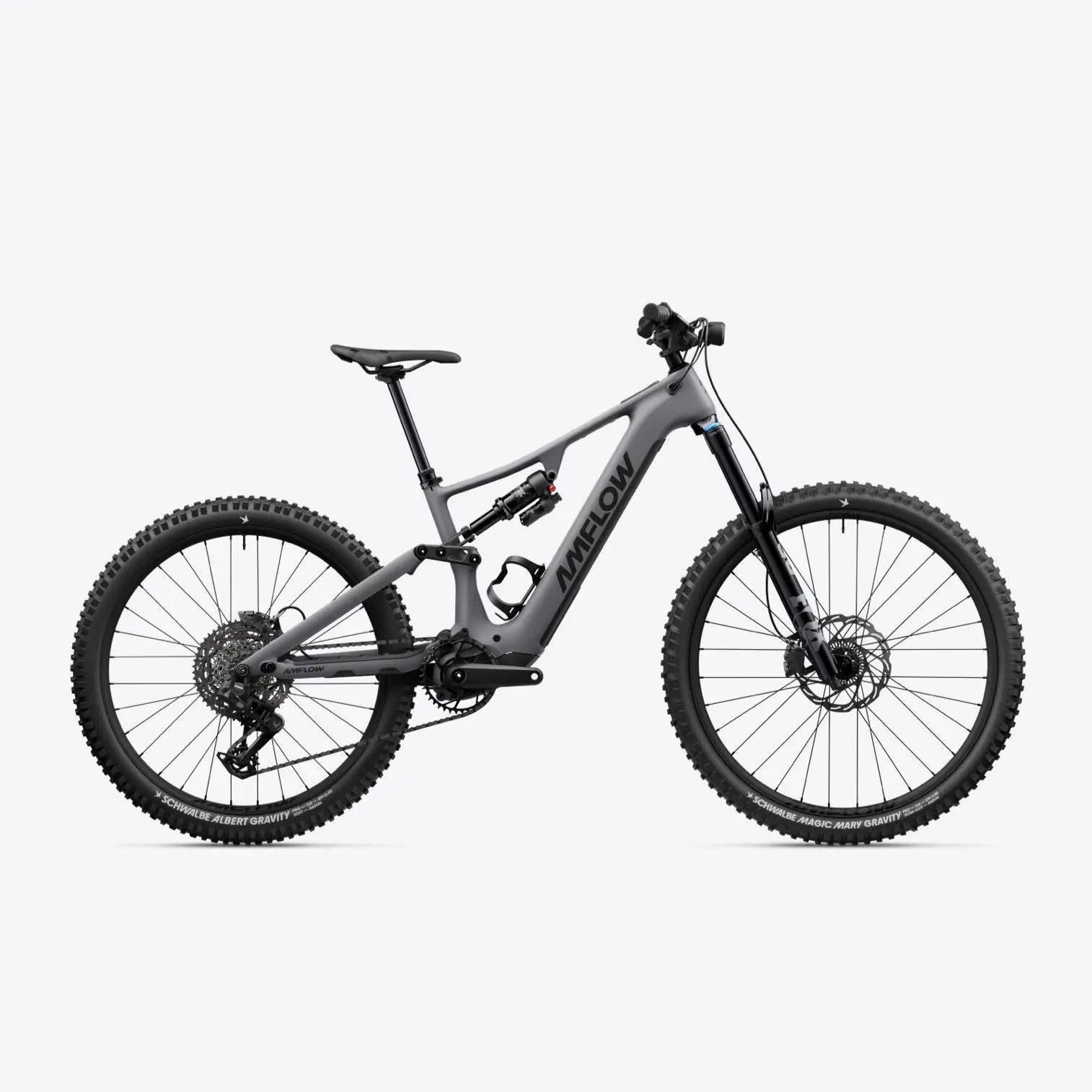

Amflow PR Carbon PRO

Features

• Full carbon frame, approximately 2.9kg (Size M) — available in Basalt Grey
• Avinox M2S drive unit — 130N·m nominal torque, 150N·m peak torque, up to 1500W peak power; 45dBA whisper-quiet operation
• 800Wh removable battery — charge in the bike or remove for swapping or home charging
• 508W fast charger included — charges to 80% approximately 3× faster than the standard 168W charger
• FOX 36 Performance fork (MY 2027) — 160mm travel, GRIP damper, Sweep/LSR adjustment, custom-tuned
• FOX Float X Performance rear shock (MY 2027) — 210×55mm, 2-position lever, LSR adjustment, custom-tuned
• 29-inch front / 27.5-inch rear (mullet) wheel setup on Amflow XMA-30 alloy rims with SAPIM E-Light spokes
• Schwalbe Magic Mary Radial 29×2.5 (Gravity Pro, Ultra Soft, tubeless ready) front tyre and Schwalbe Albert Radial 27.5×2.5 (Gravity Pro, Addix Soft, tubeless ready) rear tyre
• Magura Gustav Pro four-piston hydraulic disc brakes, 203mm rotors
• SRAM S1000 Eagle Transmission electronic drivetrain — 38T chainring, 10-52T cassette, AXS Pod Controllers
• SmoothShift — shift gears while coasting, deeply integrated with the Avinox drive system
• Avinox 2-inch OLED Control Display — offline navigation, Apple Find My tracking, OTA updates, Bluetooth
• Auto mode and Boost mode for intelligent or maximum power assistance
• 40 adjustable geometry configurations — head tube angle, bottom bracket height and chainstay length all independently adjustable
• Amflow dropper post with adjustable travel shim (190mm / 210mm / 230mm depending on frame size)
• Includes Avinox front light, bottle cage, torque wrench, shock pump, pedals and clear frame protection film

Sizing

The Amflow PR Carbon Pro is available in four frame sizes. The height ranges below are a useful starting point, but where sizes overlap, reach is the most important measurement for fit — a longer reach suits riders who prefer a more stretched, aggressive position, while a shorter reach works better for those who prefer to sit more upright.

• M — 157–173cm (5'2"–5'8") — Reach: 452mm, Stack: 626mm
• L — 173–183cm (5'8"–6'0") — Reach: 475mm, Stack: 637mm
• XL — 180–191cm (5'11"–6'3") — Reach: 500mm, Stack: 649mm
• XXL — 191–198cm (6'3"–6'6") — Reach: 527mm, Stack: 662mm
