Amflow TL Carbon

Amflow TL Carbon

£3,199.00
£0.00 £3,199.00
Sale Enquire to Order
Tax included.
Size

To pay by Klarna, add to cart.

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

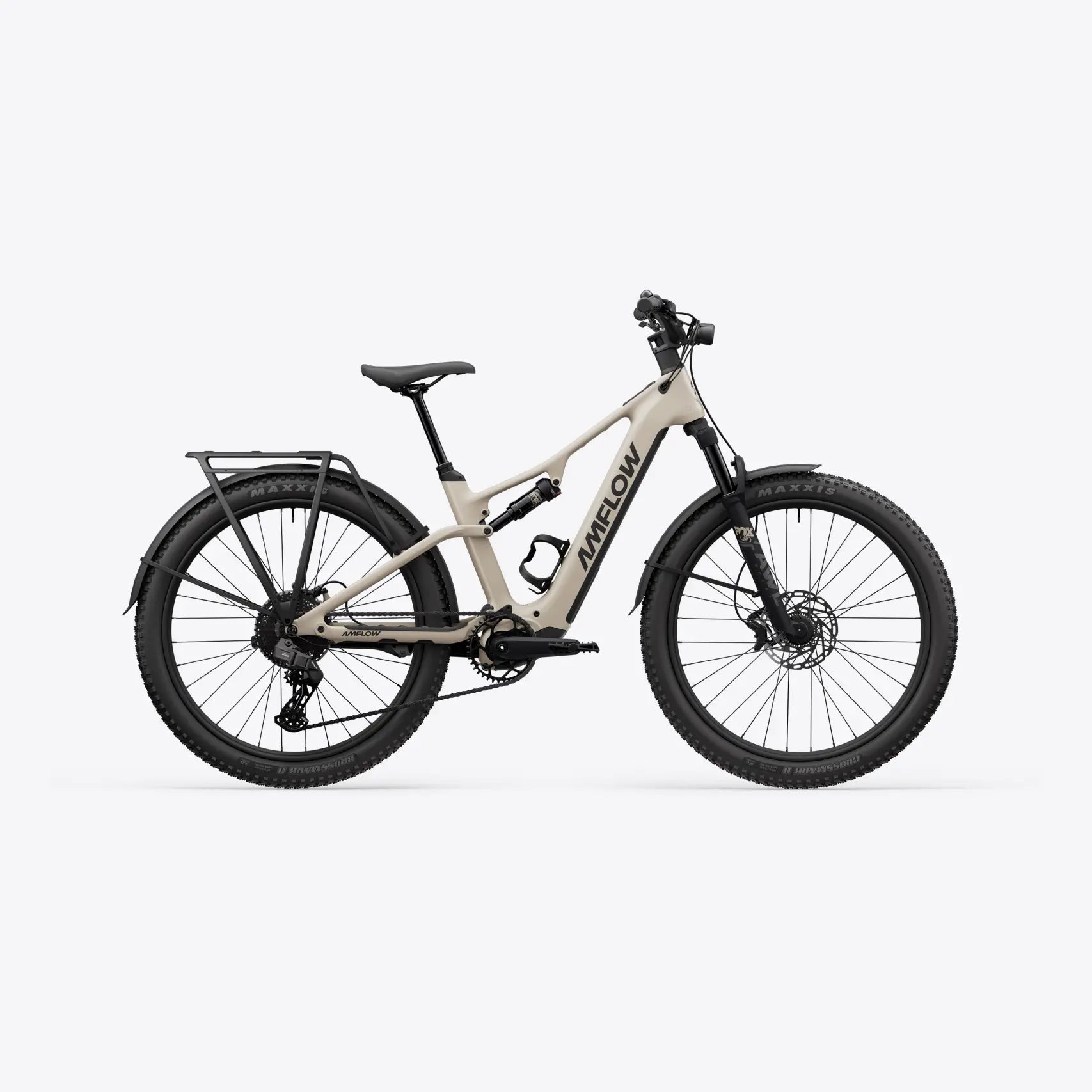

The Amflow TL is a lightweight full suspension SUV e bike built for riders who want one bike for trails, touring and everyday riding. The 2.9 kg full carbon frame keeps the bike agile and responsive, while the 120 mm front and 105 mm rear FOX co developed suspension smooths out rough ground in the city, on gravel or on forest tracks. The Avinox M2 drive unit delivers up to 1100 W peak power and 125 Nm torque for steep climbs, heavy loads and long distance riding. With a 200 kg total weight rating, modular mounting points, SmoothShift electronic shifting and smart navigation, the Amflow TL is built for adventure, commuting and touring.

Frame

Amflow TL Carbon Frame

Silica Beige

Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels

Compatible With Front and Rear Mudguards

Compatible With Rear Rack and Front Rack

Compatible With Bike Trailers (Requires Trailer Thru-Axle)

Drive System

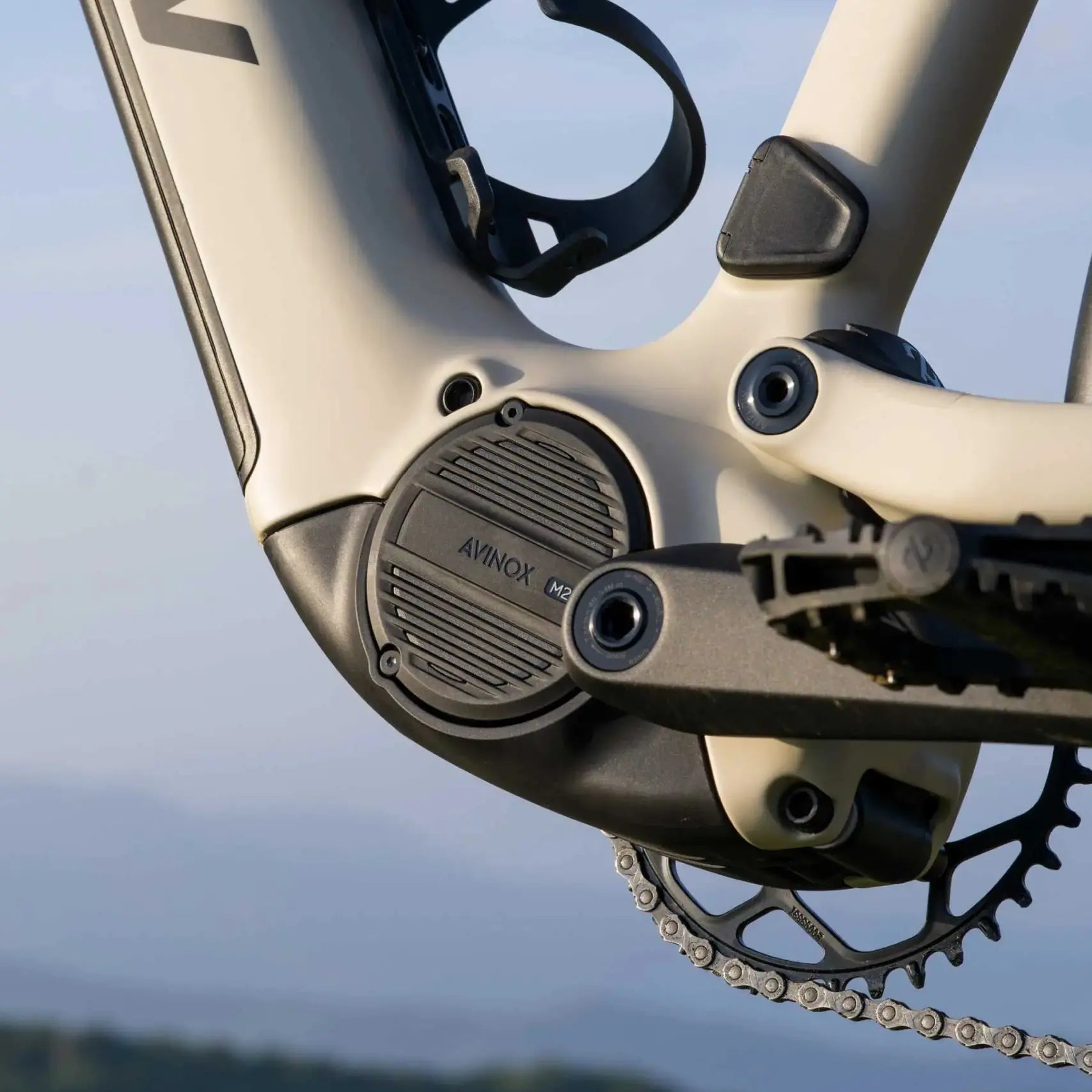

Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m

Screen: Avinox DPC100, 2-inch OLED Control Display

Battery: Avinox RS800 Battery (Removable)

Wireless Controllers: Avinox Wireless Controller × 2 (One on each side of the handlebar)

Charger: Avinox 4A Charger, 168W Output

Rear Shock

FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190×45mm

Fork

FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset

Drivetrain

Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur

Cassette: CS-M5243, 10-Speed, 11-43T

Chainring: Avinox Direct Mount Chainring (38T)

Chain: Avinox eGlide T Chain (10S/11S, 118 Links)

Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm)

Brakes

Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow

Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox

Wheels

Front Wheel:

Amflow HTA-25 Front Wheel (27.5″)

Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Rim: Alloy, 27.5″, 25mm Inner Width, 32H

Hub: Alloy, 15×110mm Thru-Axle, 32H, 6-bolt



Rear Wheel:

Amflow HTA-25 Rear Wheel (27.5″)

Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Rim: Alloy, 27.5″, 25mm Inner Width, 32H

Hub: Alloy, 12×148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub

Tires

Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Handlebar

Amflow Touring Handlebar

S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise

L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise

Grips

Amflow Enduro Grip 2

Stem

Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)

Saddle

Amflow Touring Saddle

Dropper Post

Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm)

S/M Size Frame: 150mm

L/XL Size Frame: 170mm

Accessories

Avinox Front Light

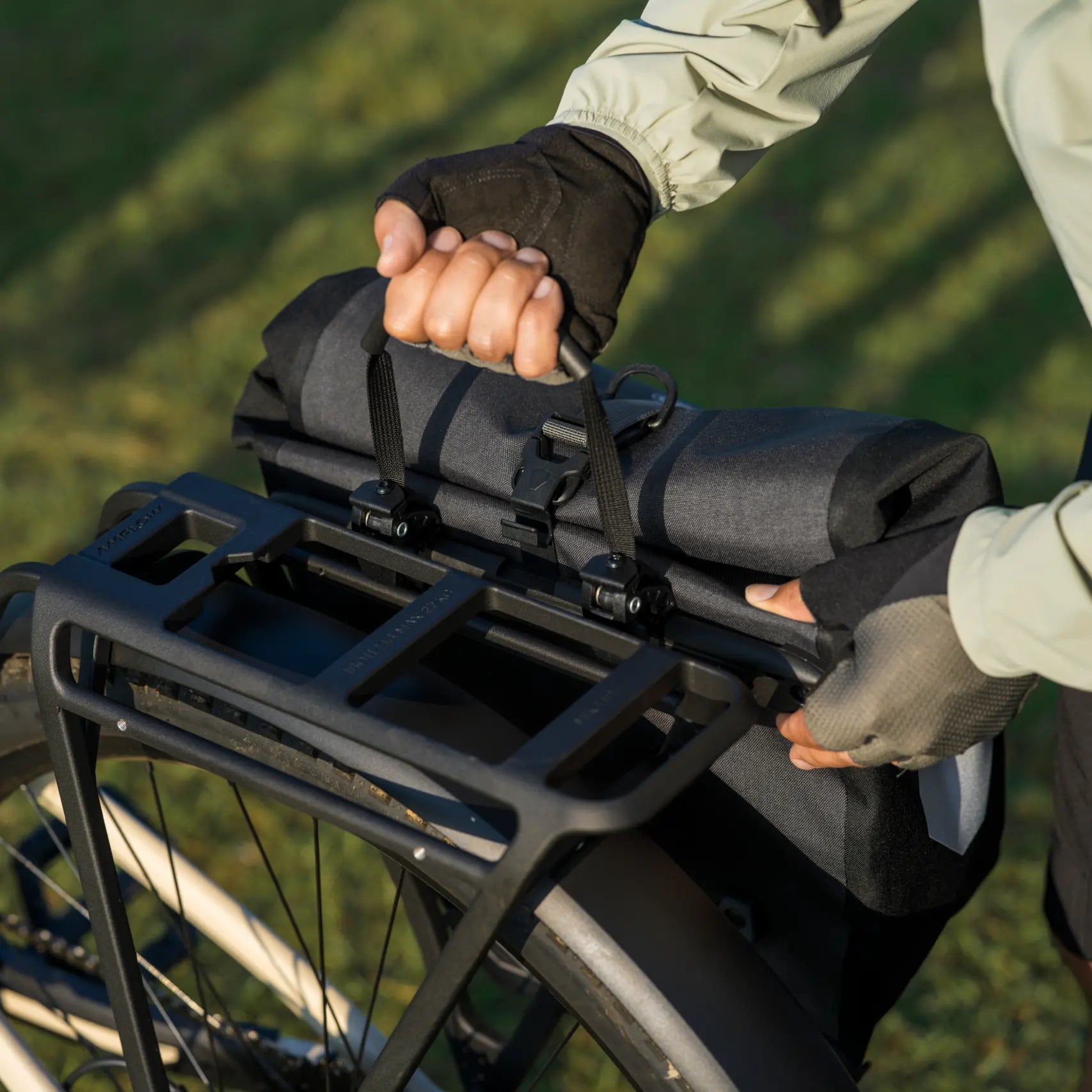

Amflow Touring Rear Rack, Compatible With MIK HD Standard

Amflow Elite MTB Pedals

Amflow Bottle Cage

Front Mudguard, Rear Mudguard

Amflow Touring Kickstand (348mm)

Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)

Sate-lite M8 Rear Light With Integrated Reflector

Dropper Post Travel Reducing Spacer

Two Keys for Removable Battery

Torque Wrench
