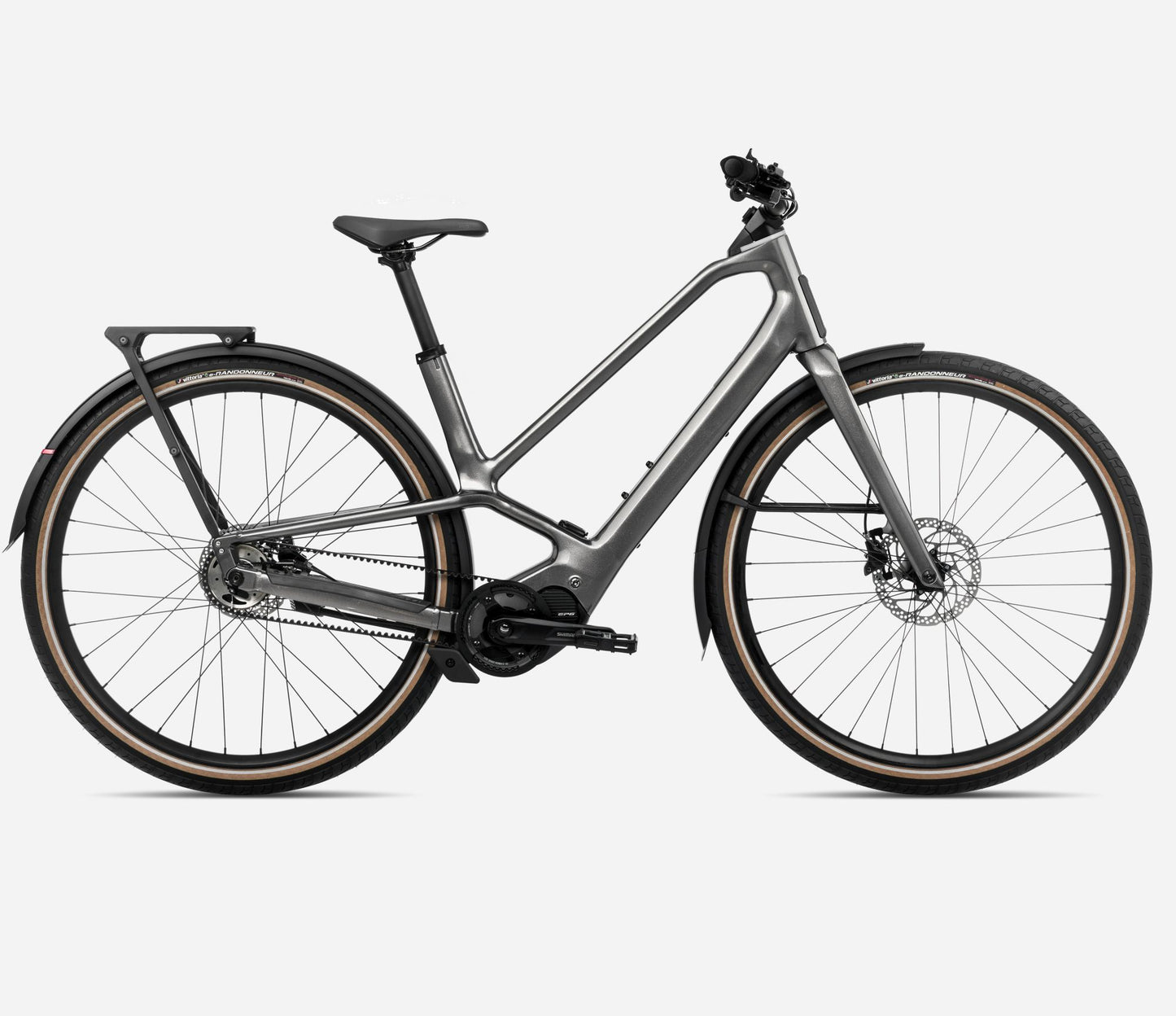

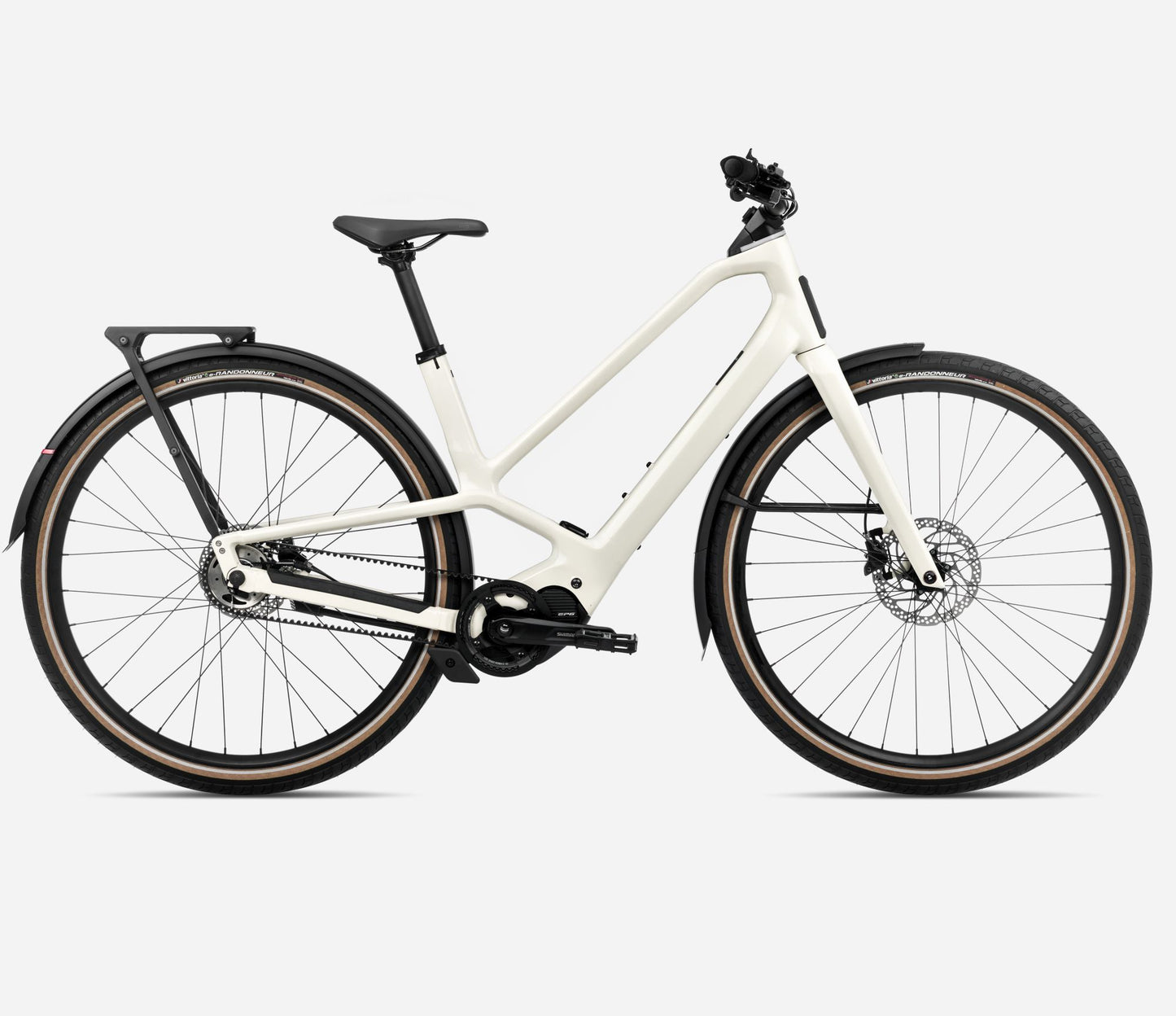

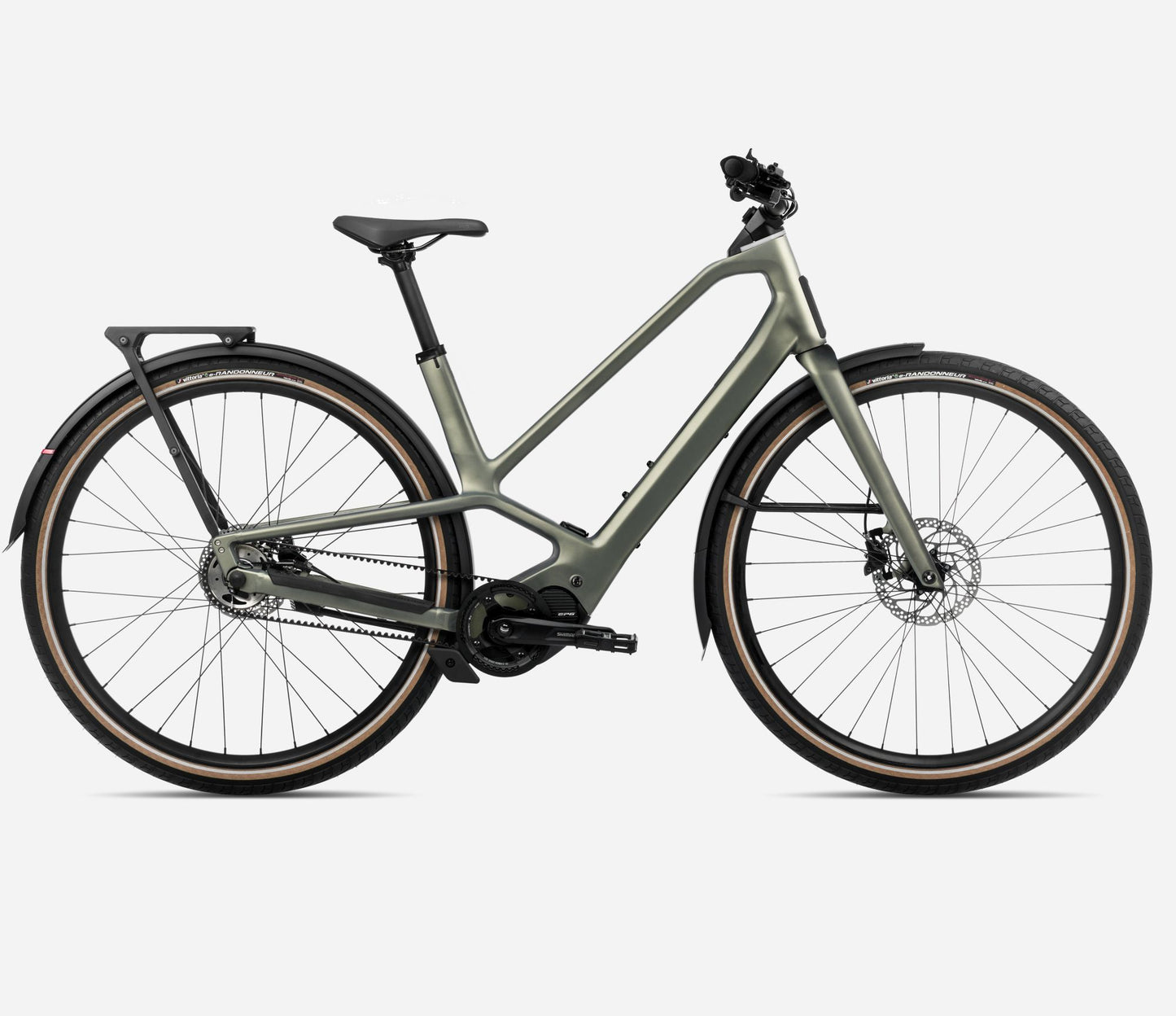

ORBEA DIEM 20

Diem 20, the powerful urban ebike, slots into your routine, making the A to B fun with 5 internal gears and a belt drive.

SPECIFICATIONS

FRAME
Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible

FORK
Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thru Axle12x100mm, Long mudguards compatible.

HEADSET
FSA 1-1/2" Integrated Aluminium Cup

BATTERY
Orbea Internal 630Wh (Optional 250 Wh Range Extender)

RANGE EXTENDER
N/A

MOTOR
Shimano EP600

CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A

REMOTE
EN600-L

CHAINRING
Gates CDX 42t w/chainguard

CRANK
Shimano Steps EM600

SHIFTERS
Microshift TN71 for Nexus Inter 5

CASSETTE
Gates CDX 34t for Shimano Inter 5e

REAR DERAILLEUR
Shimano Nexus Inter-5

CHAIN
Gates CDX Belt

HANDLEBAR
Orbea Urban, Integrated Light, Rise 54, Width 700

BRAKES
Shimano MT201 Hydraulic Disc

WHEELS
Alloy, Tubeless, 25c, 32H

TYRES
Vittoria e-Randonneur 50-622, Reflective band

PEDALS
VP-537 Black

FRONT CARRIER
N/A

REAR CARRIER
Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg

MUDGUARD
Curana Apollo Orbit 60mm

FRONT POSITION LIGHT
Orbea integrated, USB-C charging point

FRONT LIGHT
Supernova Starstream Pure, Low Beam

REAR LIGHT
Orbea Fender integrated, with alert light

CHAINGUARD
Gates CDS

QUICK STAND
Orbea Diem Integrated

BELL
Knog OI Classic

SEATPOST
Alloy 31.6x300mm Offset 0

SADDLE
Selle Royal Vivo Ergo

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
