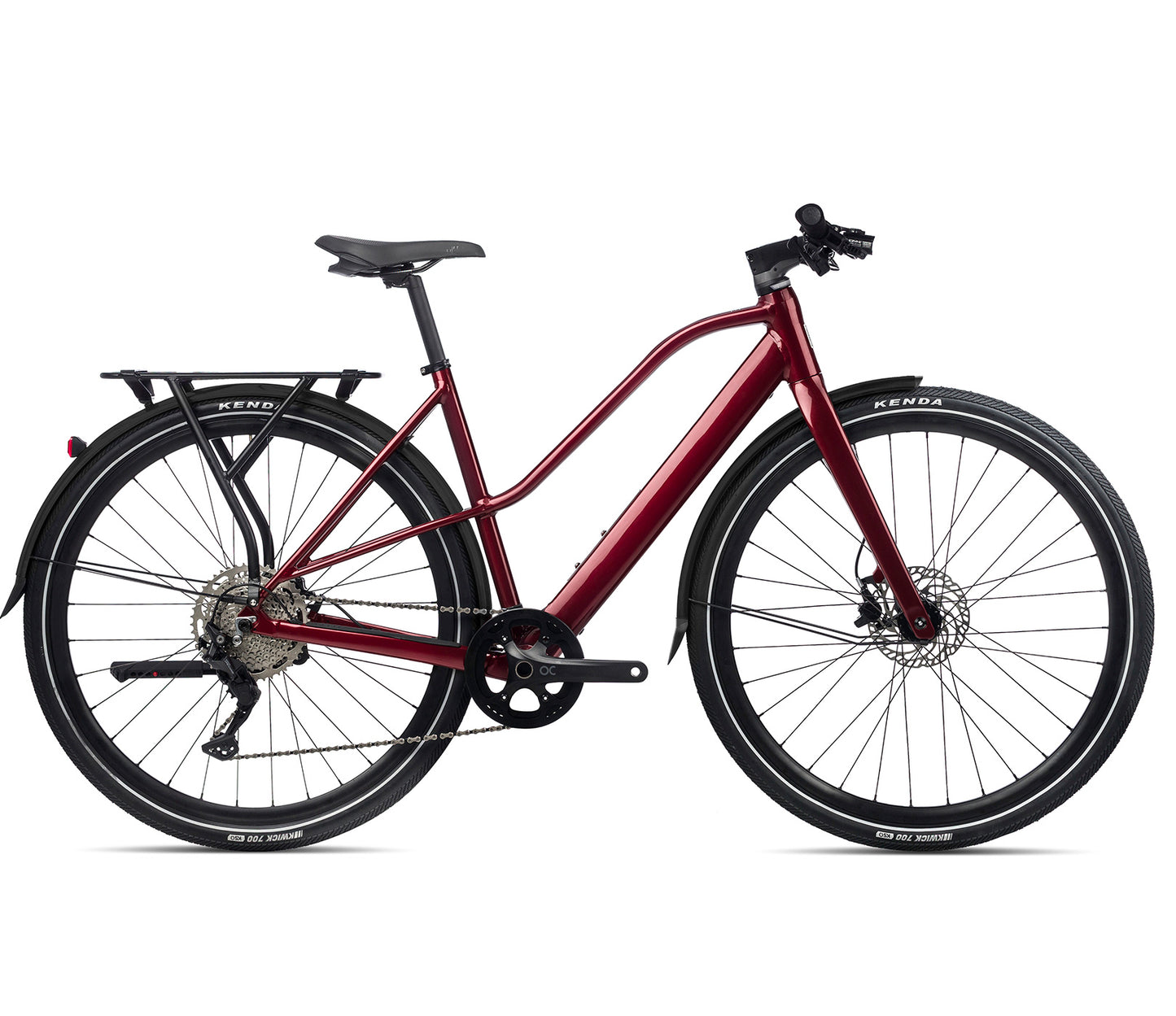

ORBEA VIBE MID H30 EQ

FRAME
Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible

FORK
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

HEADSET
Acros Alloy 1-1/2" Internal Cable Routing

CRANKSET
Forged alloy, 42t, w/Chainguard

SHIFTERS
Shimano Deore M4100

CASSETTE
Shimano CS-M4100 11-46t 10-Speed

REAR DERAILLEUR
Shimano Deore M5120 SGS Shadow Plus

CHAIN
KMC X10

HANDLEBAR
Alloy ,31.8mm, Rise 12mm, 700mm

STEM
Alloy forged, -6º, ICR

BRAKES
Magura MT30 Hydraulic Disc Easy Route Connection

BRAKES CONFIGURATION
WHEELS
Alloy, Tubeless, 700c, 21c, 32H

TYRES
Kenda K1052 700x45C Reflective type+puncture protection

FRONT WHEEL AXLE
Orbea Thru Axle 12x100mm M12x2 P1 Hollow

PEDALS
VP-537 Black

REAR CARRIER
Orbea Vibe rear luggage carrier (Max:15Kg)

CARRIER ACCESSORIES
MUDGUARD
CURANA Apollo 55mm

FRONT POSITION LIGHT
Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.

FRONT LIGHT
Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens

REAR LIGHT
Lezyne FENDER STVZO

QUICK STAND
Ursus Mooi R90 rear alloy adjustable

BELL
Knog OI Classic

SEATPOST
Alloy, 27.2mm, Setback 20

SADDLE
Selle Royal Lift 1404 HRN 266x170mm

MOTOR
Mahle motor hub X35 Plus

BATTERY
Mahle 36V/6.9A 248Wh ANT+

RANGE EXTENDER
DISPLAY
CHARGER
Mahle X35

REMOTE
Mahle iWoc TRIO
