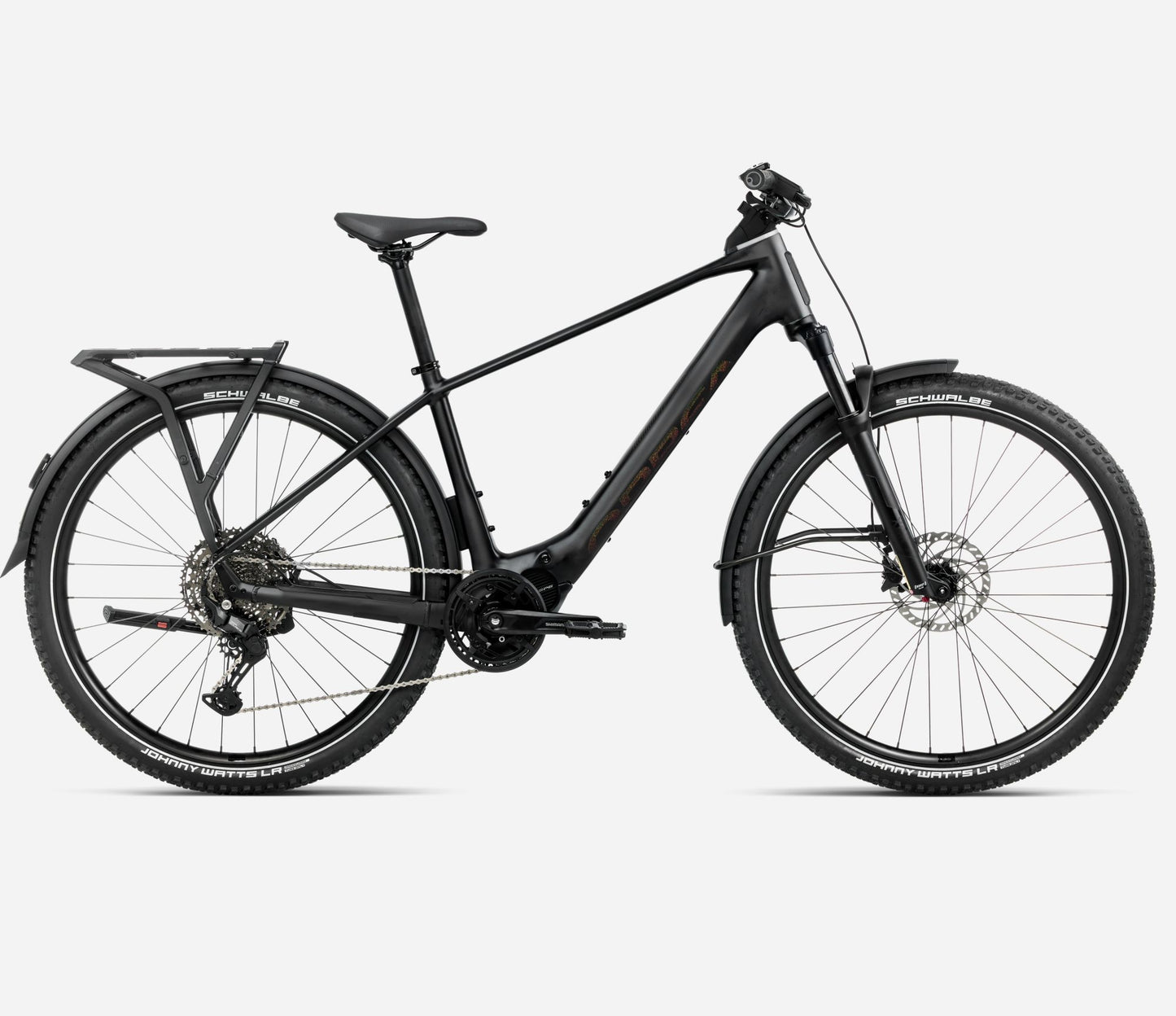

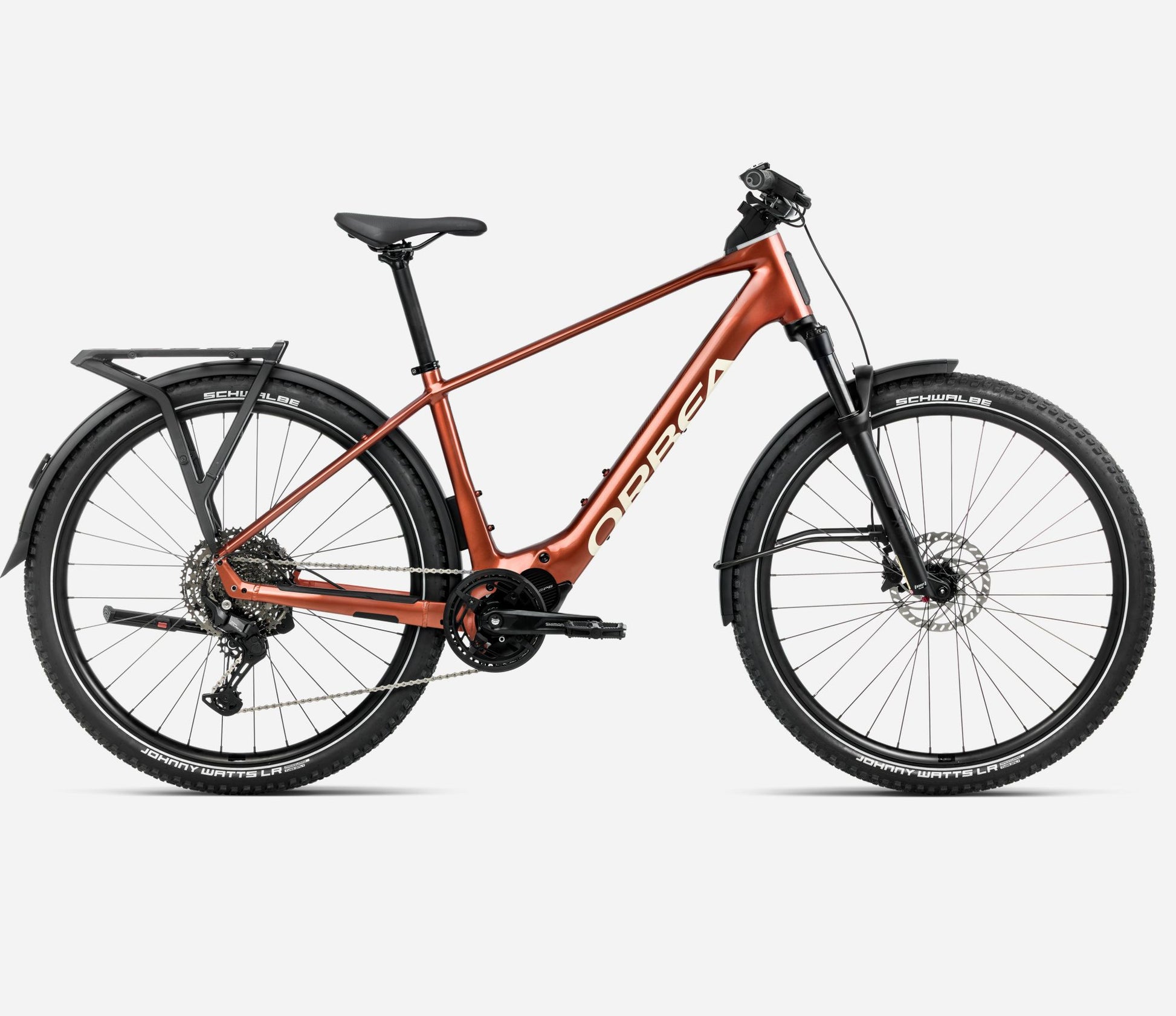

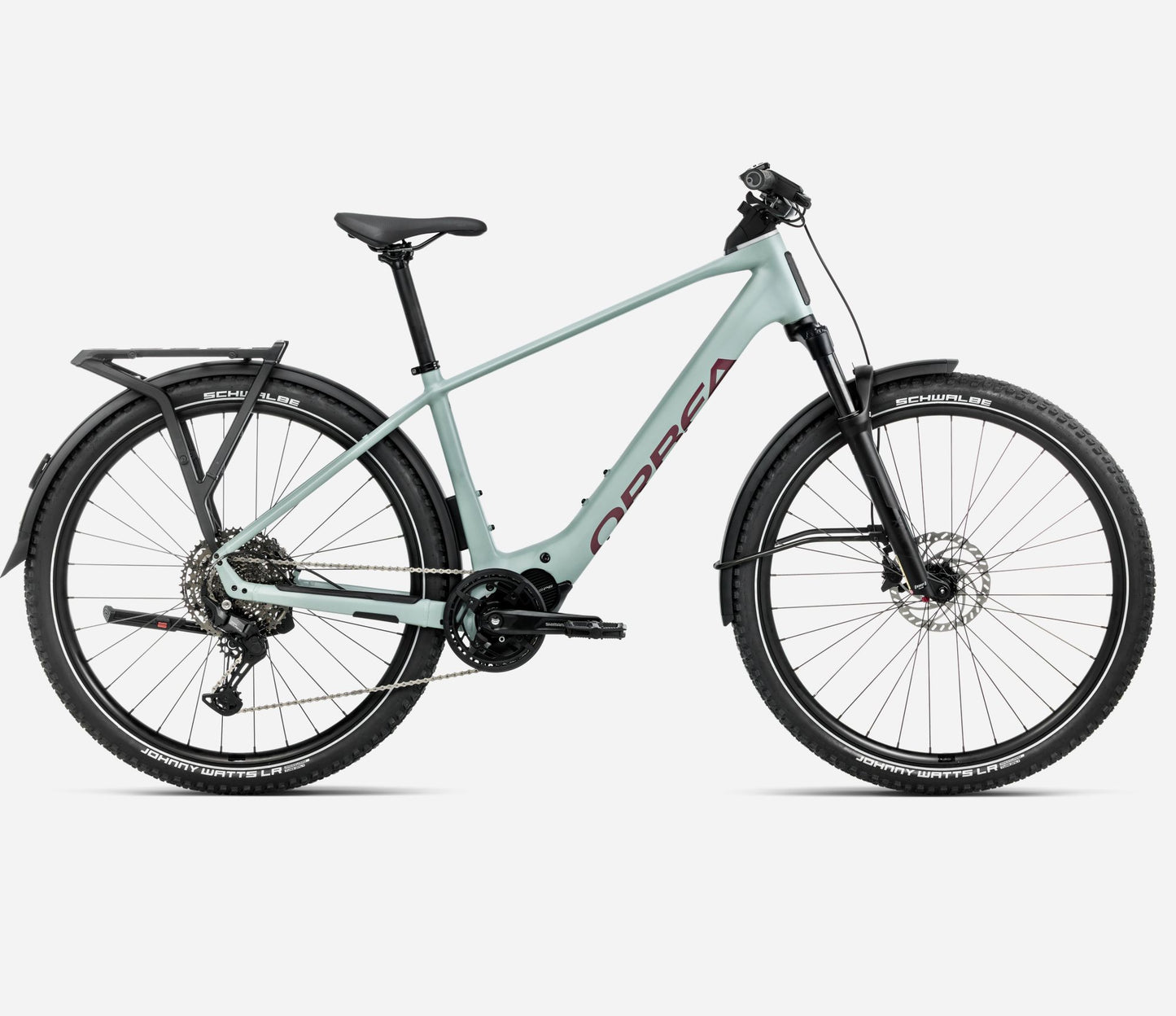

KEMEN ADV 20 2026

Specs

Frame
Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

Fork
SR Suntour XCR34 100mm Air Q15x110

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Battery
Orbea Internal 630Wh

Motor
Shimano EP600

Display
Shimano EN500

CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A

Chainring
Alloy 40t w/chainguard

Crank
Shimano Steps EM600

Shifters
Shimano Cues SL-U6000

Cassette
Shimano CS-LG400 11-50t 11-Speed

Rear derailleur
Shimano Cues U6000 GS Shadow

Chain
KMC eGlide

Handlebar
Orbea Urban, Integ. light, Backsweep 9, Rise 50, Width 720

Computer Mount
Smartphone mount SP Connect SPC+

Brakes
Magura AT2 Hydraulic Disc Easy Route Connection

Wheels
Alloy, 26c, 32H

Tyres
Schwalbe Johnny Watts LR, 60-622, Reflective Tape

Pedals
VP-892 Black with reflectors

Rear carrier
Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg

Mudguard
Curana Apollo Orbit 70mm

Front Position Light
Orbea integrated, USB-C charging point

Front light
Supernova Starstream Pure, Low Beam

Rear light
Supernova TL3 Z

Quick stand
Massload rear adjustable

Seatpost
Alloy, 31.6mm, Setback 0

Saddle
Selle Royal Vivo Ergo

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
