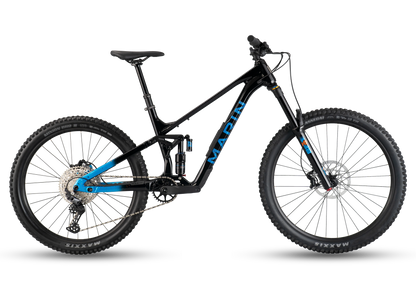

MARIN ALPINE TRAIL 1

MARIN ALPINE TRAIL 1

£2,399.00
£2,399.00
Sale Enquire to Order
Tax included.
Size

To pay by Klarna, add to cart.

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

Maximum enduro, zero compromises. Alpine Trail 1 is ready for it – slap turns, eat bumps and smash the rough. Shared with the range-topping XR, its Series 4 Aluminum frame has the same geometry adjustment, same 160mm MultiTrac LT suspension platform, same integrated downtube storage. It’s mixed wheel or full 29in compatible, has a UDH and ride-hushing chain slap protection. X-Fusion shocks, Shimano’s Deore drivetrain and TRP brakes are the rider’s choice.

Charge hard. Send big. Drift deep. Repeat.


SPECS:

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

Fork

Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110x10 Kabolt, 44mm Offset

Frame

Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Front Suspension

X-Funsion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle

Rear Suspension

X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune

Rim

New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

Hub Rear

Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body

Hub Front

Shimano HF-MT500B, 110x15mm, Centerlock

Spokes

14g Black Stainless Steel

Tires

Front: Maxxis Assegai MAXX GRIP, 29x2.5" EXO+ Rear: Maxxis Minion DHR II, MAXXTERRA, 27.5x2.5" DoubleDown, Tubeless compatible

Derailleur Rear

Shimano Deore, 12-Speed, SGS

Shift Lever

Shimano Deore, 12-Speed, SL-6100-IR

Crankset

Samox RAC61C, Forged Alloy, 32T, 55mm CL, 165mm

Bottom Bracket

Samox BSA Threaded

Chain

KMC X-12 Silver and Black

Cassette

Shimano, Deore M6100 12-Speed, 10-51T

Brakes Front

TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor

Brakes Rear

TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor

Brake Levers

TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem

Marin 3D Forged Alloy, 35mm

Grips

Marin Grizzly Lock-On

Headset

FSA Custom Headset, Adjustable HTA Design

Seatpost

TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm

Saddle

Marin Speed Concept

Extras

Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
