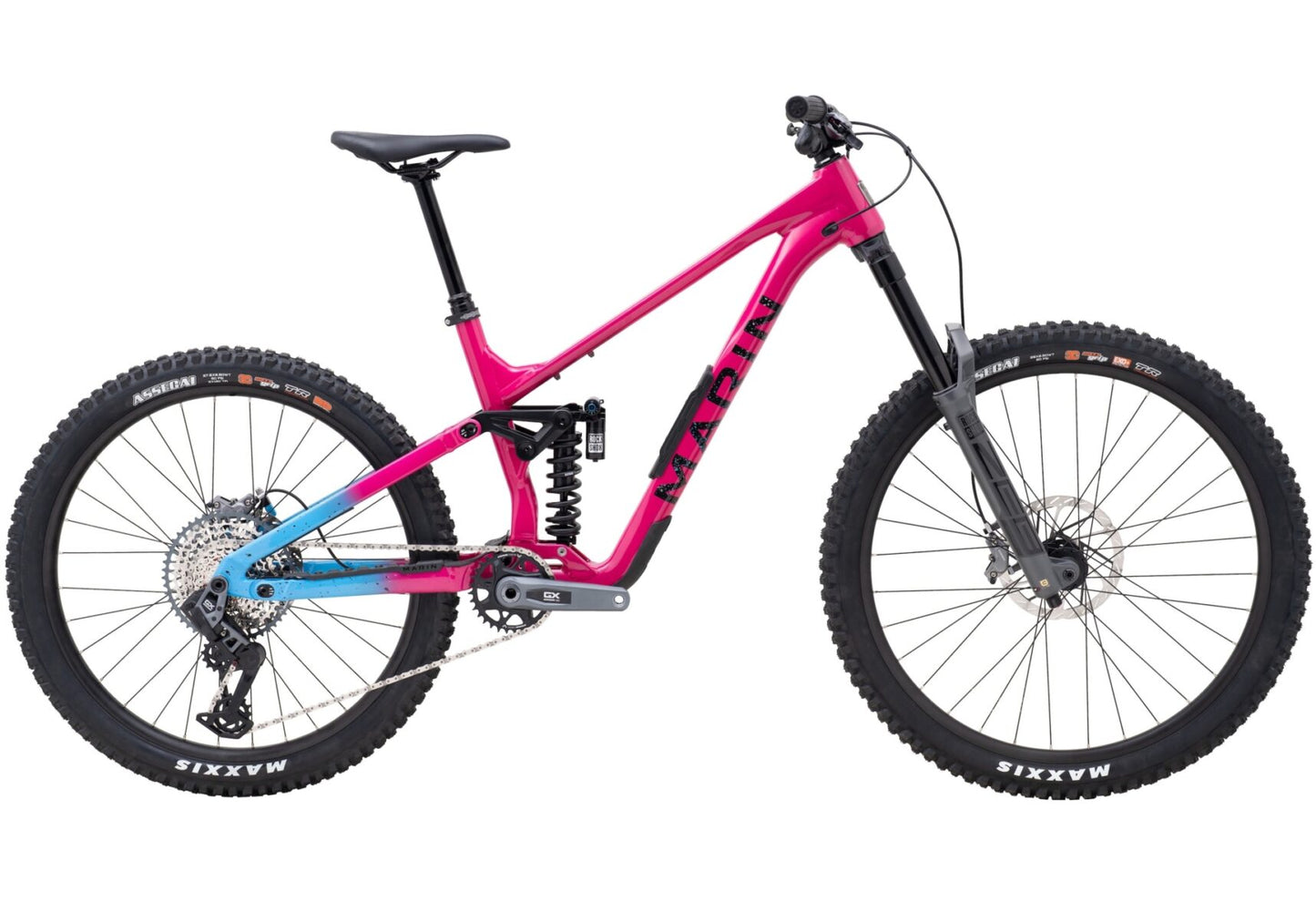

MARIN ALPINE TRAIL XR AXS 2024

The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.

Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.

"XR" = "Xtra Rad" here at Marin, and we pulled out all the stops with the XR AXS take on the Alpine Trail. Not only did we grace the bike with Ultimate-level RockShox suspension, but took the drivetrain up a notch with SRAM's GX Eagle AXS wireless 12-speed drivetrain. SRAM's Code Bronze brakes provide tenacious stopping power with their 4-piston calipers and 203mm rotors.

SPECIFICATIONS

• FRAME

  All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

• FRONT SUSPENSION

  RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset

• REAR SUSPENSION

  RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rates S/M: 350lbs, L/XL:400lbs

• RIM

  Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

• HUB REAR

  Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H

• HUB FRONT

  Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h

• SPOKES

  14g Black Stainless Steel

• TIRES

  Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible

• DERAILLEUR REAR

  SRAM GX Eagle AXS T-Type

• DERAILLEUR FRONT

  -

• SHIFT LEVER

  SRAM AXS POD MMX

• CRANKSET

  SRAM GX Eagle, 32T, 55MM CL, 170MM Length

• BOTTOM BRACKET

  SRAM DUB MTB 73

• CHAIN

  SRAM GX Eagle T-Type

• CASSETTE

  SRAM GX 1275 T-Type 10-52T

• BRAKES FRONT

  SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor

• BRAKES REAR

  SRAM Code Bronze 4-Piston Hydraulic, HSC 200mm Rotor

• BRAKE LEVERS

  SRAM Code Bronze Stealth Hydraulic

• HANDLEBAR

  Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

• STEM

  Marin CNC, 35mm Length, 35mm Bar Bore

• GRIPS

  Marin Grizzly Lock-On

• HEADSET

  FSA Custom, Adjustable HTA Design

• SEATPOST

  TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

• SADDLE

  Marin Speed Concept

• PEDALS

  -

• EXTRAS

  Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

• EXTRAS

  Downtube Storage Bag

Specifications, pricing, and availability are subject to change without notice.
