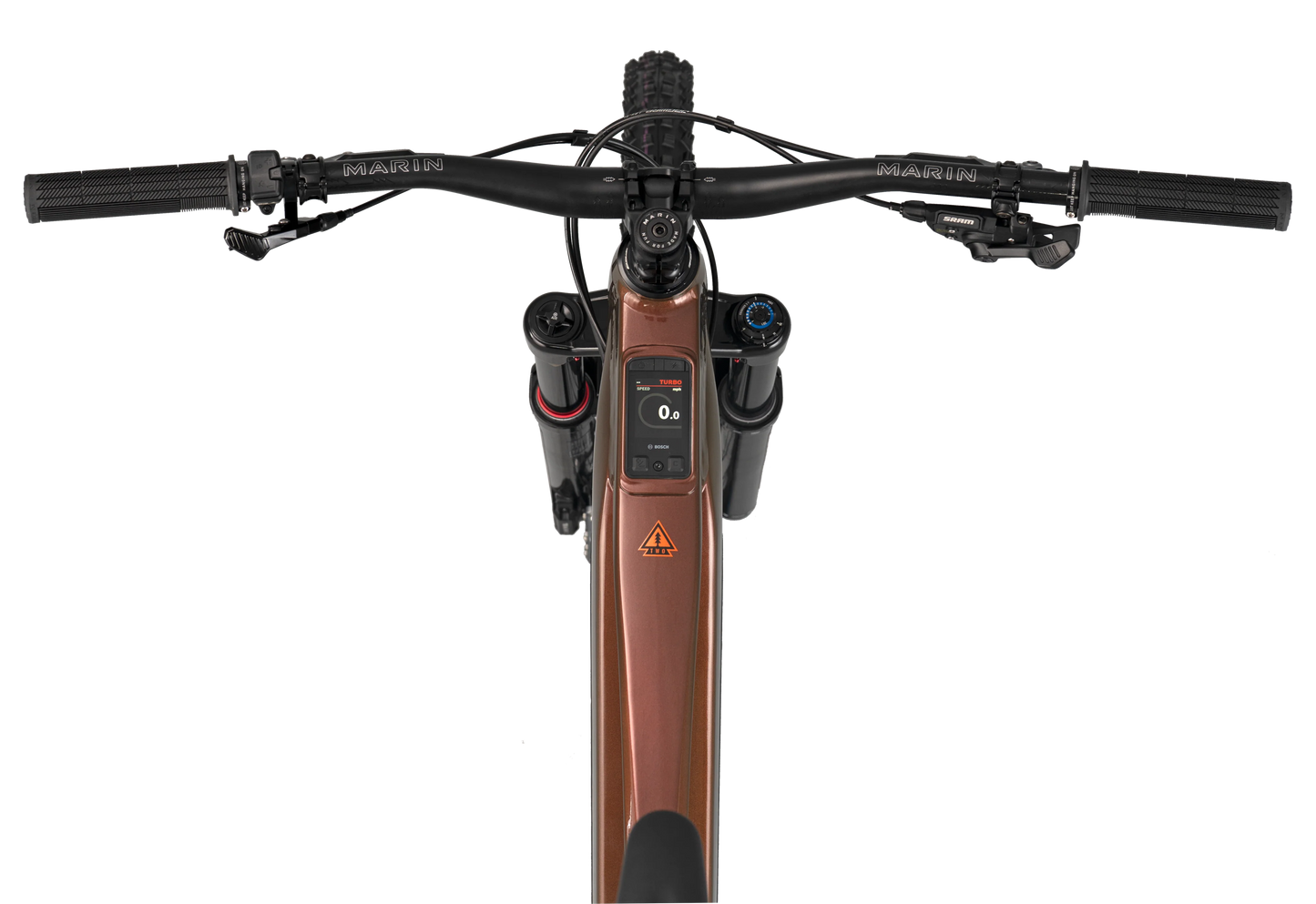

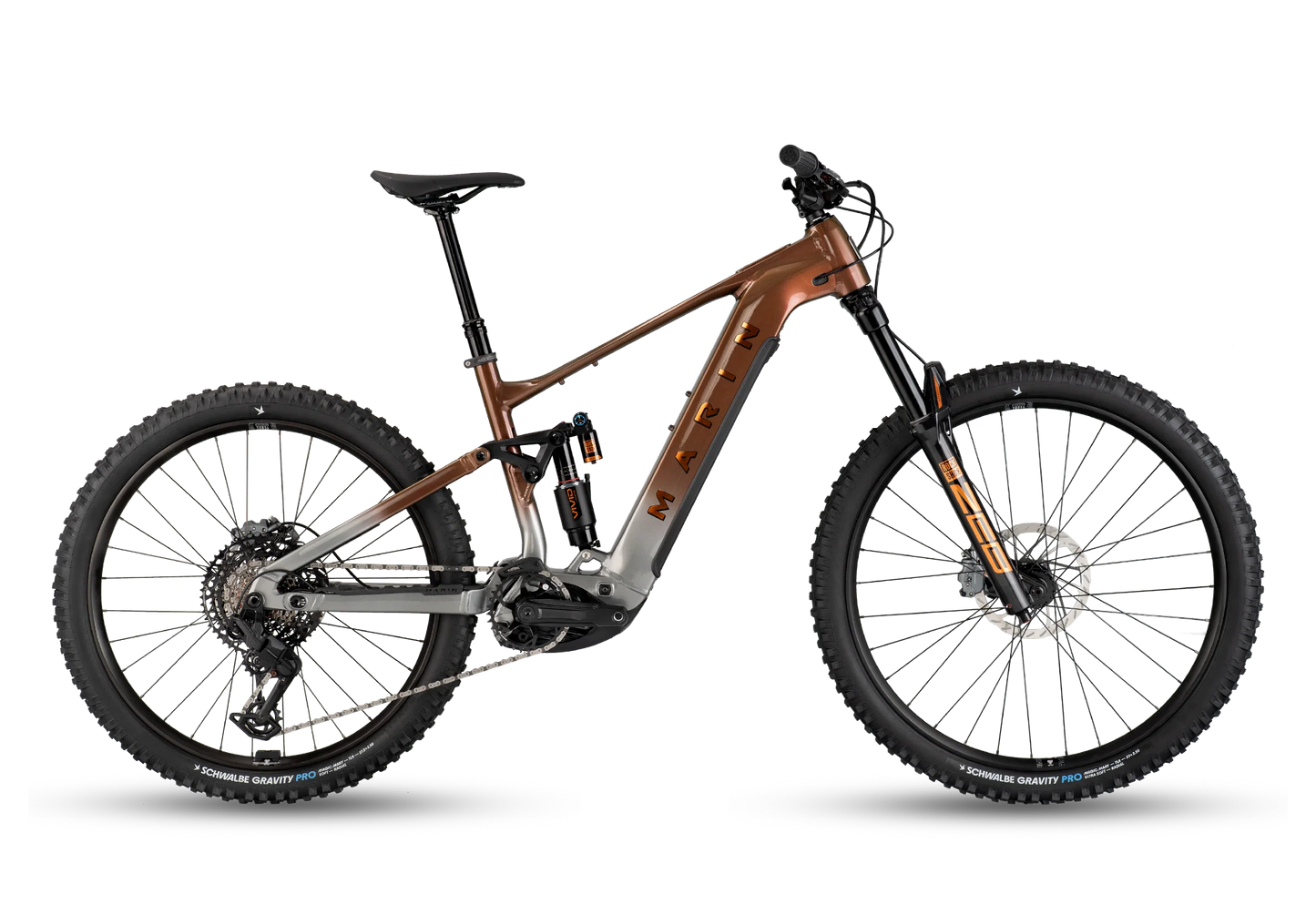

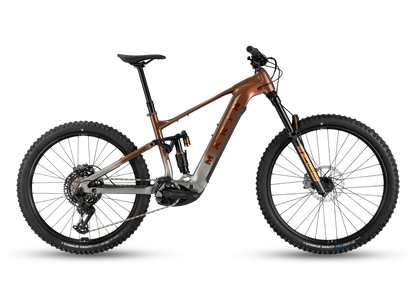

MARIN ALPINE TRAIL E2

The Alpine Trail E Bosch is our biggest, baddest beast of a bike family, with 170mm of suspension up front, 160mm of MultiTrac 2 travel at the rear and a Bosch CX drive unit at its core, the Alpine Trail E is constructed  for riders who challenge themselves with the steepest, most technical terrain, and maximum range for big days in the mountains.

Specifications
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

App
Bosch eBike Flow App

Range
115-55 miles/25-90km

Display
Bosch Kiox 400 Top Tube Display

Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

Battery
PT800 Horizontal

Frame
All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

Front Suspension
RockShox Zeb Select +, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset

Rear Suspension
RockShox Vivid Air Select +, 205x65, 30xM8 Lower Hardware, Custom Tune

Rim
WTB Sportterra Tough i30 Wheelset

Hub Rear
WTB Sportterra Tough i30 Wheelset

Hub Front
WTB Sportterra Tough i30 Wheelset

Spokes
WTB Sportterra Tough i30 Wheelset

Tires
Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5" Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"

Chainguide
e*thirteen e*Spec Chainguide

Derailleur Rear
SRAM Eagle 70

Shift Lever
SRAM Eagle 90, MMX Clamp

Crankset
Marin Forged eMTB Cranks, 34T, 150mm

Chain
SRAM Eagle 70 T-Type

Cassette
SRAM XG 1270, T-Type, 10-52T

Brakes Front
SRAM Maven Bronze, 4-Piston Hydraulic Disc , HSC 200mm Rotor

Brakes Rear
SRAM Maven Bronze, 4-Piston Hydraulic Disc , HSC 200mm Rotor

Brake Levers
SRAM Maven Bronze, MMX Clamps

Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Stem
New Marin CNC , 35mm Length, 35mm Bar Bore

Grips
Marin Grizzly Lock-On

Headset
FSA Custom Headset, Adjustable HTA Design

Seatpost
X-Fusion Manic HC, Alloy Lever, Travel Adjust 10mm increments, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm

Saddle
Marin Short Nose
