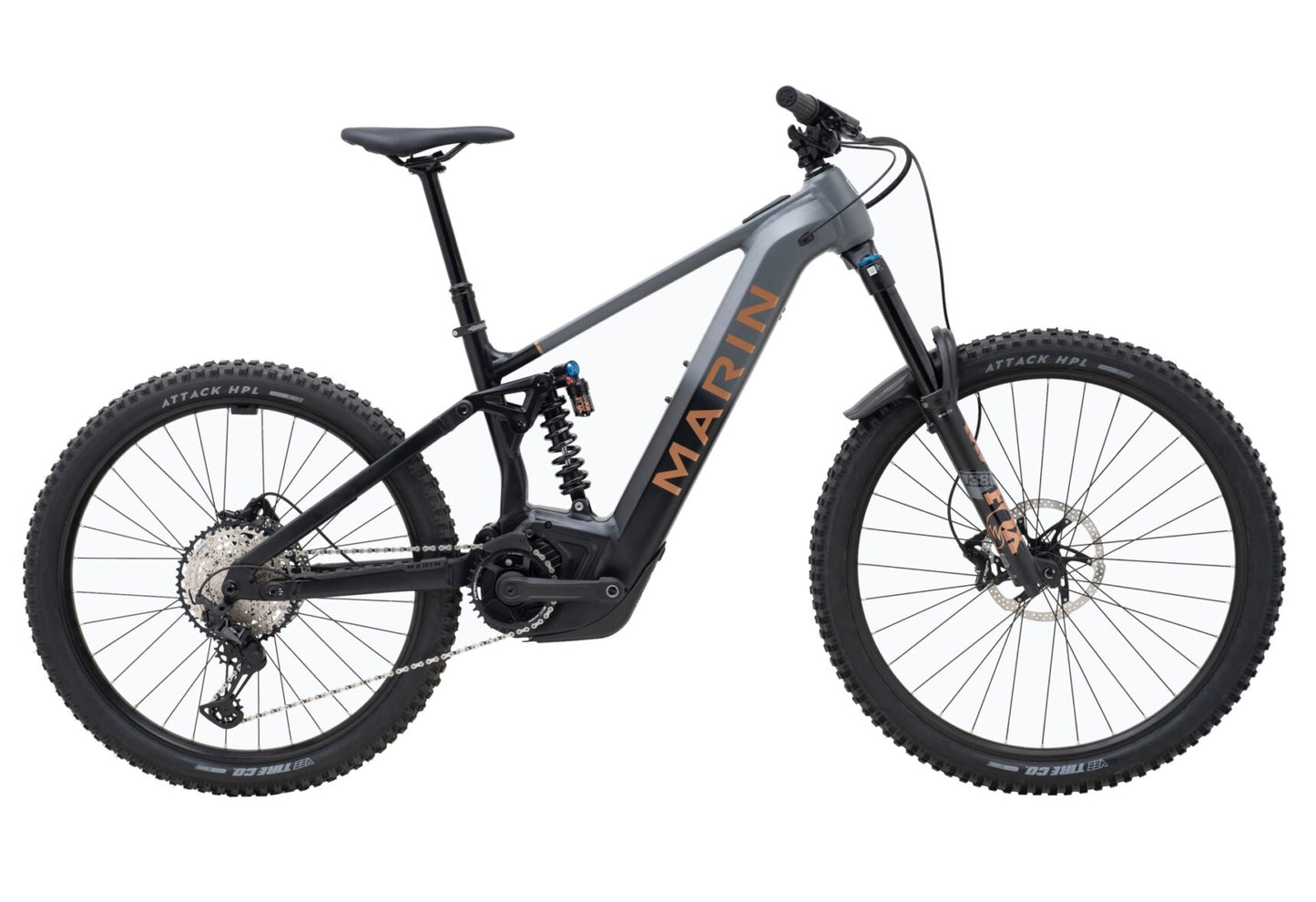

MARIN ALPINE TRAIL E2 BOSCH

MARIN ALPINE TRAIL E2 BOSCH

Regular price £6,385.00
Regular price £4,835.00 Sale price £6,385.00
Sale Enquire to Order
Tax included.
Size

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

The all-new Alpine Trail E (Bosch) is our biggest, baddest beast of a bike family. Moving one step beyond in capability from the Alpine Trail E models, the new Alpine Trial E Bosch eMTBs are constructed with all-new Series 4 aluminum MultiTrac 2 LT frames that feature significant upgrades for riders who challenge themselves with the steepest, most technical terrain, as well as those who require the maximum in range.

We've increased the travel by 10mm at both ends, now standing at 170mm (f) and 160mm (r), and relocated the pivots to the chainstays to deliver the suspension performance and tunability demanded by the longer travel. Riders have the ability to alter the head tube angle by +/- .75° by repositioning the lower headset cup while the bottom bracket height/chainstay length can be changed by the means of seatstay flip chips.

Bosch's Performance Line CX drive units twist out 85Nm of torque and are backed by large capacity 750Wh PowerTube batteries, nestled safely in the frame's downtube, giving you the largest battery in the Marin range for the biggest adventures.

The Alpine Trail E2 (Bosch) lights the wick with a premium Fox suspension pairing and Shimano's XT 12-speed drivetrain, along with our own proprietary CNC 35mm stem and Trail Bar combo.



SPECIFICATIONS

  • FRAME

    All New, Series 4 Alloy, 160mm MultiTrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

  • FRONT SUSPENSION

    Fox 38 Performance Elite, 170mm Travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

  • REAR SUSPENSION

    Fox DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 30mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb

  • RIM

    Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

  • HUB REAR

    Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

  • HUB FRONT

    Shimano FH-TC500, 110x15mm, Centerlock, 32H

  • SPOKES

    14g Black Stainless Steel

  • TIRES

    Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5"

  • DERAILLEUR REAR

    Shimano XT 12-Speed, SGS

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    Shimano SLX 12-Speed, I-Spec EV

  • CRANKSET

    e*thirteen e*spec Plus Cranks, 160mm Length

  • MOTOR

    Bosch Performance Line CX, 85Nm, 20MPH (US, NZ)/25 km/h (Rest of World) Top Assisted Speed

  • CHAIN

    KMC E12S, E-Bike Specific Chain

  • CASSETTE

    Shimano SLX M7100 Cassette, 12-Speed, 10-51T

  • BRAKES FRONT

    TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm, 2.3mm Thick

  • BRAKES REAR

    TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm, 2.3mm Thick

  • BRAKE LEVERS

    TRP DH-R EVO Hydraulic

  • HANDLEBAR

    Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

  • STEM

    Marin CNC, 35mm Length, 35mm Bar Bore

  • GRIPS

    Marin Grizzly Lock On

  • HEADSET

    FSA Custom Headset, Adjustable HTA Design

  • SEATPOST

    TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

  • SADDLE

    Marin Speed Concept

  • PEDALS

    -

  • BATTERY

    Bosch PowerTube 750 Wh

  • DISPLAY

    Bosch BRC3100 Systems Controller

  • SWITCH

    Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

  • EXTRAS

    e*thirteen e*Spec Chainguide

  • EXTRAS

    Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle

  • RANGE, CHARGING TIME

    31-78 miles/50-125km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 4 Hours (estimated, under ideal conditions)

Specifications, pricing, and availability are subject to change without notice.
