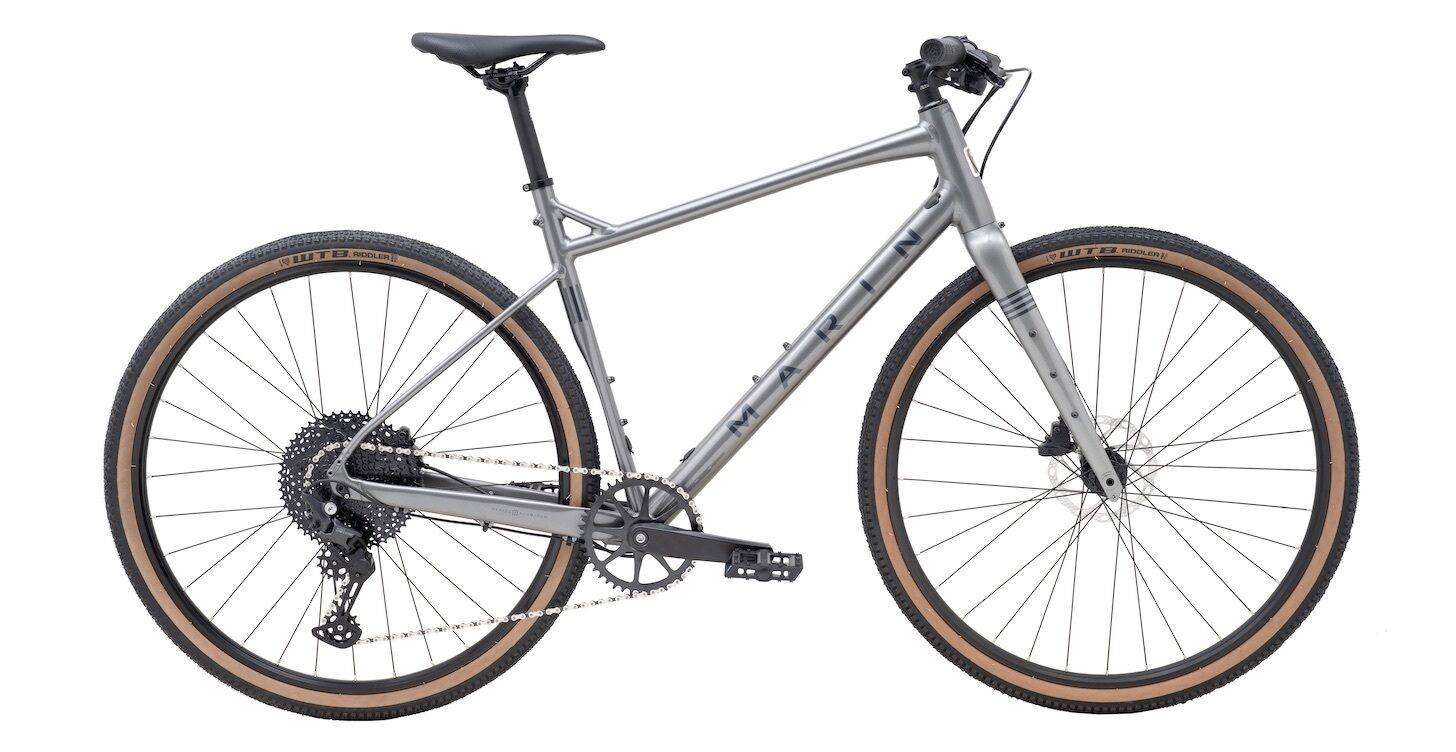

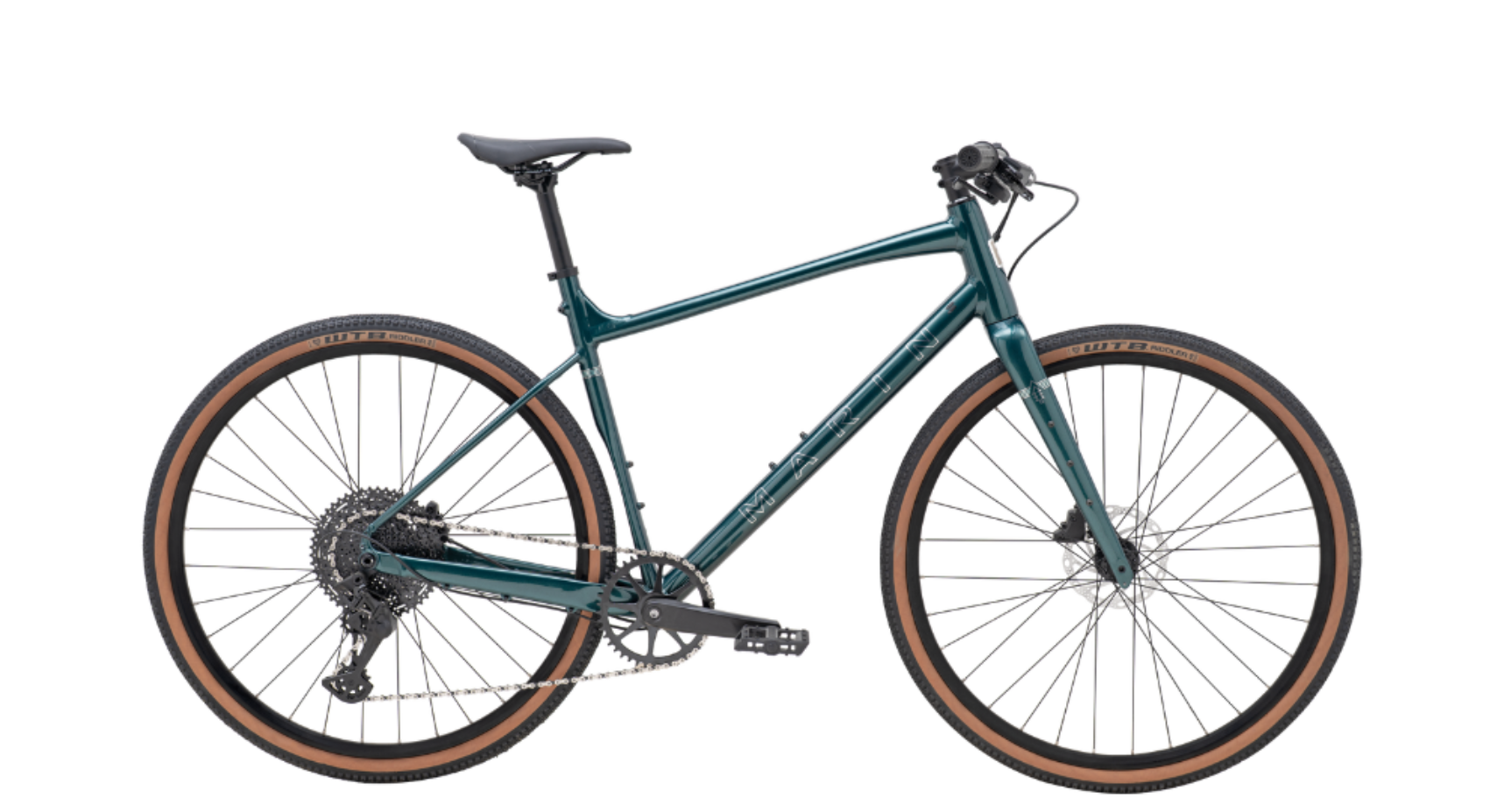

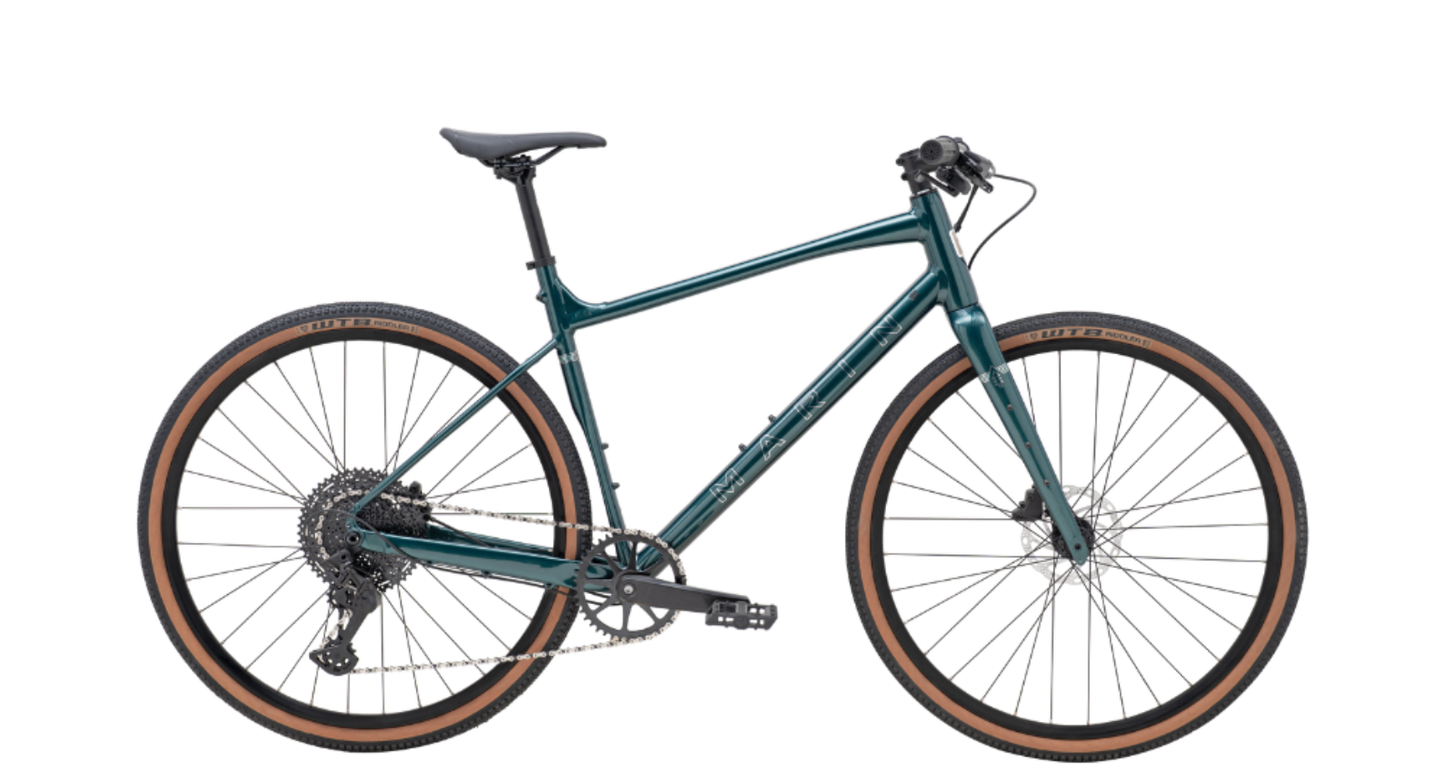

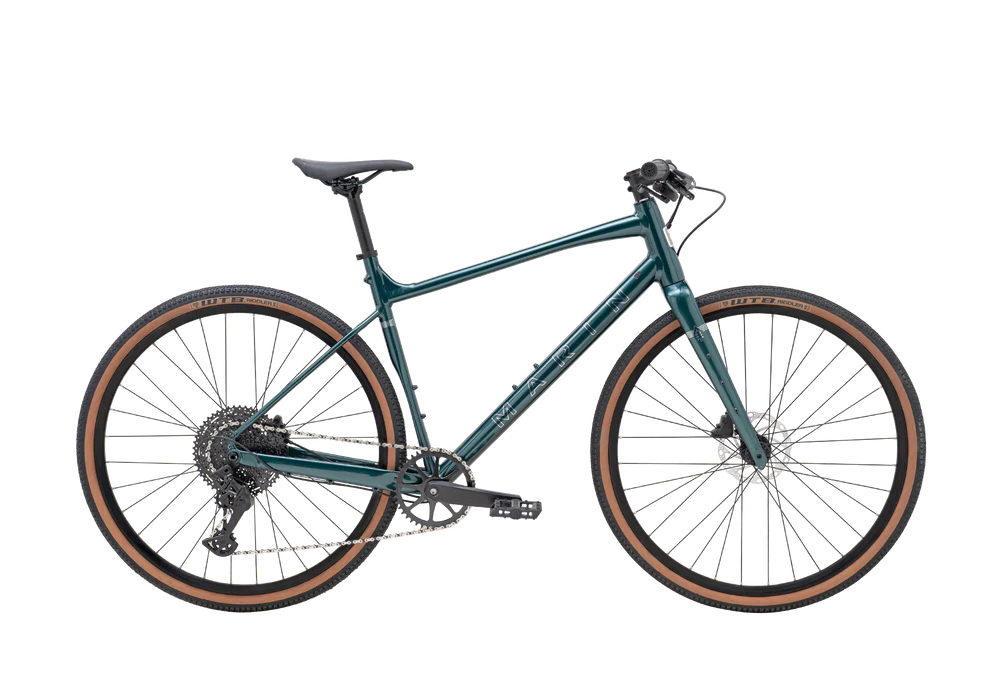

MARIN DSX 1 2025

LONG DISTANCE MIXED SURFACE COMMUTING

GRAVEL RIDING

ADVENTURE ON AND OFF-ROAD RIDING

Hopping up to a higher-spec Series 3 aluminum frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt-thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bikepacking bags. There’s also an 11-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

SPECIFICATIONS

FRAME
Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

RIM
Marin Aluminum Double Wall, 21mm Inner, Disc Specific

HUB REAR
Forged Aluminum Alloy, 142x12mm, Disc, 32H

HUB FRONT
Forged Aluminum, 100x12mm, Disc, 32H

SPOKES NIPPLES
14g Black Stainless Steel

TIRES
WTB Riddler, 700Cx45mm

DERAILLEUR REAR
Shimano Deore, RDM5100, 11-Speed

DERAILLEUR FRONT
-

SHIFT LEVER
Shimano Deore, SLM5100, 11-Speed

CRANKSET
Forged Aluminum, 42T Steel Narrow Wide Chainring

BOTTOM BRACKET
Sealed Cartridge

CHAIN
KMC X11

CASSETTE
Shimano, CSM5100, 11-Speed, 11-51T

BRAKES FRONT
Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor

BRAKES REAR
Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor

BRAKE LEVERS
Tektro Hydraulic

HANDLEBAR
Marin MiniRiser

STEM
Marin 3D Forged Alloy

GRIPS
Marin MTB

HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

SEATPOST
Marin Alloy

SADDLE
Marin DSX

PEDALS
Marin Oso OEM Nylon Platform

EXTRAS
Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
