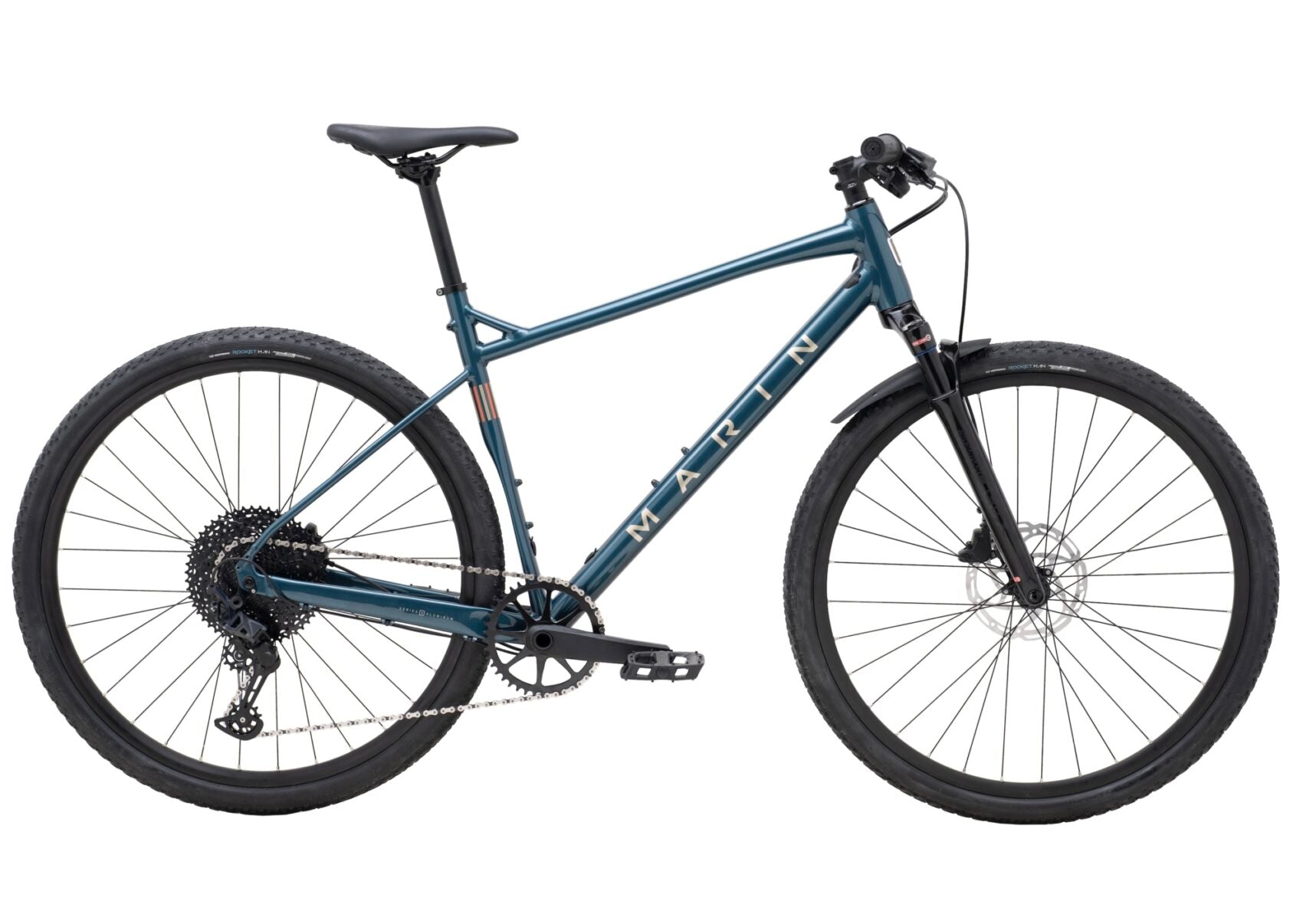

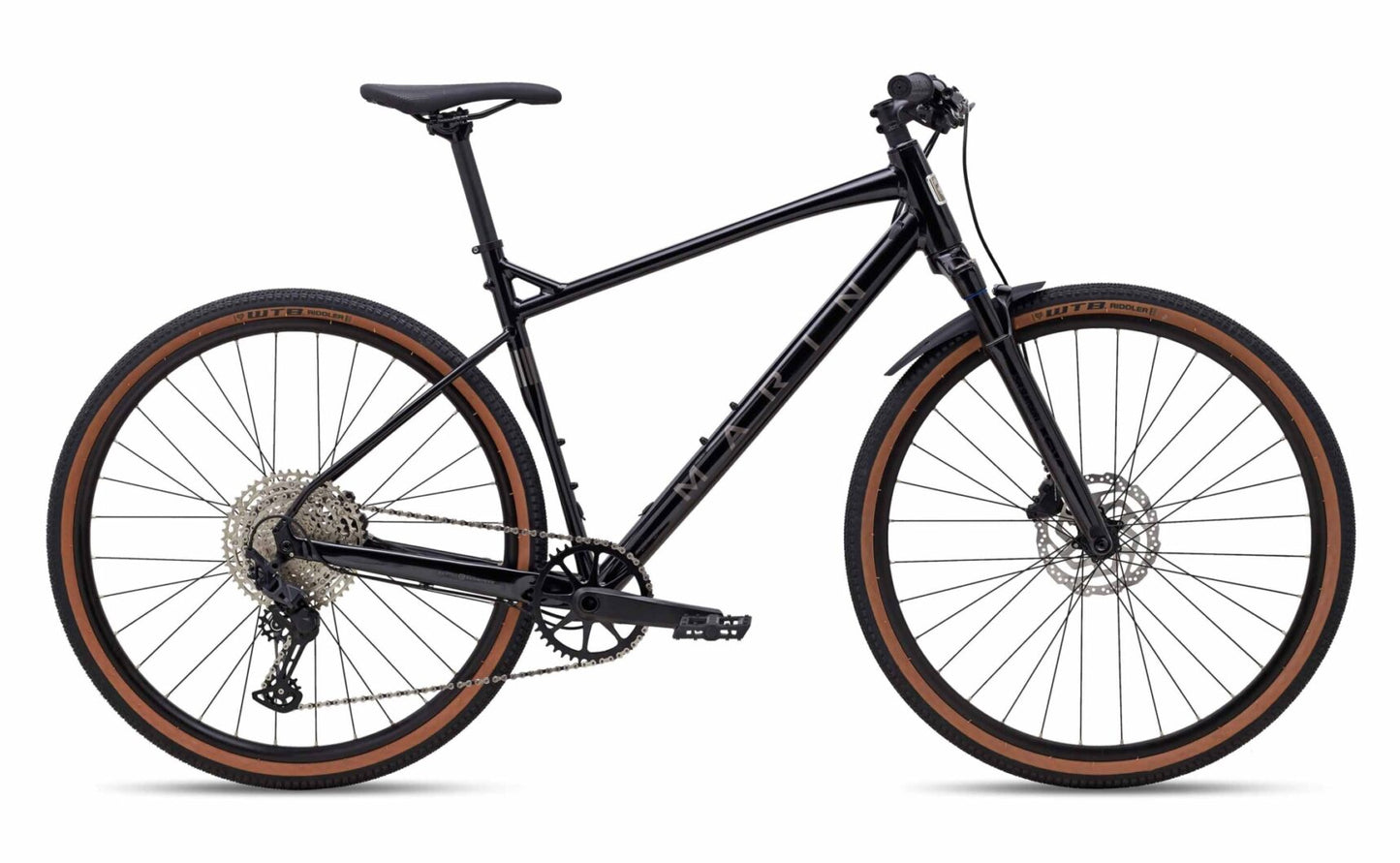

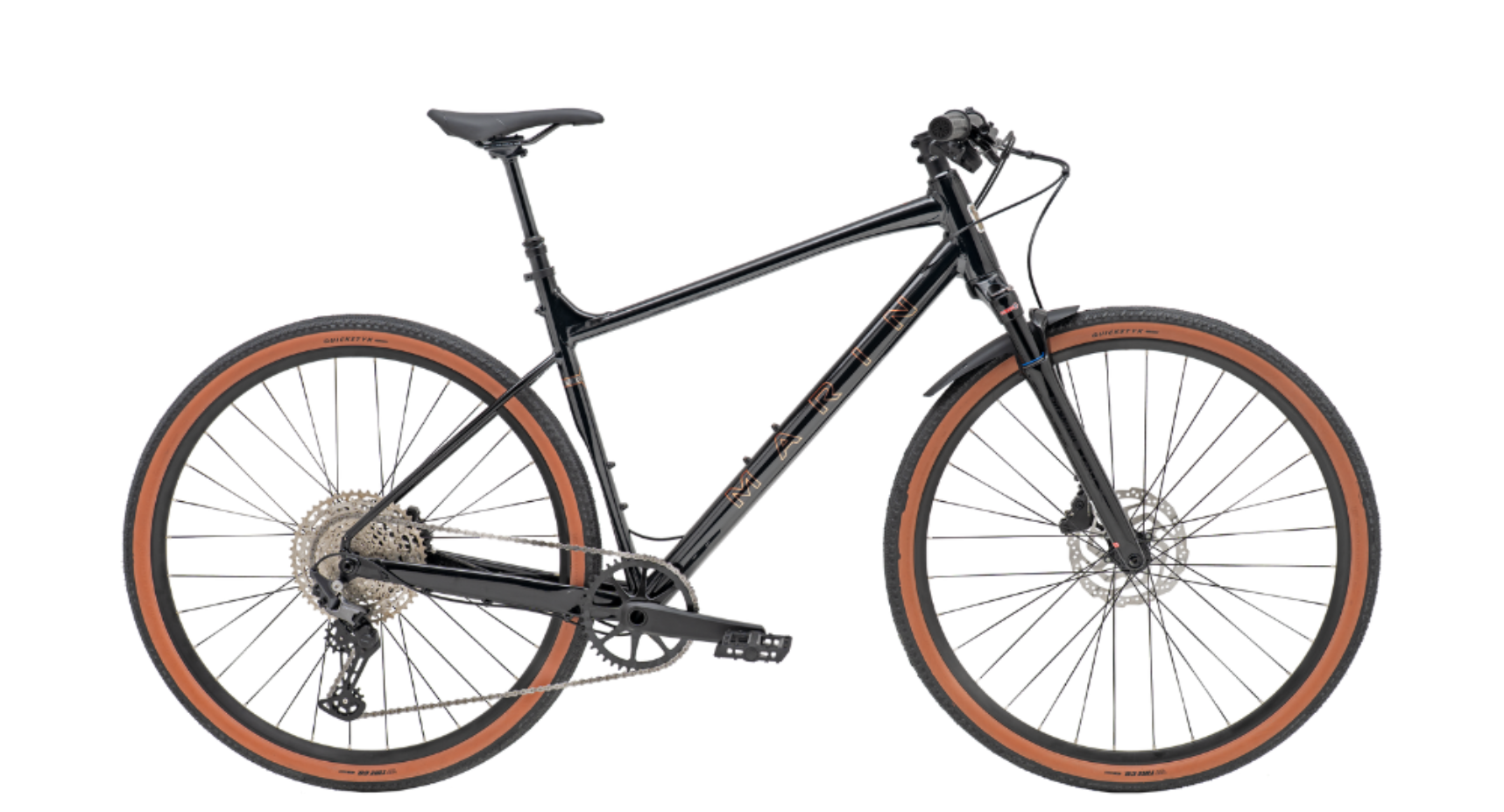

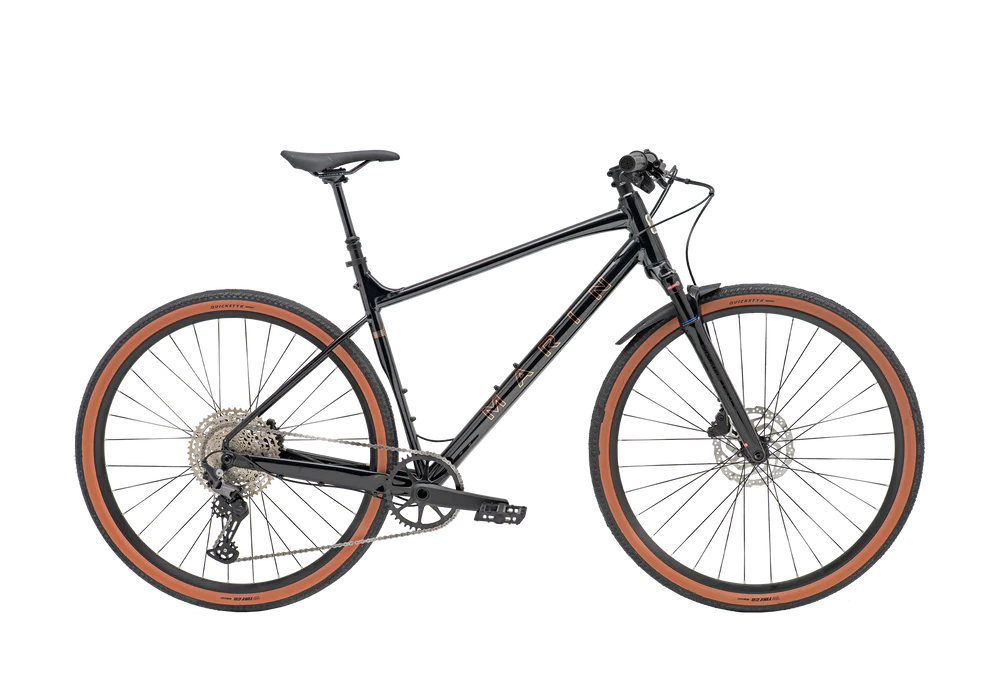

MARIN DSX FS 2024

LONG DISTANCE MIXED SURFACE COMMUTING

GRAVEL RIDING

ADVENTURE ON AND OFF-ROAD RIDING

Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.

SPECIFICATIONS

FRAME
Series 3 DSX, Suspension Adjusted Geometry, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

FORK
SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts

RIMS
Marin Aluminium Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

HUB, REAR
Forged Aluminium, 142x12mm, Disc Specific, 32H

HUB, FRONT
Forged Aluminium, 100x12mm, Disc, 32H

SPOKE, NIPPLES NIPPLES
14g Black Stainless Steel

TIRES
Vee Tire Co. Rocket Man, 700Cx44mm

DERAILLEUR, REAR
Shimano SLX, RD7100, 12-Speed

SHIFT LEVER
Shimano Deore, SLM6100, 12-Speed

CRANKSET
Forged Aluminium, 42T Steel Narrow Wide Chainring

BOTTOM BRACKET
Sealed Outboard Bearing

CHAIN
KMC X12

CASSETTE
SunRace, 12-Speed, 11-51T

BRAKE, FRONT
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

BRAKE, REAR
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

BRAKE LEVERS
Tektro Hydraulic

HANDLEBAR
Marin Mini Riser

STEM
Marin 3D Forged Alloy

GRIPS
Marin MTB

HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

SEATPOST
Marin Alloy

SADDLE
Marin DSX

PEDALS
Marin Oso OE Flat

EXTRAS
Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
