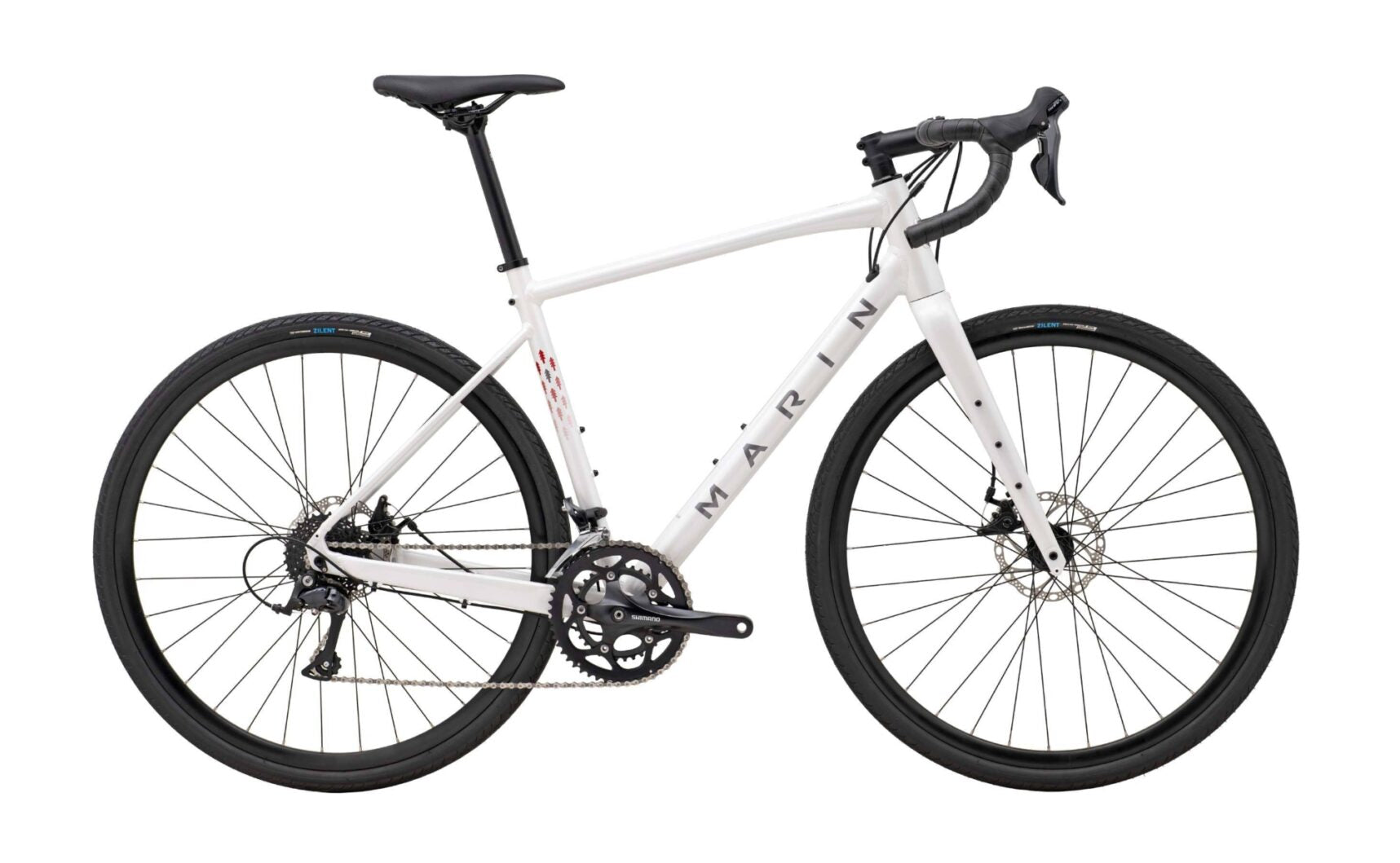

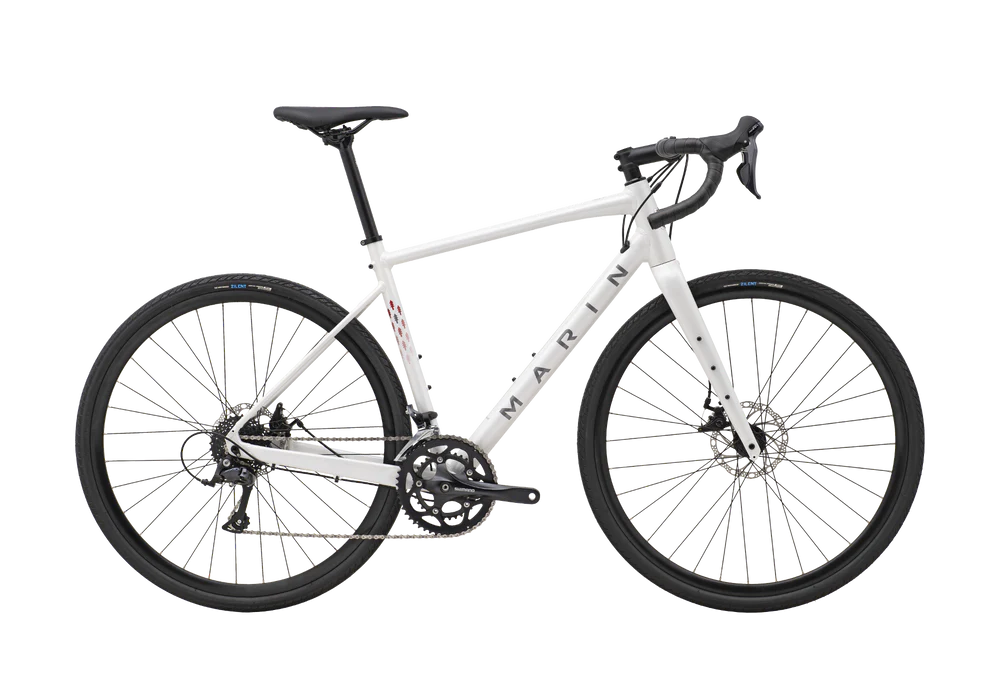

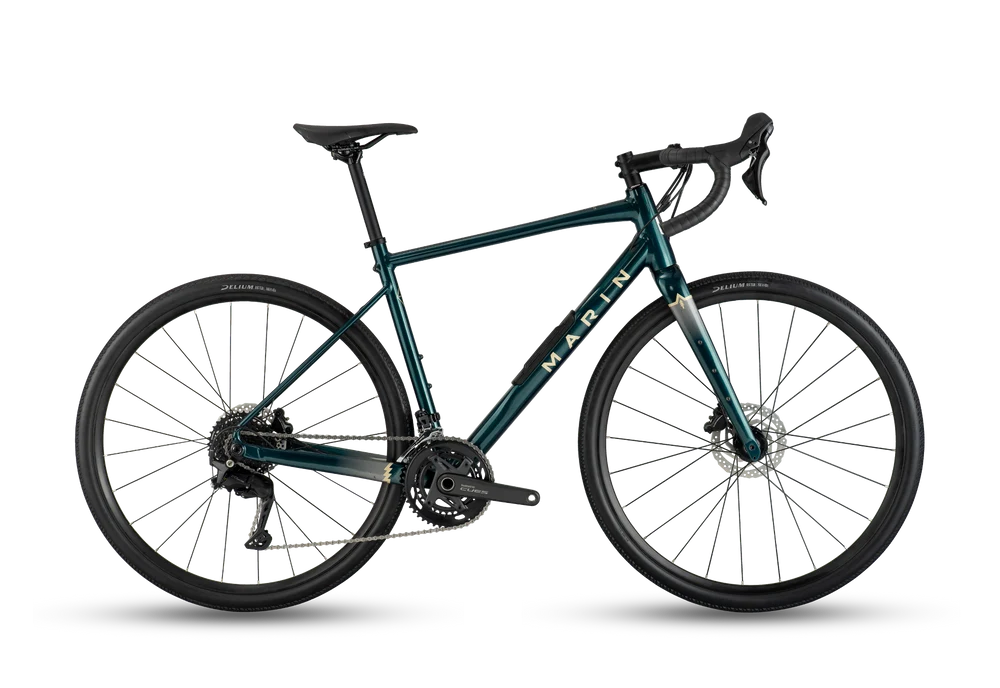

MARIN GESTALT 1 2025

ADVENTURE ROAD RIDING

LONG DISTANCE COMMUTING

ENDURANCE AND ALL-WEATHER PAVEMENT

The Gestalt is for the drop bar rider that doesn’t want to stick to pavement, and can’t help but get dirty no matter the route. Long distance commuters and all-weather riders will appreciate the fender and rack mounts and the sure stopping disc brakes, and the larger volume tires are right at home on that unexpected detour.

SPECIFICATIONS

• FRAME

  Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

• FORK

  Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

• RIMS

  Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible

• HUB, REAR

  Forged Aluminum Alloy, 6-Bolt Disc, 32H

• HUB, FRONT

  Forged Aluminum Alloy, 6-Bolt Disc, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co., Zilent, 700x35

• DERAILLEUR, REAR

  Shimano Sora 9-Speed

• DERAILLEUR, FRONT

  Shimano Sora

• SHIFT LEVER

  Shimano Sora 2x9-Speed

• CRANKSET

  Shimano R345 Octalink Compact, 50/34T

• BOTTOM BRACKET

  Shimano Octalink V2 Cartridge

• CHAIN

  KMC X9

• CASSETTE

  SunRace 9-Speed, 11-32T

• BRAKE, FRONT

  Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

• BRAKE, REAR

  Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

• BRAKE LEVERS

  Shimano w/ Integrated Shifters

• HANDLEBAR

  Marin Butted Alloy, Compact 12º Flared Drop

• STEM

  Marin 3D Forged Alloy

• GRIPS

  Marin Perforated Tape

• HEADSET

  FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

• SEATPOST

  Marin Alloy, 27.2mm

• SADDLE

  Marin Beyond Road Concept

• PEDALS

  Commute Platform

Specifications, pricing, and availability are subject to change without notice.
