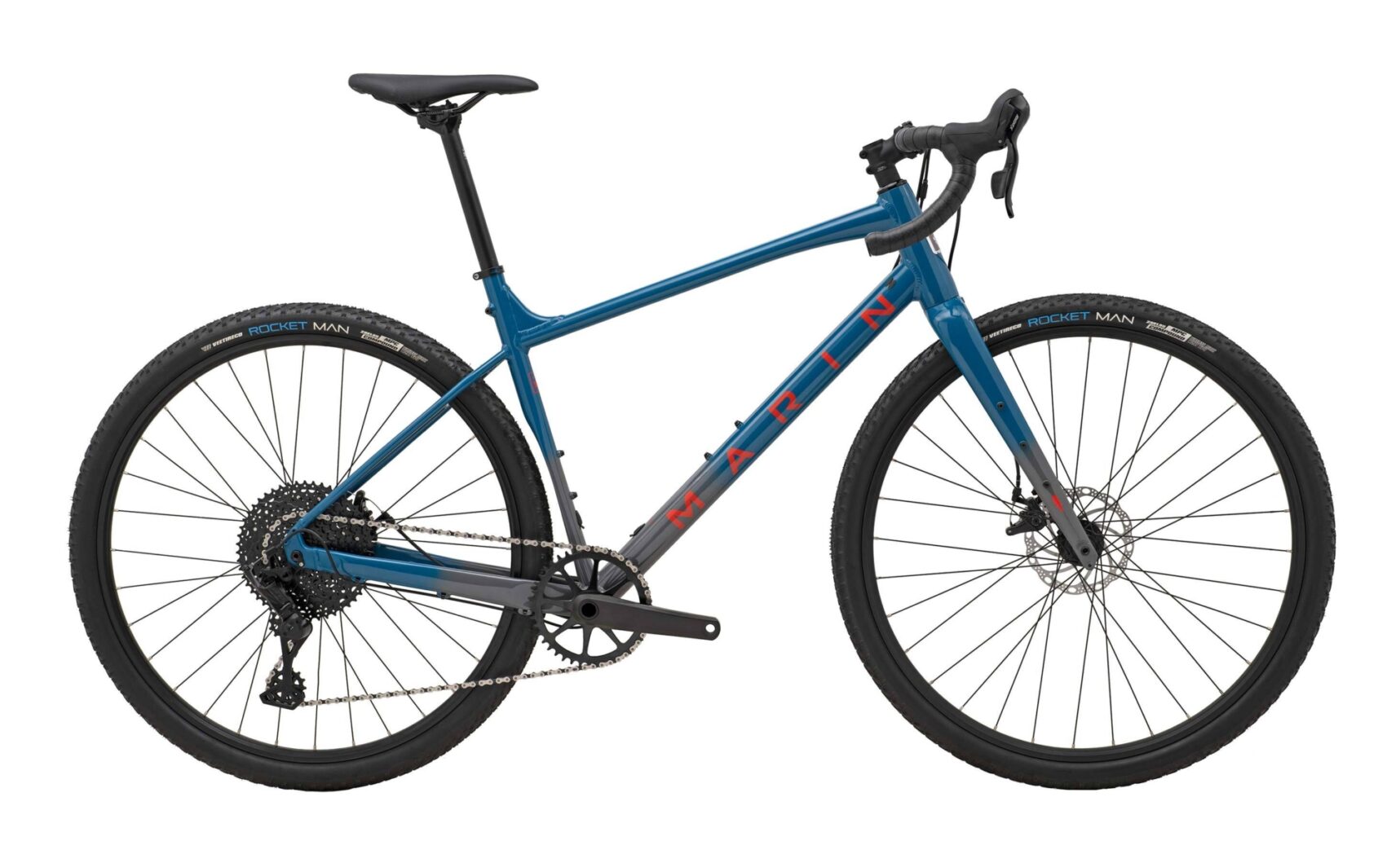

MARIN GESTALT X10 2025

ADVENTURE ON AND OFF-ROAD RIDING

LONG DISTANCE COMMUTING

GRAVEL RIDING

The Gestalt X is our hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do. Break off the fire road, down the singletrack and charge further and faster than ever before. All while keeping the versatility, challenge and fun of a bike with drop handlebars.

The Gestalt X is built with a longer-than-the-usual wheelbase, slack-like-your-mountain-bike head angle, low-slung frame, wide bars, short stem, big and chunky tires with room for up to 50mm on 700c or 54mm with a 650b wheelset.

The Gestalt X10 means extra fun at an extra awesome price. Pick one up and you’ll be riding our MTB-inspired, Series 3 aluminum Gestalt X frame and a whole heap of tough and capable kit, including a 10-speed microSHIFT groupset, cushy and grippy 45mm wide Vee Tire Co tires, Tektro disc brakes and plenty of kick-ass Marin components.

Specifications

• Frame

  Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

• Fork

  Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

• Rims

  Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific

• Hub, Rear

  Forged Aluminum Alloy, Disc, 32H

• Hub, Front

  Forged Aluminum Alloy, Disc, 32H

• Spoke, Nipples

  14g Black Stainless Steel

• Tires

  Vee Tire Co., Quickstyx, 700x45, Tubeless Compatible

• Derailleur, Rear

  microSHIFT SWORD 10-Speed Wide-Range

• Derailleur, Front

  -

• Shift Lever

  microSHIFT SWORD, 10-Speed

• Crankset

  Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T

• Bottom Bracket

  External Sealed Cartridge Bearings

• Chain

  KMC X10

• Cassette

  microSHIFT SWORD 10-Speed, 11-48T

• Brake, Front

  Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

• Brake, Rear

  Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

• Brake Levers

  microSHIFT SWORD

• Handlebar

  Marin Butted Alloy, Compact 16º Flared Drop

• Stem

  Marin 3D Forged Alloy

• Grips

  Marin Shock Absorbing Perforated Tape

• Headset

  FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

• Seatpost

  Marin Alloy, 27.2mm

• Saddle

  Marin Beyond Road Concept

• Pedals

  -

• Extras

  Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
