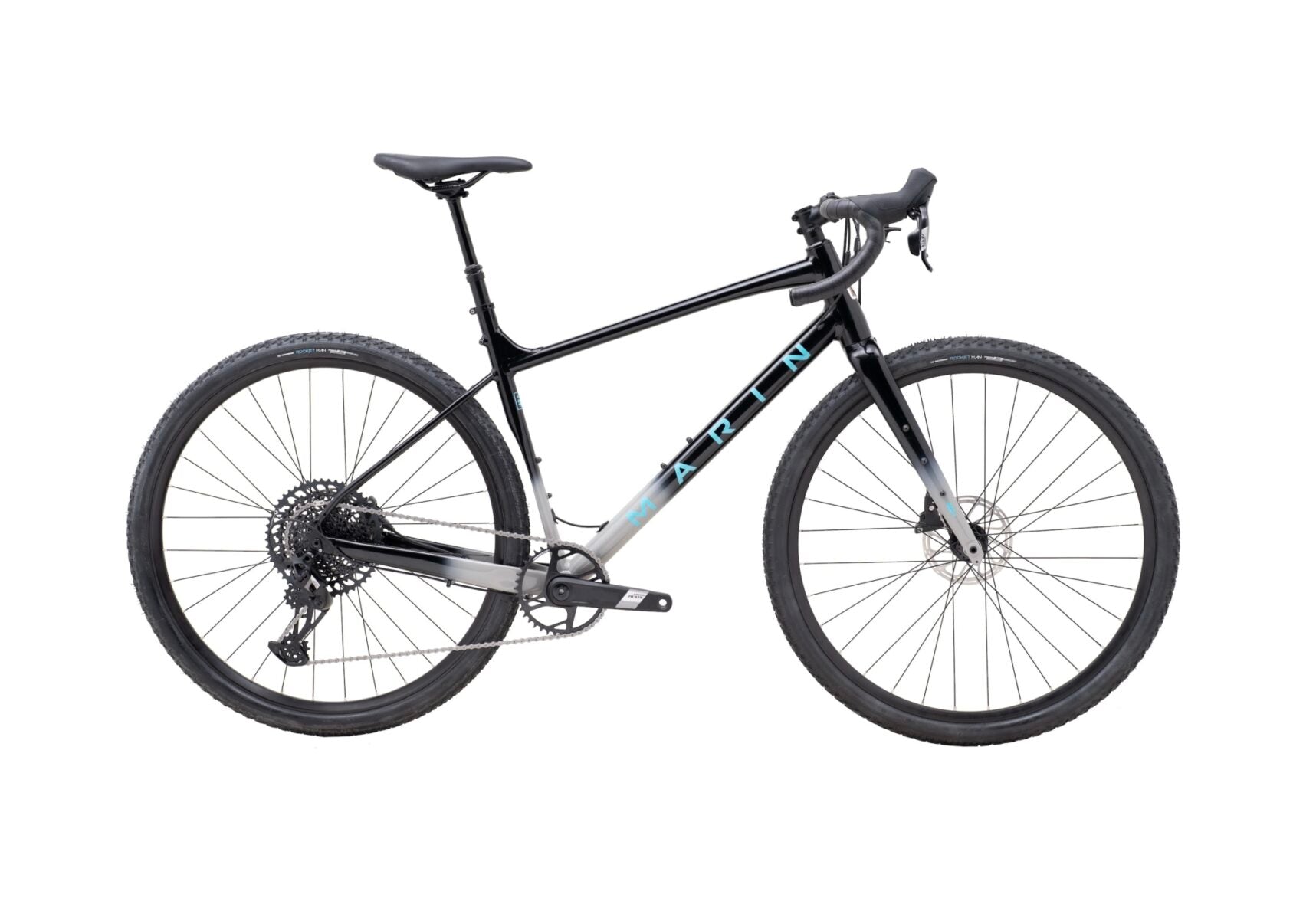

MARIN GESTALT XR 2025

MARIN GESTALT XR 2025

Regular price £2,279.00
Regular price Sale price £2,279.00
Sale Enquire to Order
Tax included.
Size

To pay by Klarna, add to cart.

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

ADVENTURE ON AND OFF-ROAD RIDING

LONG DISTANCE COMMUTING

GRAVEL RIDING

The Gestalt X is our hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do. Break off the fire road, down the singletrack and charge further and faster than ever before. All while keeping the versatility, challenge and fun of a bike with drop handlebars.

The Gestalt X is built with a longer-than-the-usual wheelbase, slack-like-your-mountain-bike head angle, low-slung frame, wide bars, short stem, big and chunky tires with room for up to 50mm on 700c or 54mm with a 650b wheelset.

The Gestalt XR takes gravel to the next level. XR brings our MTB-inspired, Series 3 aluminum Gestalt X frame and adds a gravel-specific SRAM Apex 12-speed drivetrain, Apex hydraulic disc brakes, a TranzX dropper post, cushy and grippy 44mm wide Vee Tire Rubber and heaps of our own bespoke Marin components.

Specifications

  • Frame

    Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

  • Fork

    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

  • Rim

    Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

  • Hub Rear

    Forged Aluminum Alloy, 142x12mm, Disc, 32H

  • Hub Front

    Forged Aluminum Alloy, 100x12mm, Disc, 32H

  • Spokes Nipples

    14g Black Stainless Steel

  • Tires

    Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible

  • Derailleur Rear

    SRAM Apex 1 12-Speed

  • Derailleur Front

    -

  • Shift Lever

    SRAM Apex 1 1x12-Speed

  • Crankset

    SRAM Apex 1, 40T

  • Bottom Bracket

    SRAM DUB BSA

  • Chain

    SRAM NX

  • Cassette

    SRAM CS-XG-1275, 10-52T

  • Brakes Front

    SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

  • Brakes Rear

    SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

  • Brake Levers

    SRAM Apex 1 Hydraulic Disc

  • Handlebar

    Marin Butted Alloy, Compact 16º Flared Drop

  • Stem

    Marin 3D Forged Alloy

  • Grips

    Marin Shock Absorbing Perforated Tape

  • Headset

    FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

  • Seatpost

    TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm

  • Saddle

    Marin Beyond Road Concept Elite

  • Pedals

    -

  • Extras

    Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
