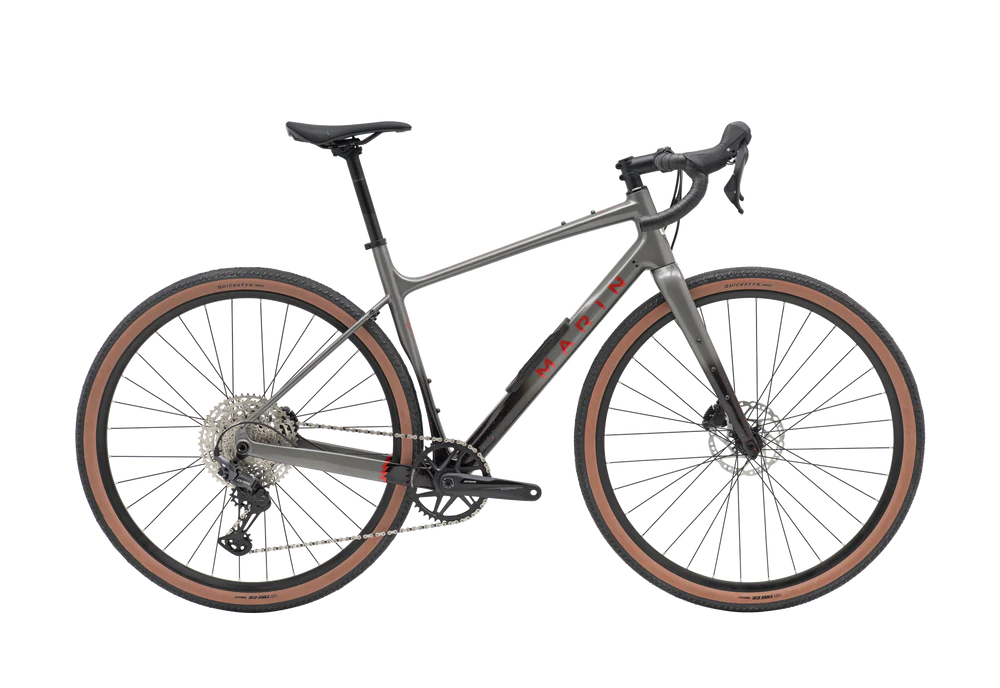

MARIN HEADLANDS 1

ADVENTURE ON AND OFF-ROAD RIDING

LONG DISTANCE COMMUTING

GRAVEL RIDING

Fully loaded bikepacking, fast and light off-road adventures, gravel and CX racing… or simply exploring your favourite tracks and trails. The Marin Headlands is a high tech, high-spec carbon fibre gravel and adventure bike that’s made to be lightning-fast, confidence-inspiring and super comfortable on all surfaces.

We’ve taken our own unidirectional carbon fibre frame, added mountain bike-inspired geometry, loads of tire clearance and a whole heap of mounting points for gear and fenders to create a super versatile, super capable all-terrain dart of a bike. Go 700c with room for up to 45mm tires or 650b up to 47mm.

The Marin Headlands 1 offers bags of fun, adventure and performance without the loftier price point of the mighty Headlands 2. Gravel-specific Shimano GRX groupset, GRX hydraulic brakes, Vee Tire Co tires and Marin wheels and finishing kit all add up to a whole mountain of fun and adventure.

SPECIFICATIONS

FRAME
Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts

FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

RIM
Marin Aluminium Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible

HUB REAR
Forged Aluminium Alloy, Disc, 32H

HUB FRONT
Forged Aluminium Alloy, Disc, 32H

SPOKES
14g Black Stainless Steel

TIRES
Vee Tire Co., G-Sport, 700Cx44, Tubeless Compatible

DERAILLEUR REAR
Shimano GRX RDX812 Shadow Plus w/ Clutch

DERAILLEUR FRONT
-

SHIFT LEVER
Shimano GRX RX600

CRANKSET
Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T

BOTTOM BRACKET
External Sealed Cartridge Bearings

CHAIN
KMC X11

CASSETTE
Shimano CSM8000, 11-Speed, 11/42T

BRAKES FRONT
Shimano GRX Hydraulic Disc, 160mm Rotor

BRAKES REAR
Shimano GRX Hydraulic Disc, 160mm Rotor

BRAKE LEVERS
Shimano GRX Hydraulic w/ Shifter

HANDLEBAR
Marin Butted Alloy, Compact 16º Flared Drop

STEM
Marin 3D Forged Alloy

GRIPS
Marin Shock Absorbing Tape

HEADSET
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

SEATPOST
Marin Alloy, 27.2mm

SADDLE
Marin Beyond Road Concept

PEDALS
-

EXTRAS
Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
