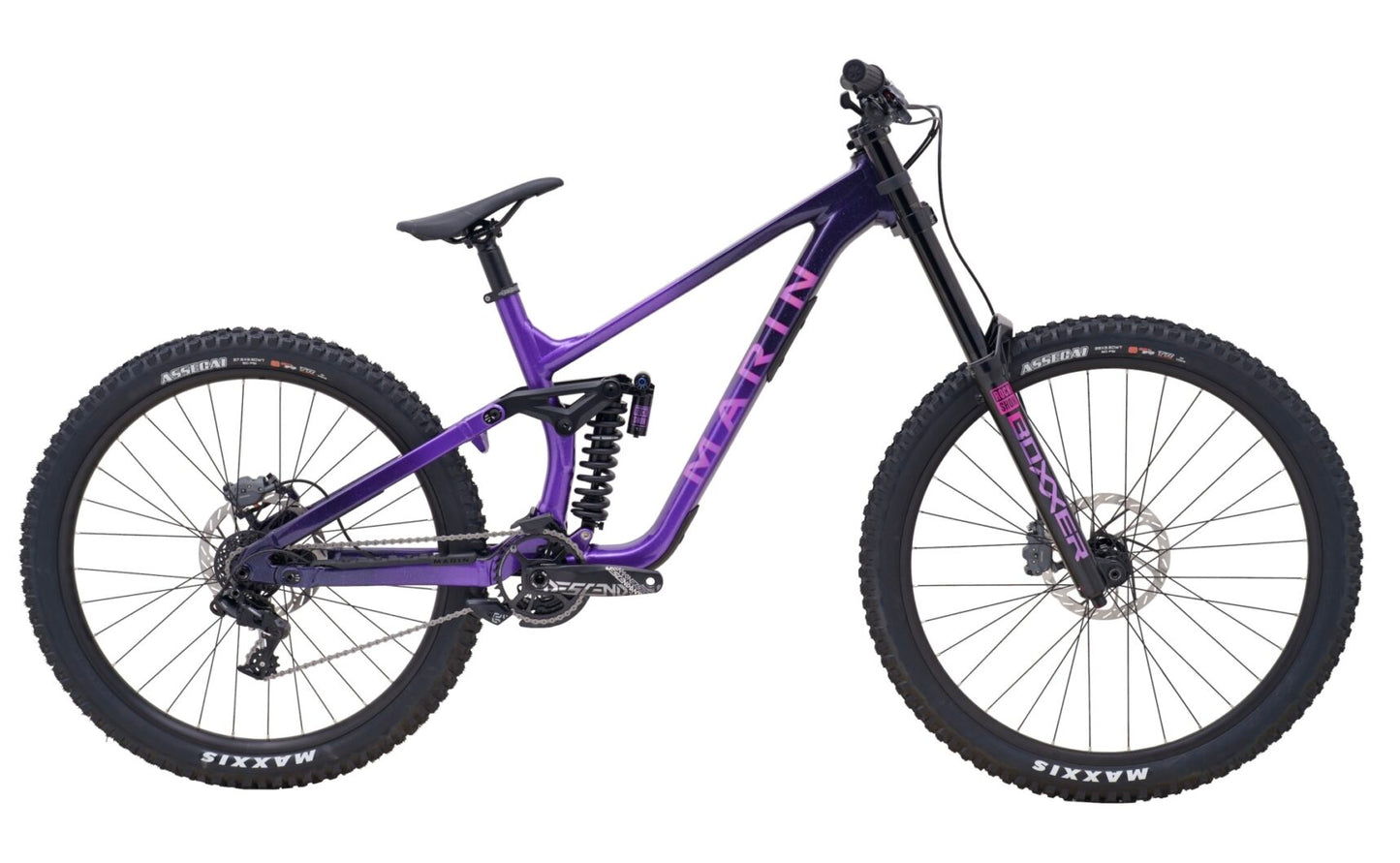

MARIN QUAKE 2025

Designed for bike park laps and the DH course, the all-new Quake has benefited from an immersive development cycle where top riders have provided invaluable feedback over multiple generations of development samples. During this time, it was proven both strong and capable by some of the best riders in the sport, including Matt Jones, Mark Matthews, and Vinnie Moonen at some of the most demanding events, including Darkfest and Hardline, along with some of the steepest and most challenging tracks on earth

An all-new Series 4 MultiTrac 2 frame features 180mm rear wheel travel and flip chips that allow the rider to select the bottom bracket height and chainstay length, along with the ability to run a 29" rear wheel. We’ve chosen a no-nonsense build kit, starting with RockShox’s storied Boxxer fork paired with a Vivid Coil Ultimate DH shock. The Boxxer is renowned for its balance of performance and durability, and it is quickly and relatively affordably upgradable to a Charger 3 damper for riders who demand the utmost adjustability. Out back, the shock has hydraulic bottom out and adjustable low and high-speed compression damping to dial in the perfect ride. SRAM’s gravity-specific GX DH 7-speed drivetrain has the tight range needed in gravity applications, while powerful Maven Bronze four-piston brakes and 200mm HS2 rotors rein speed. Maxxis DH-rated rubber and SRAM’s venerable Descendant crankset, handlebar, and direct-mount stem round out the stout parts mix, designed for long life in some of the harshest riding conditions.

Specifications

FRAME
All New Series 4 Alloy, 180mm travel MultiTrac LT Suspension, Adjustable CS Length/BB Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDH

FRONT SUSPENSION
RockShox Boxxer, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset

REAR SUSPENSION
RockShox Vivid Coil Ultimate DH, 225x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune

RIM
Marin Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

HUB REAR
Formula, DDL-348S, 148x12mm, 6-Bolt Disc, 32H, Shimano Freehub Body

HUB FRONT
Marin Forged, 110x20mm, 6-Bolt Disc, 32H

SPOKES
14g Black Stainless Steel

TIRES
Maxxis Assegai, 2.5", Tubeless Ready, 3C MaxxGrip, DH Casing

CHAINGUIDE
e*thirteen Vario DH Chainguide

DERAILLEUR REAR
SRAM GX DH

SHIFT LEVER
SRAM GX DH, 7-Speed

CRANKSET
SRAM Descendant Alloy 34T, 165mm

BOTTOM BRACKET
SRAM DUB BSA

CHAIN
SRAM PC-1110

CASSETTE
SRAM GS DH, 11-25T

BRAKES FRONT
SRAM Maven Bronze, 200mm HS2 Rotor

BRAKES REAR
SRAM Maven Bronze, 200mm HS2 Rotor

BRAKE LEVERS
SRAM Maven Bronze

HANDLEBAR
SRAM Descendant DH, 31.8mm Clamp, 25mm Rise, 9 Degree Backsweep, 5 Degree Upsweep

STEM
SRAM Descendant DH Direct Mount, 31.8mm Clamp, 50mm Length

GRIPS
Marin Grizzly Lock-On

HEADSET
FSA No 74

SEATPOST
Marin Alloy, 34.9mm

SADDLE
Marin Short Nose

PEDALS
-

EXTRAS
Downtube & Shuttle Guards

Specifications, pricing, and availability are subject to change without notice.
