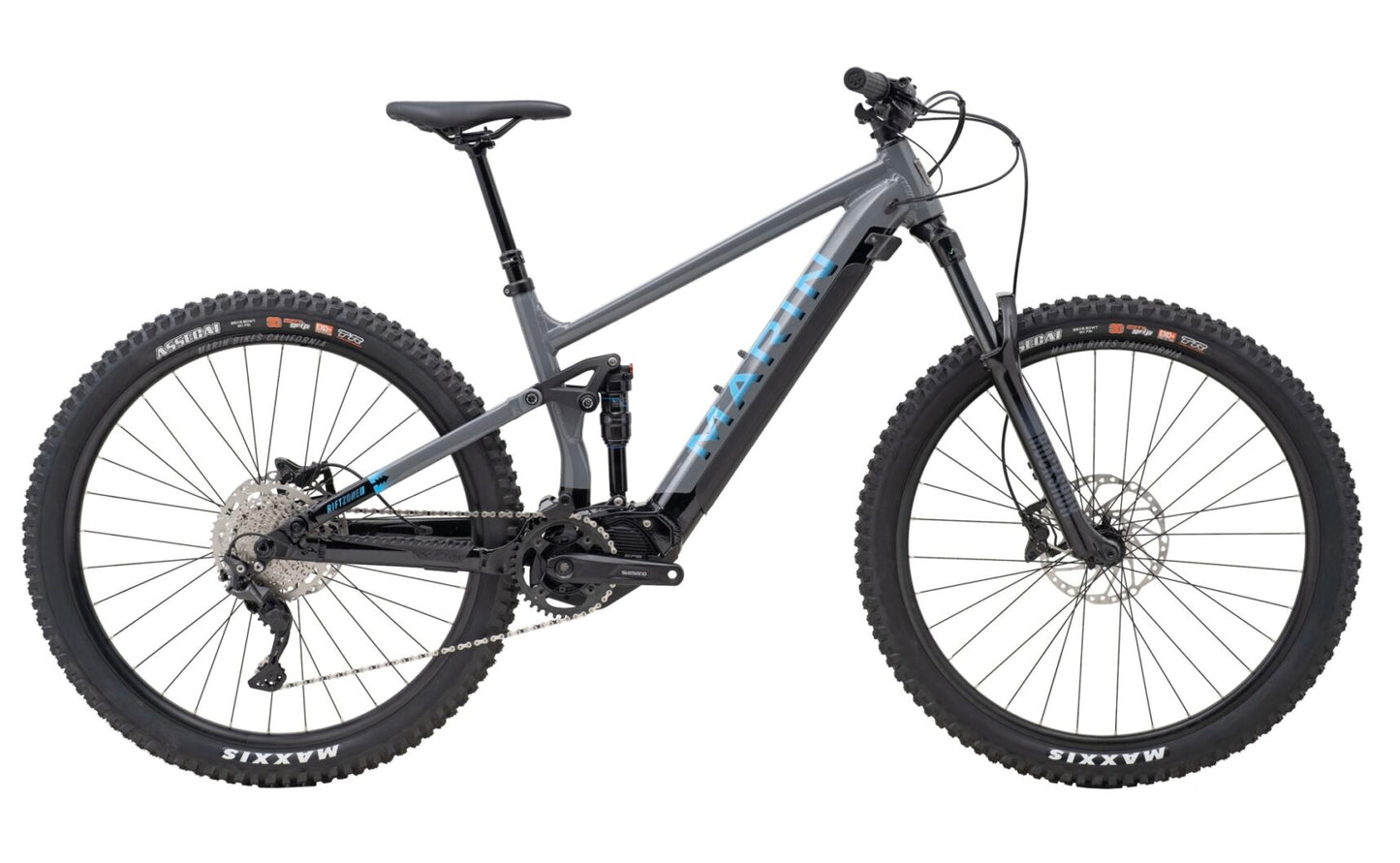

MARIN RIFT ZONE E 2025

SPECIFICATIONS

• FRAME

  All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

• FORK

  RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset

• SHOCK

  X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x50 25xM8 Lower Mount & Upper Mount

• RIMS

  Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

• HUB FRONT

  Shimano FH-TC500, 110x15mm, Centerlock, 32H

• SPOKES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing

• DERAILLEUR REAR

  Shimano Deore, Direct Attachment, 10-Speed SGS

• SHIFT LEVER

  Shimano Deore, 10-Speed, I-Spec EV

• CRANKSET

  Shimano EM600, 160mm Length, 38t Chainring

• MOTOR

  Shimano Steps EP6 Drive Unit, 250W, 85Nm

• CHAIN

  KMC X-10E, Silver

• CASSETTE

  Shimano Deore 10-speed 11-46T

• BRAKES FRONT

  TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick

• BRAKES REAR

  TRP Slate EVO 4-Piston Hydraulic

• BRAKE LEVERS

  Shimano MT4100 Hydraulic, I-Spec EV Compatible

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin Grizzly Lock On

• HEADSET

  FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

• SADDLE

  Marin eMTB Saddle

• PEDALS

  Marin MTB Plastic

• BATTERY

  Shimano BT-EN805L, Internal 504Wh

• DISPLAY

  Shimano SC-E600

• SWITCH

  Shimano SW-EN600L Left Hand Switch for Assist Mode Change

• EXTRAS

  Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide

Specifications, pricing, and availability are subject to change without notice.
