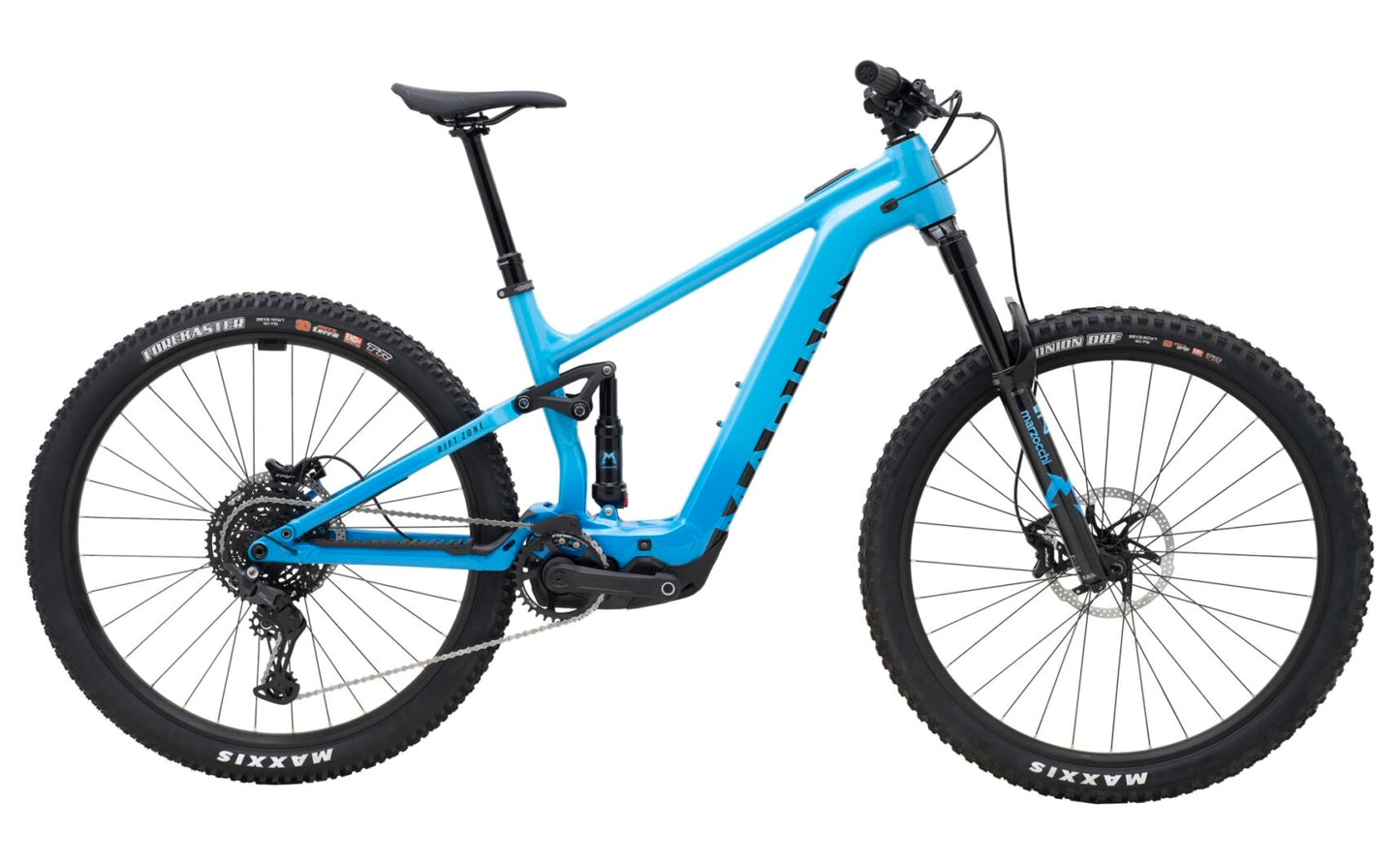

The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.
Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget its an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.
The Rift Zone EL1 is smartly spec'd with air-sprung Marzozzchi Bomber suspension, Shimano's stout and smooth-shifting CUES 10-speed drivetrain and powerful TRP Slate EVO 4-piston disc brakes.
-
Frame
All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
-
Front Suspension
Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset
-
Rear Suspension
Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount
-
Rim
Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
-
Hub Rear
Shimano FHTC500, 148x12 Thru Axle, Microspline, 32H, Centerlock
-
Hub Front
Shimano HB-TC500, 110x10 Thru Axle, 32H, Centerlock
-
Spokes
14g Black Stainless Steel
-
Tires
Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
-
Derailleur Rear
Shimano CUES RD-U6000 GS, 10-Speed
-
Derailleur Front
-
-
Shift Lever
Shimano CUES SL-U6000-10R, 10-Speed
-
Crankset
e*thirteen e*spec Plus, 160mm Length, 34T
-
Motor
Bosch Performance Line SX, 600W, 55Nm torque
-
Chain
Shimano LG500
-
Cassette
Shimano CS-LG300-10, 11-48T
-
Brakes Front
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
-
Brakes Rear
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
-
Brake Levers
TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible
-
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
Stem
Marin 3D Forged Alloy, 35mm
-
Grips
Marin Grizzly Lock On
-
Headset
FSA Custom, Adjustable HTA Design
-
Seatpost
TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm
-
Saddle
Marin Speed Concept
-
Pedals
Marin MTB Plastic
-
Battery
Bosch CompactTube 400Wh Internal
-
Display
Bosch BRC3100 Systems Controller
-
Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
-
Extras
e*thirteen e*Spec Chainguide
-
Extras
Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger
-
Range, Charging Time
15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)
Specifications, pricing, and availability are subject to change without notice.
