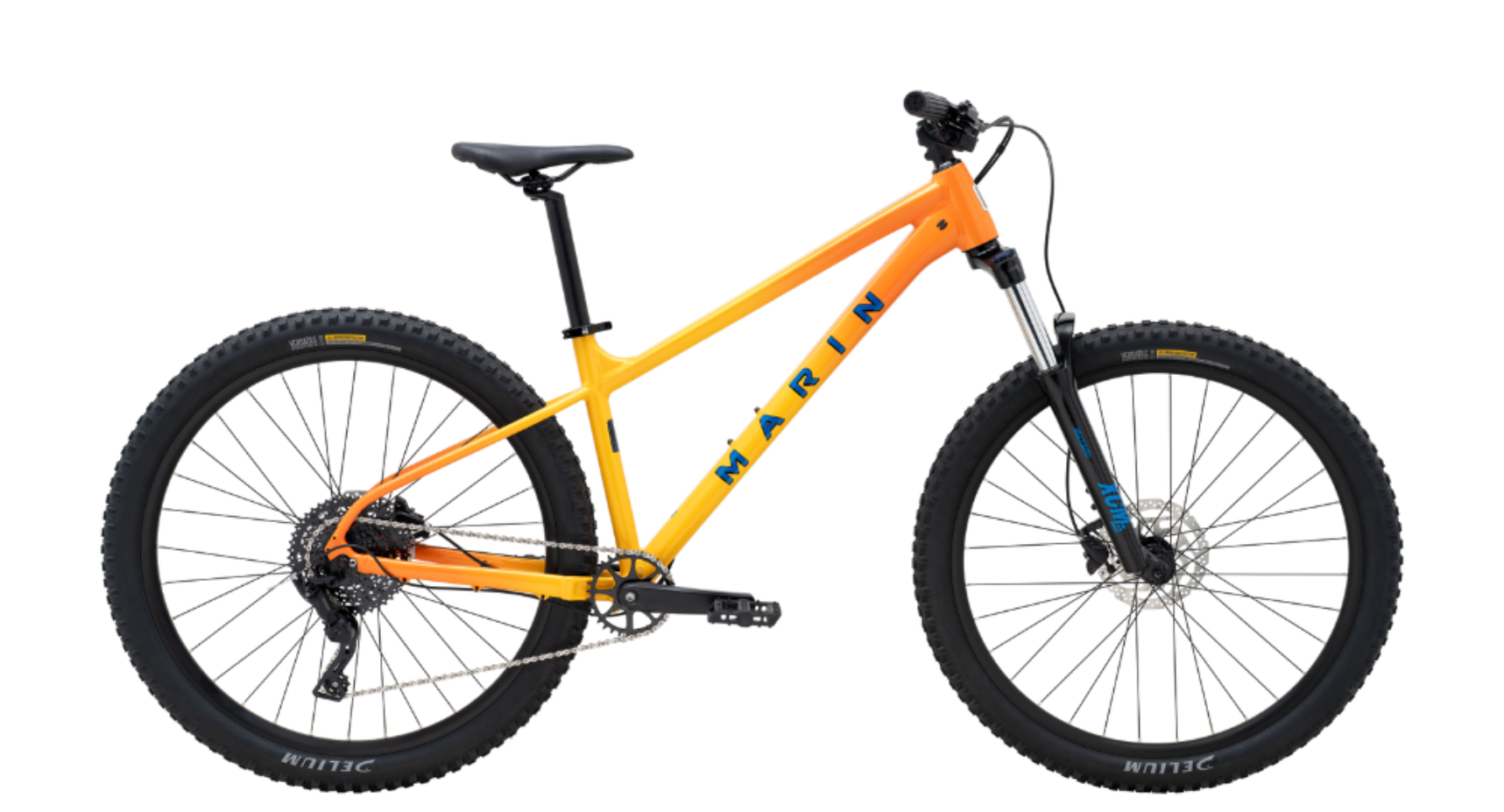

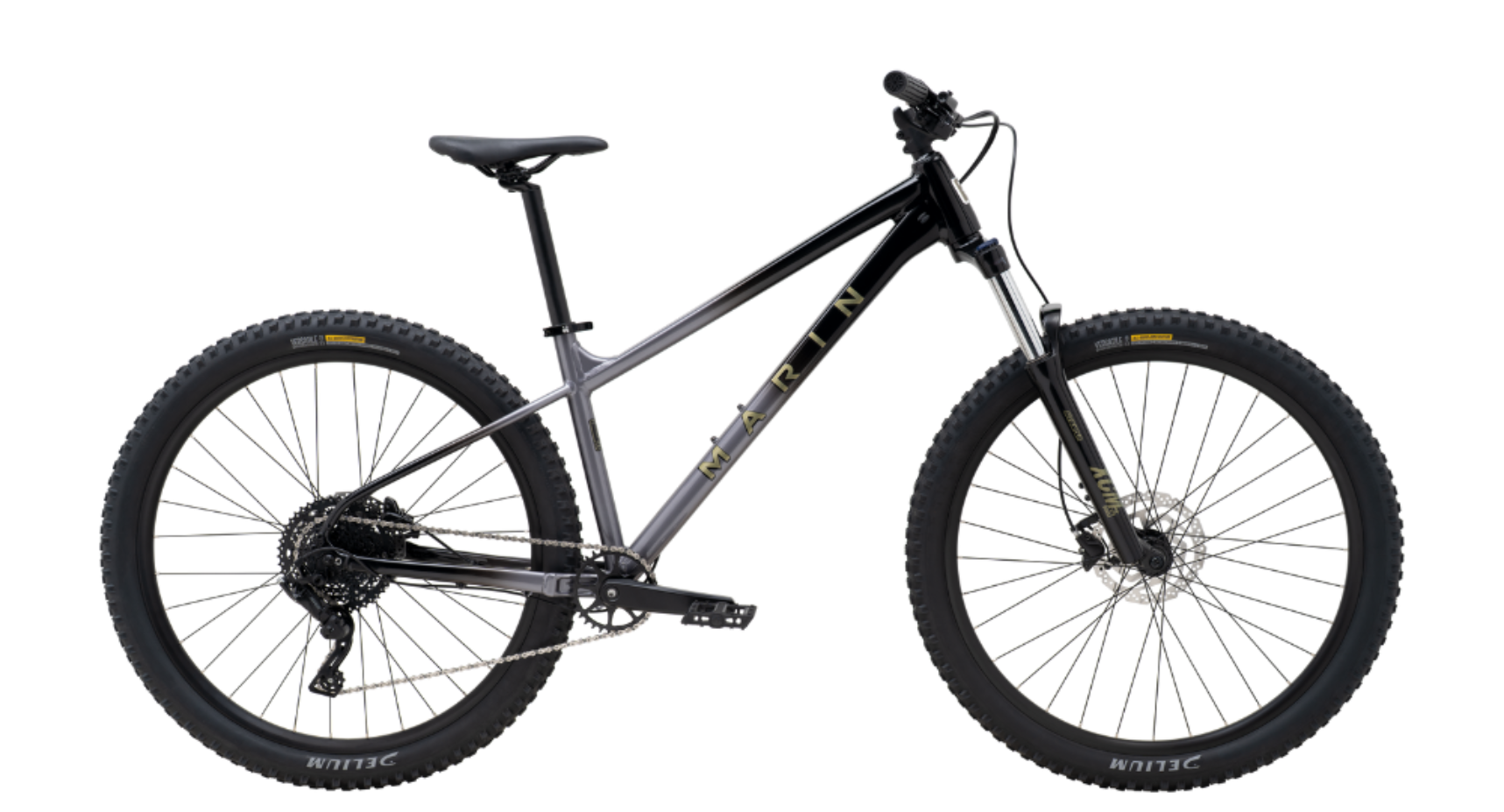

MARIN SAN QUENTIN 1 2026

Specifications

Frame
Series 2 6061 Aluminum 27.5 or 29" Wheel, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB

Front Suspension
SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, Bolt-On Thru-Axle

Rims
Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

Hub, Rear
Forged Alloy, Sealed Bearings, Alloy Axle, QR type, 141mm Width, Disc, 32H, Shimano Standard Freehub Body

Hub, Front
Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H

Spoke, Nipples
14g Black Stainless Steel

Tires
Delium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless

Derailleur, Rear
microSHIFT RD-M9195M, 9 Speed, With Clutch

Shift Lever
microSHIFT SL-M9195-R, 1x9 with Bearings

Crankset
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

Bottom Bracket
Sealed Cartridge Bearing, Square Taper

Chain
KMC X-9

Cassette
SunRace, 9-Speed, 11-46T

Brake, Front
Tektro M275 Hydraulic Disc, 180mm Rotor

Brake, Rear
Tektro M275 Hydraulic Disc, 180mm Rotor

Brake Levers
Tektro M275 Hydraulic

Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem
Marin 3D Forged Alloy, 45mm

Grips
Marin MTN, Closed End

Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost
Marin Alloy, 30.9mm

Saddle
Marin Speed Concept

Pedals
Nylon Platform

Specifications, pricing, and availability are subject to change without notice.
