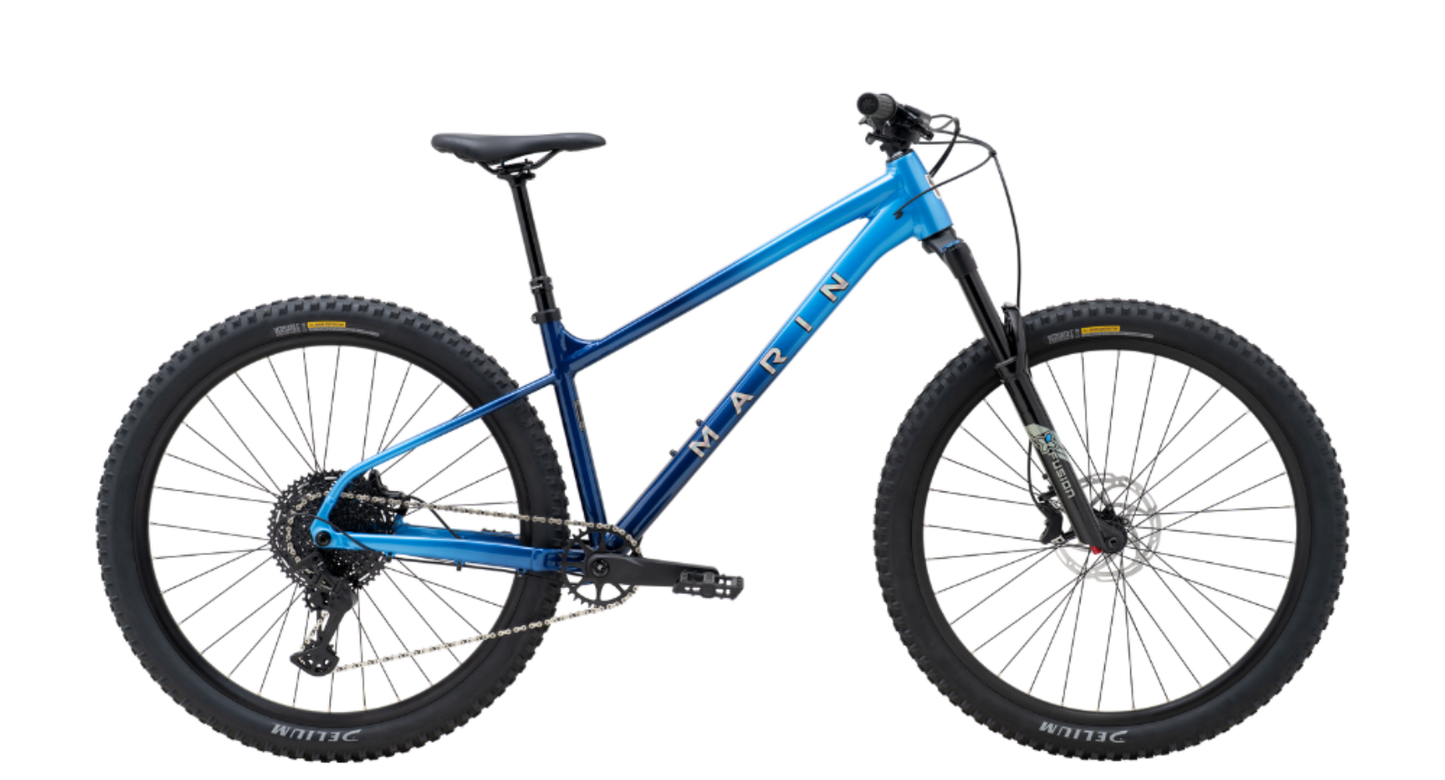

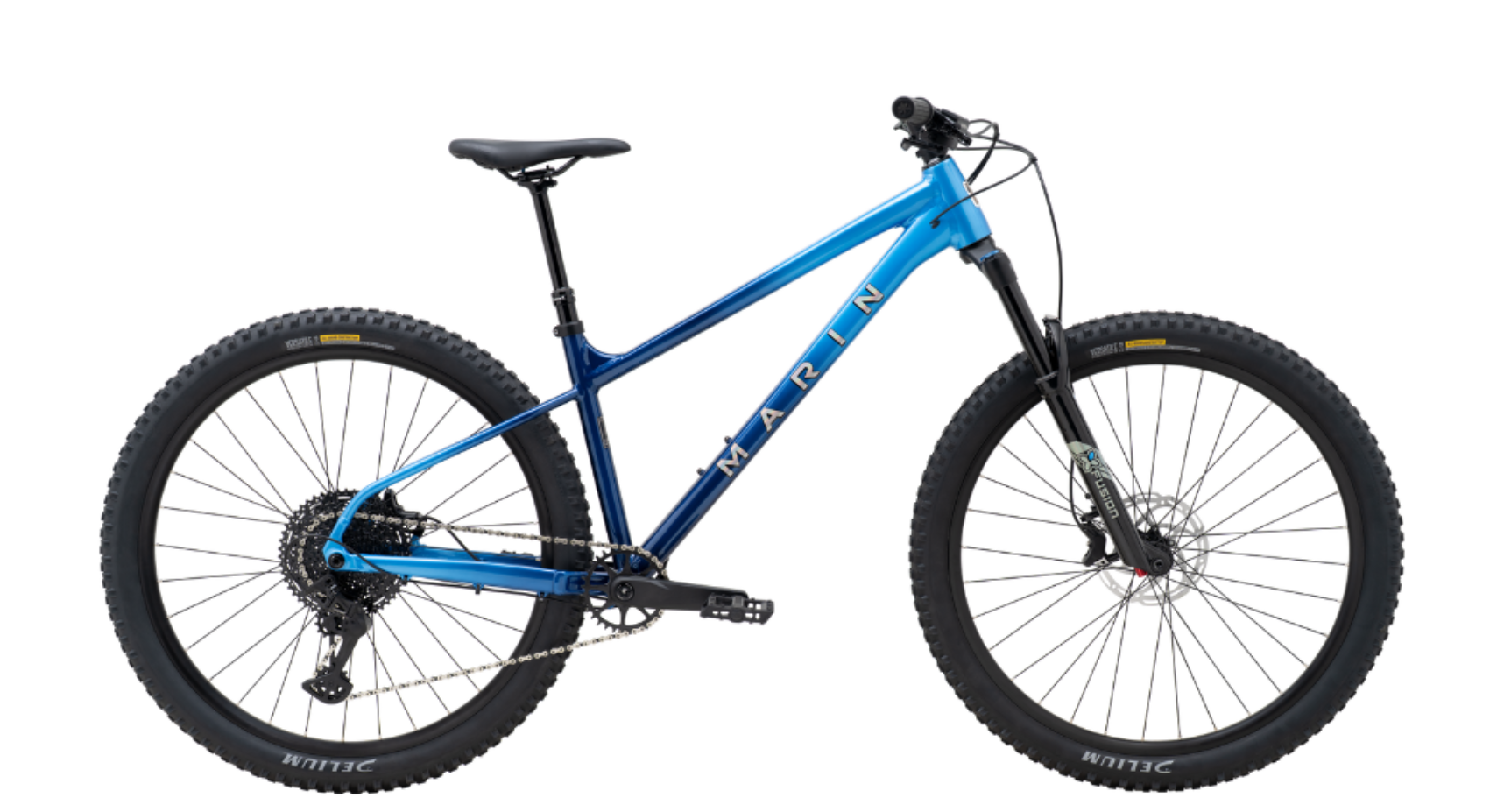

MARIN SAN QUENTIN 2 2026

Specifications

Frame
Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

Front Suspension
X-Fusion Slide Boost RC, 140mm Travel, Compression and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset

Rim
Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

Hub Rear
Shimano HF-MT400B, 148x12, 32H, Standard Freehub Body

Hub Front
Shimano HF-MT410B, 110x15mm, 32H

Spokes
14g Black Stainless Steel

Tires
Delium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless

Derailleur Rear
Tektro RD-5100-L, Long Cage, Clutch

Shift Lever
Tektro, SL M5100-11R, 11-Speed

Crankset
Marin Forged Alloy w/ Hollow Spindle and Integrated Steel 32t Narrow Wide Chanring, Boost Spacing

Bottom Bracket
External Sealed Cartridge Bearing

Chain
Shimano CN-LG500

Cassette
Tektro CS-M5100-11, 11-Speed, 11-50T

Brakes Front
Tektro M535 4-Piston Hydraulic, 180mm Rotor

Brakes Rear
Tektro M535 4-Piston Hydraulic, 180mm Rotor

Brake Levers
Tektro M535

Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem
Marin 3D Forged Alloy, 35mm

Grips
Marin Grizzly Lock On

Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost
TranzX, YSP18, 1x Remote, All Sizes 170mm Travel, 30.9mm

Saddle
Marin Speed Concept

Pedals
Marin Nylon Platform

Specifications, pricing, and availability are subject to change without notice.
