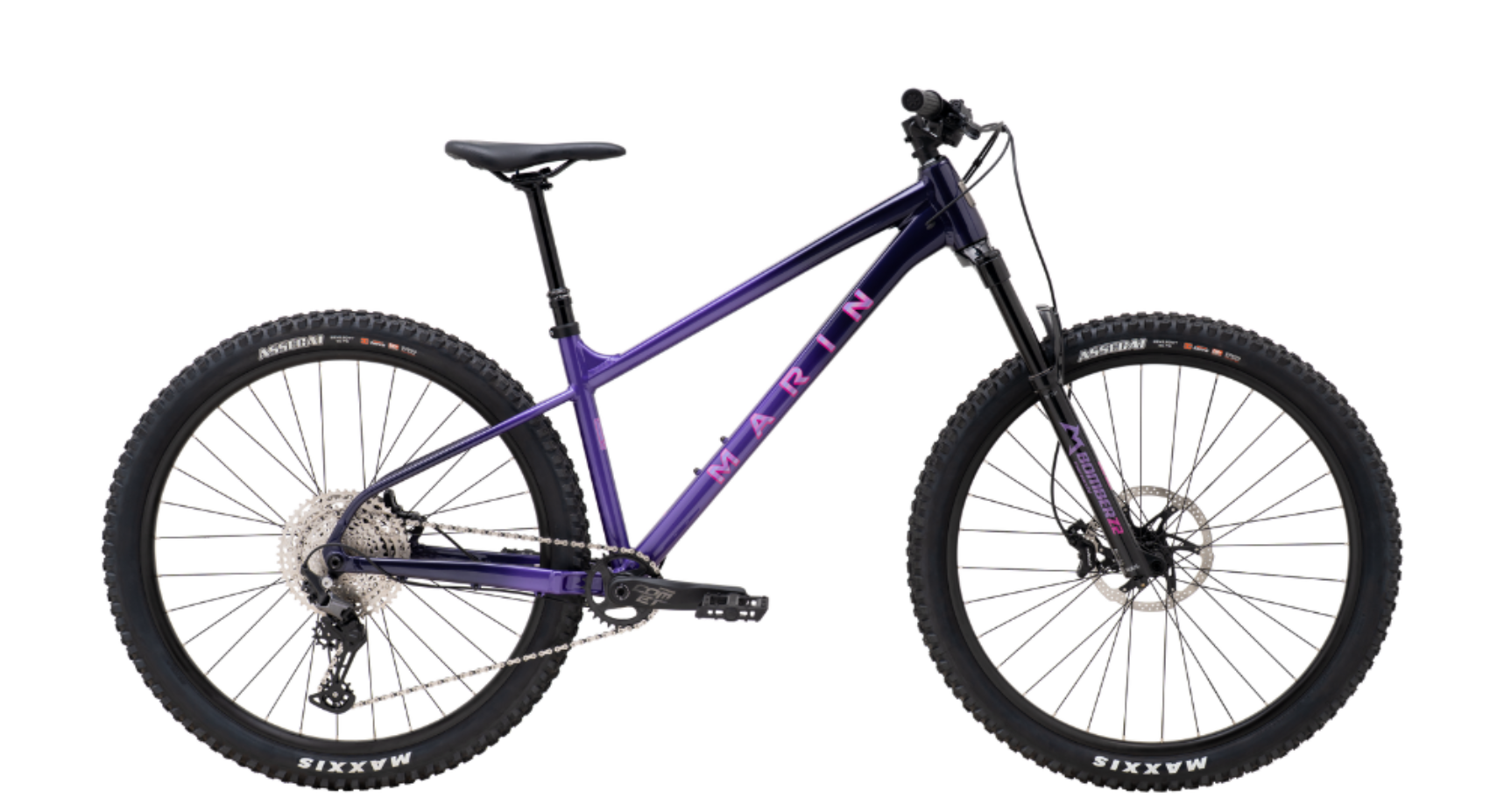

MARIN SAN QUENTIN 3 - PURPLE

Specifications

Frame
Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

Front Suspension
Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle

Rims
Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible

Hub, Rear
Shimano FH-TC500, 148x12, MicroSpline Freehub Body, Centerlock Disc, 32H

Hub, Front
Shimano HB-TC500, 110x15mm

Spoke, Nipples
14g Black Stainless Steel

Tires
Maxxis Assegai, 27.5x2.5" MAXX TERRA, EXO Casing, Tubeless Compatible

Derailleur, Rear
Shimano Deore, 12-Speed, SGS

Derailleur, Front
-

Shift Lever
Shimano Deore, 12-Speed, SL-7100R

Crankset
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Bottom Bracket
FSA MegaExo 73mm BSA

Chain
KMC X-12 Silver and Black

Cassette
SunRace, 12-Speed, MicroSpline, 10-51T

Brake, Front
TRP Slate EVO 4-Piston Hydraulic, Resin Pads, 203mm Rotor

Brake, Rear
TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 180mm Rotor

Brake Levers
TRP Slate EVO, I-Spec EV Compatible

Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem
Marin 3D Forged Alloy, 35mm

Grips
Marin Grizzly Lock On

Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost
TranzX YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm, L 170mm Travel, and Size XL 200mm Travel, 30.9mm

Saddle
Marin Speed Concept

Pedals
Marin Oso OE Flat

Specifications, pricing, and availability are subject to change without notice.
