MARIN TEAM MARIN 2 2024

CROSS COUNTRY RACING

FUN TRAINING & TRAIL RIDING

XC LIGHT WITH TRAIL RIDING CAPABILITY

We made the Team Marin to be lightning-fast, super composed in the rough-and-tumble of spicy singletrack and perfectly in control up, along and down. It packs all the roll-up-your-sleeves tough of a trail bike and the zip you’d expect from an XC racer to perfectly blend speed with fun. Because who said XC had to be so serious?!

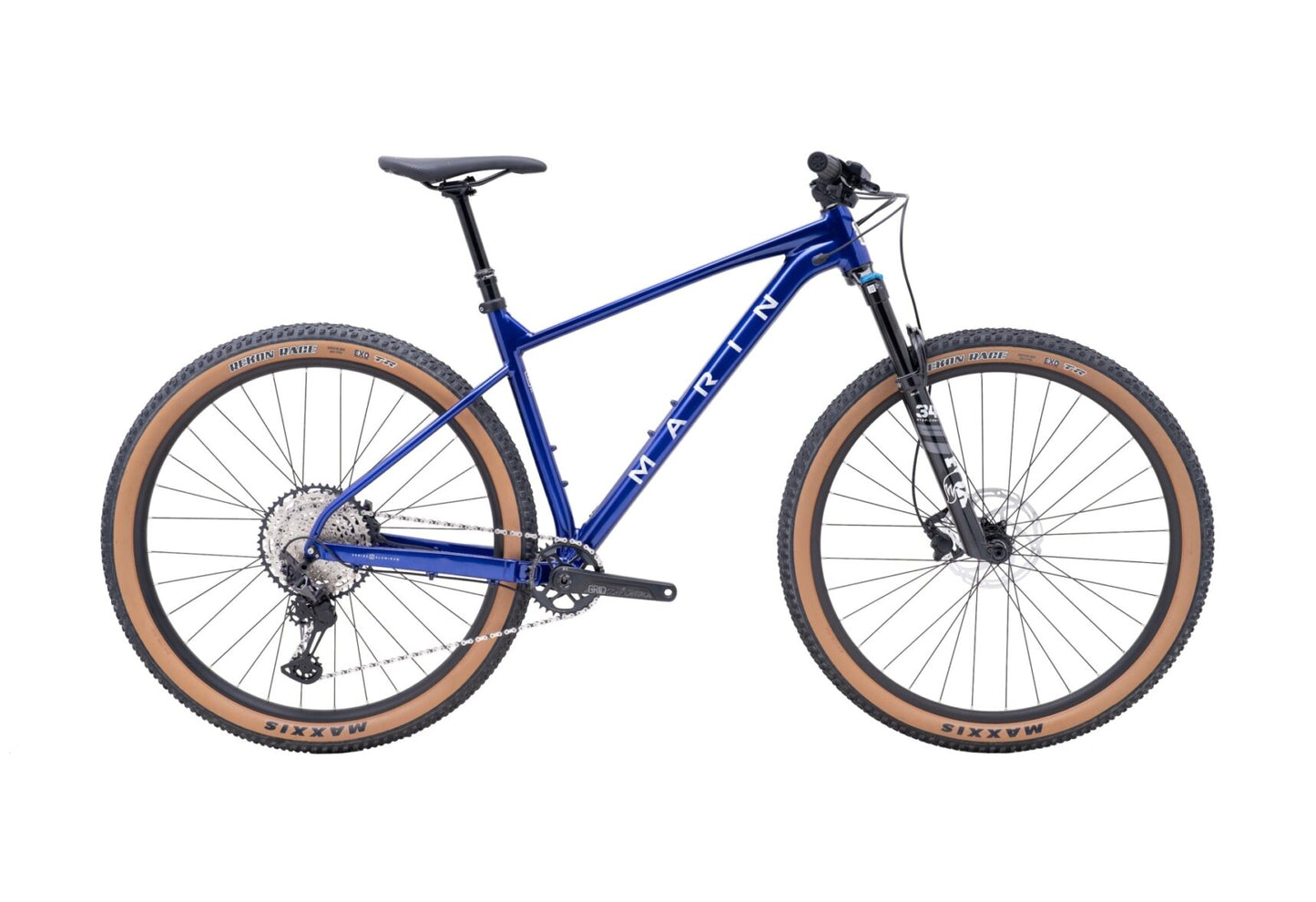

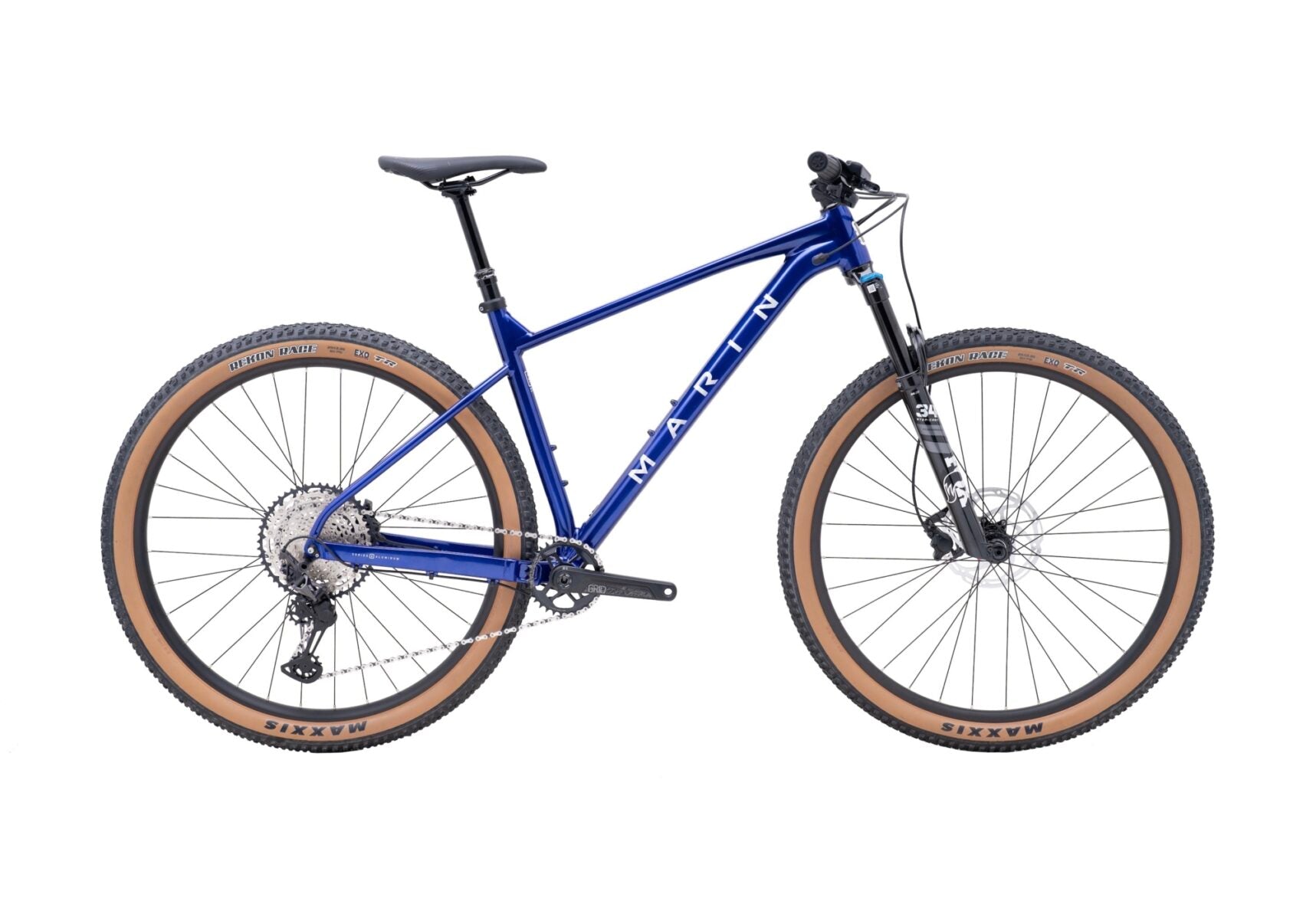

Top of the Team Marin tree, the Team Marin 2 is fast enough for the podium of your next XC race, without losing any of its teeth on the trails. We started with a high-end Series 4 aluminum frame and fast-rolling 29” wheels and then added a Fox 34 StepCast fork, a Shimano XT/SLX drivetrain, TRP G-spec brakes and Maxxis Rekon Race rubber to create a super fun, super capable and super speedy XC trail ripper.

SPECIFICATIONS

FRAME
Series 4 6061 Aluminum, 29" Wheels, Superlight Aluminum, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle

FRONT SUSPENSION
Fox 34 StepCast Performance, 120mm Travel, Alloy Tapered Steerer, Air Spring, 110x15mm Boost Spacing, Kabolt Thru-Axle, 44mm Offset

RIM
Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible

HUB REAR
Forged Aluminum, 148x12mm, Disc Specific, 32H

HUB FRONT
Shimano, 110x15mm, Disc, 32H

SPOKES
14g Black Stainless Steel

TIRES
Maxxis Rekon Race, 29x2.35", Folding Bead, Tubeless Ready

DERAILLEUR REAR
Shimano XT, RDM8100, 12-Speed

SHIFT LEVER
Shimano SLX, SLM7100, 12-Speed

CRANKSET
FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, MegaExo Spindle, Boost Spacing

BOTTOM BRACKET
FSA MegaExo 73mm BSA

CHAIN
KMC X12

CASSETTE
SunRace 12-Speed, 11-51T

BRAKES FRONT
TRP G-Spec FMR Hydraulic Disc, 180mm Rotor

BRAKES REAR
TRP G-Spec FMR Flat Mount Hydraulic Disc, 160mm Rotor

BRAKE LEVERS
TRP G-Spec FMR Hydraulic

HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back

STEM
Marin 3D Forged Alloy, 35mm

GRIPS
Marin Single Clamp Locking

HEADSET
FSA No 42ACB, 1 1/8" x 1 1/2”

SEATPOST
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, All Other Sizes 150mm Travel, 30.9mm

SADDLE
Marin Speed Concept

PEDALS
Marin Oso OEM Nylon Platform

Specifications, pricing, and availability are subject to change without notice.
