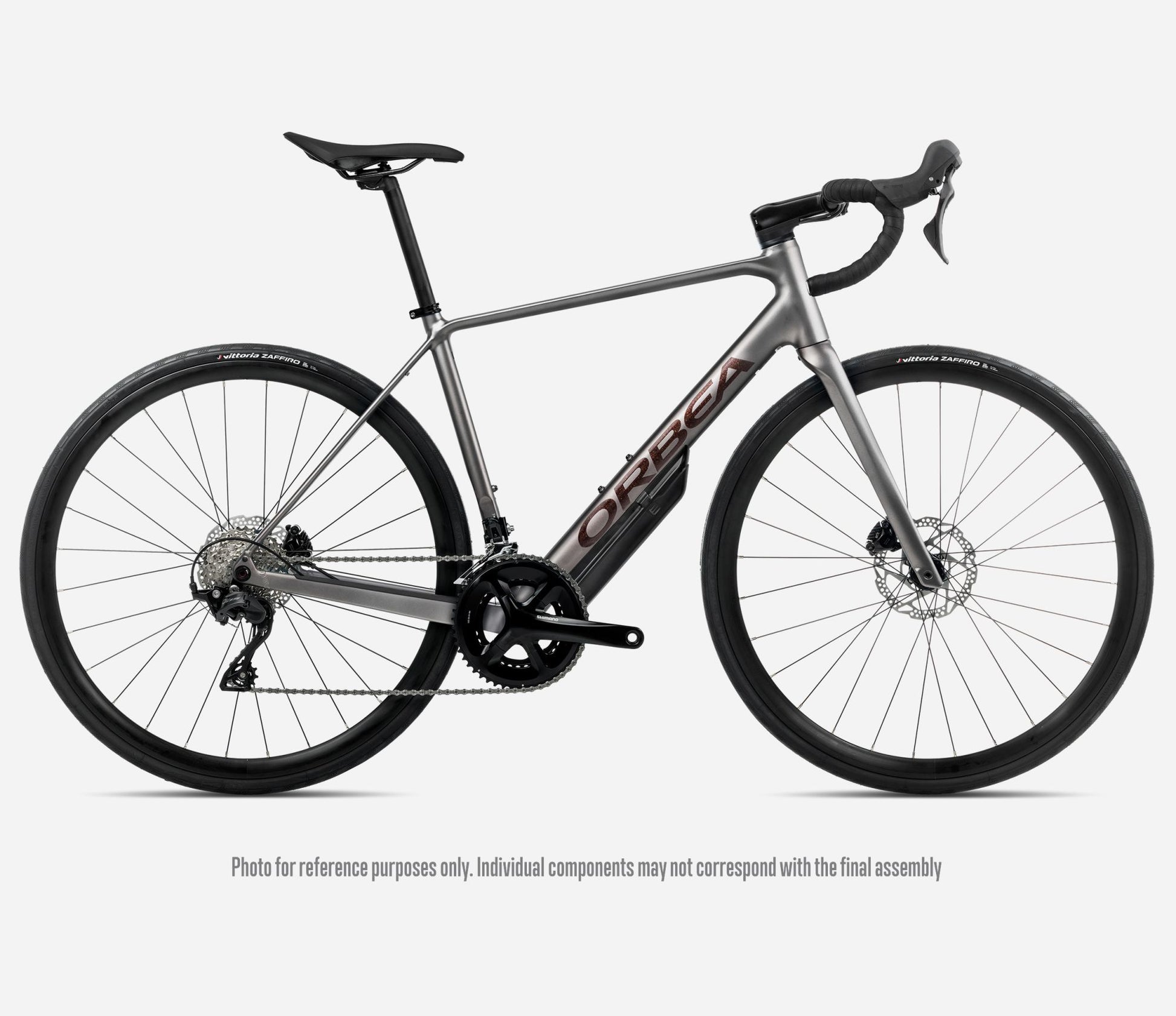

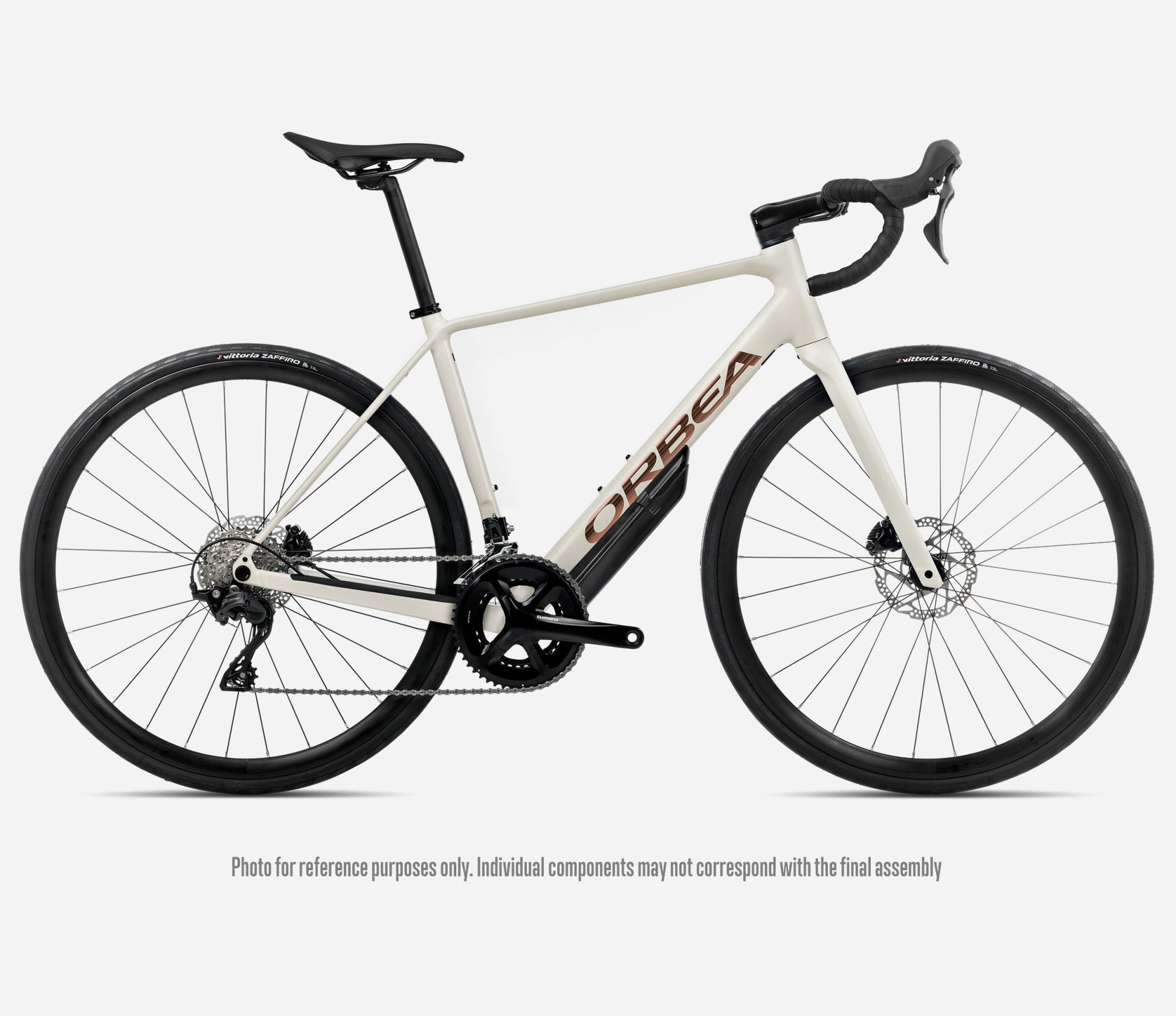

ORBEA AVANT H30 2026

Specs

Frame
Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.

Fork
Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
Shimano RS520 34x50t

Shifters
Shimano R7120

Cassette
Shimano 105 R7100 11-34t 12-Speed

Rear derailleur
Shimano 105 R7100

Front derailleur
Shimano 105 R7100

Chain
Shimano M6100

Handlebar
OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125

Stem
OC Road Performance RP23, -5º

Brakes
Shimano R7170 Hydraulic Disc

Brakes Configuration
N/A

Wheels
Alloy, Tubeless, 700c, 19c, 28H

Tyres
Continental Grand Prix Foldable 700x30c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Solid

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Seatpost
SP 0.6, Alloy, 27.2mm, Setback 20

Saddle
SD 0.1 145mm

Mudguard
N/A

Handlebar Tape
Orbea Eva

Storage
OC Toolbox TB03PP

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
