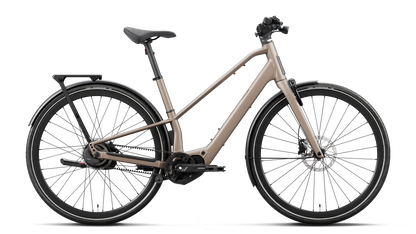

ORBEA Carpe 10

ORBEA Carpe 10

£3,699.00
£3,699.00
Sale Enquire to Order
Tax included.
Size
Colour

To pay by Klarna, add to cart.

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

Frameset

Fork

Orbea Carpe carbon

Frame

Orbea Carpe 2026, Hydroformed Alloy 6061, OLD 135x9 / OLD 142x12, Headset Standard HS01, Orbea cockpit and equipment ecosystem, w/ Kickstand, Trailer compatible.

Headset

FSA 1-1/2" Integrated Aluminium Cup

Ebike

Motor

Shimano EP600

Battery

Orbea Internal 420Wh

Range Extender

N/A

Display

Shimano EN500

Charger

Orbea 2.Generation eBike Smart charger 42V/2-4A

Drivetrain

Chainring

Gates CDX 50t w/chainguard

Crank

Shimano Steps EM600

Shifters

EN600-R

Cassette

Gates CDX 34t for Shimano Inter 5e

Rear derailleur

Shimano Motor Unit UR510 Di2 5 speeds

Chain

Gates CDX Belt

Cockpit

Handlebar

Alloy, 31.8mm, Riser

Stem

ST 0.1 Foldable 65mm, +15º

Computer Mount

Smartphone mount SP Connect SPC+

Brakes

Brakes

Shimano MT200 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Wheels

Alloy, 25c, 32H

Tyres

Vittoria Randonneur 42-622, Reflective band

Components

Saddle

Selle Royal Vivo Ergo

Seatpost

SP08, Alu, 31.6mm, Setback 0, w/integrated lightu

Accessories

Rear light

Supernova TL3 Mini

Pedals

VP-F57 Foldable pedal black with reflectors

Front carrier

N/A

Rear carrier

Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg

Mudguard

Orbea Alu SL 48

Front Position Light

Orbea Seatpost Integrated

Front light

Supernova Mini2

Chainguard

Gates CDS

Lock

Abus 5755L

Quick stand

Massload rear adjustable

Bell

Knog Oi Small Flat

View full details
