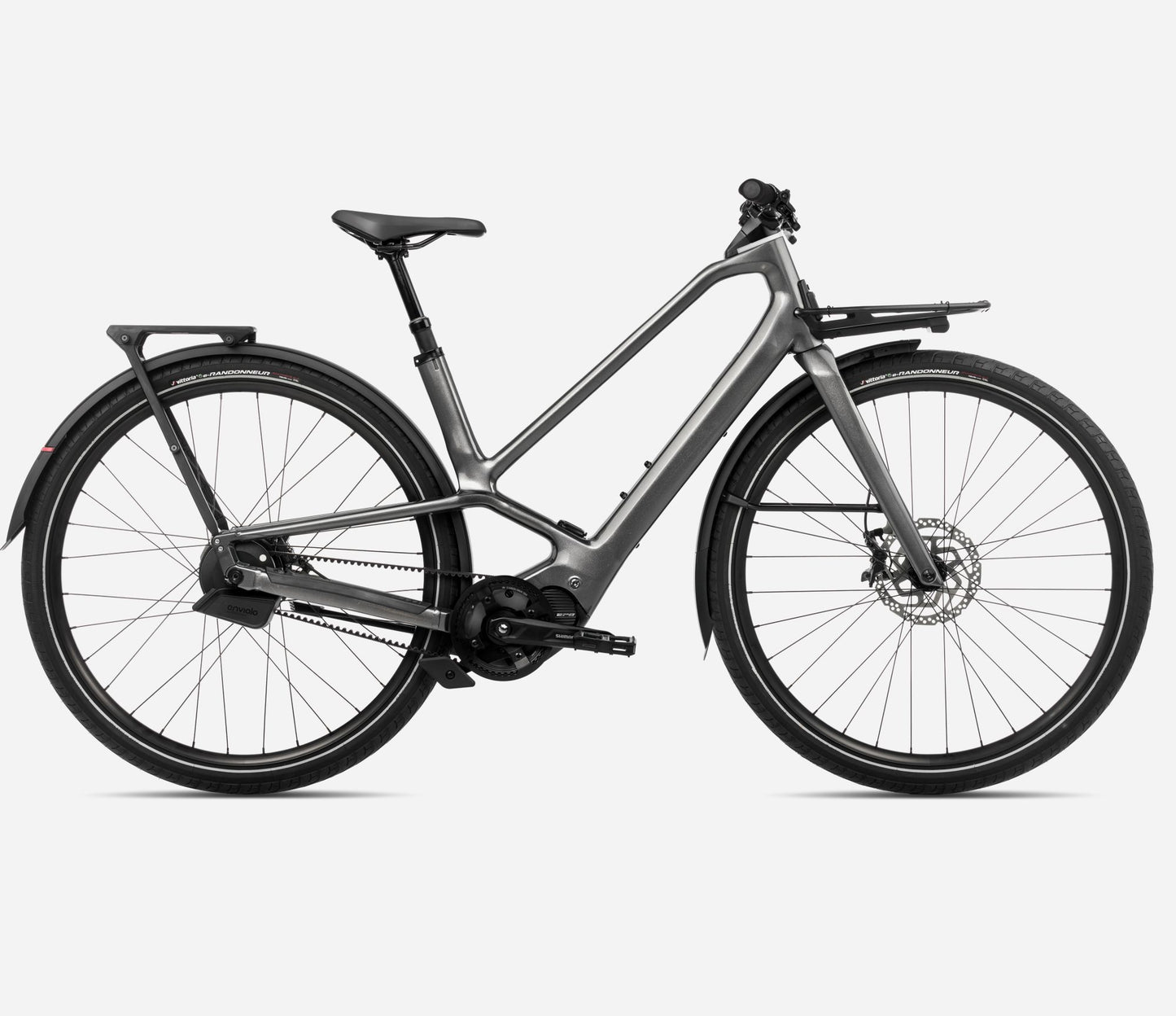

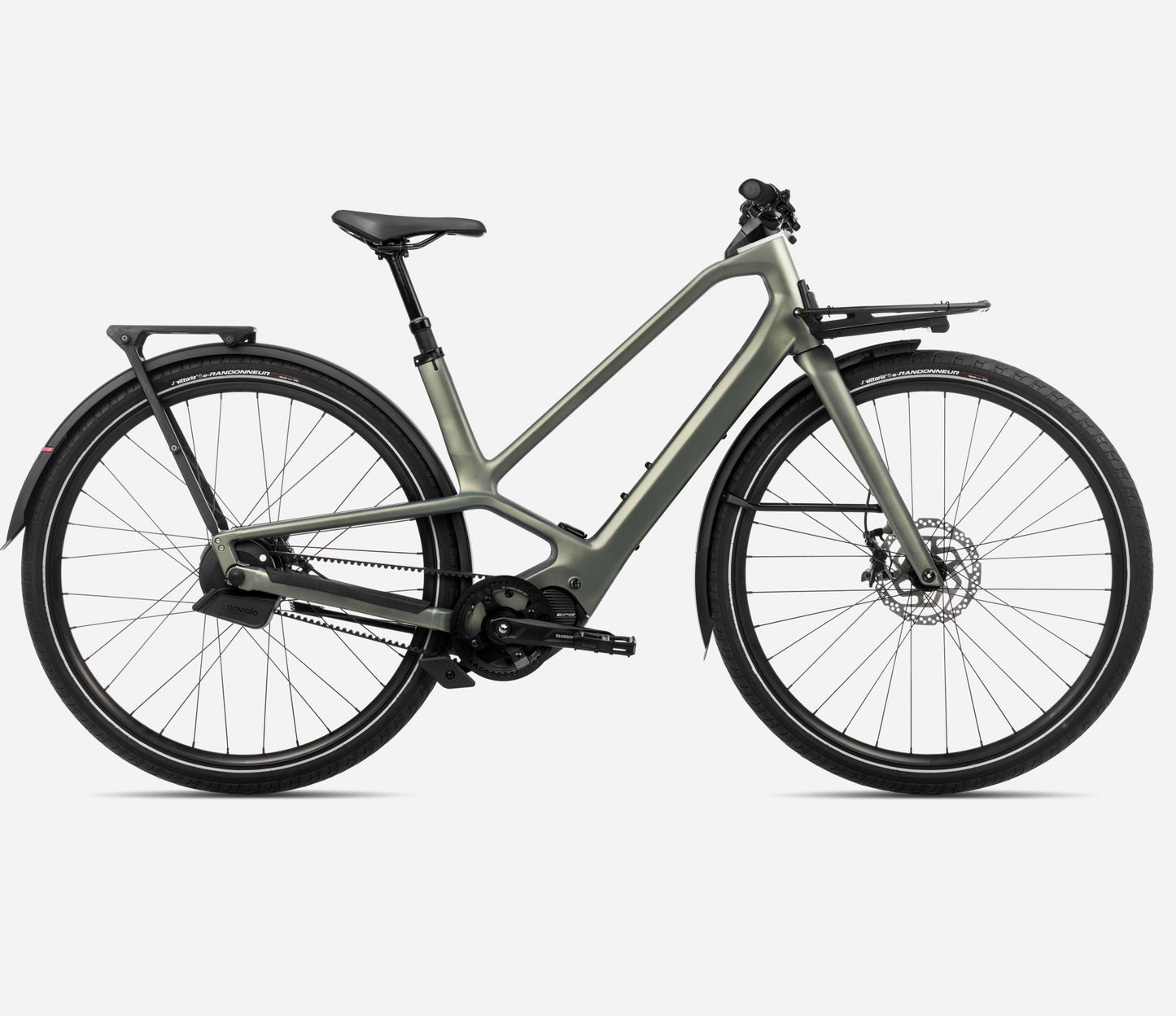

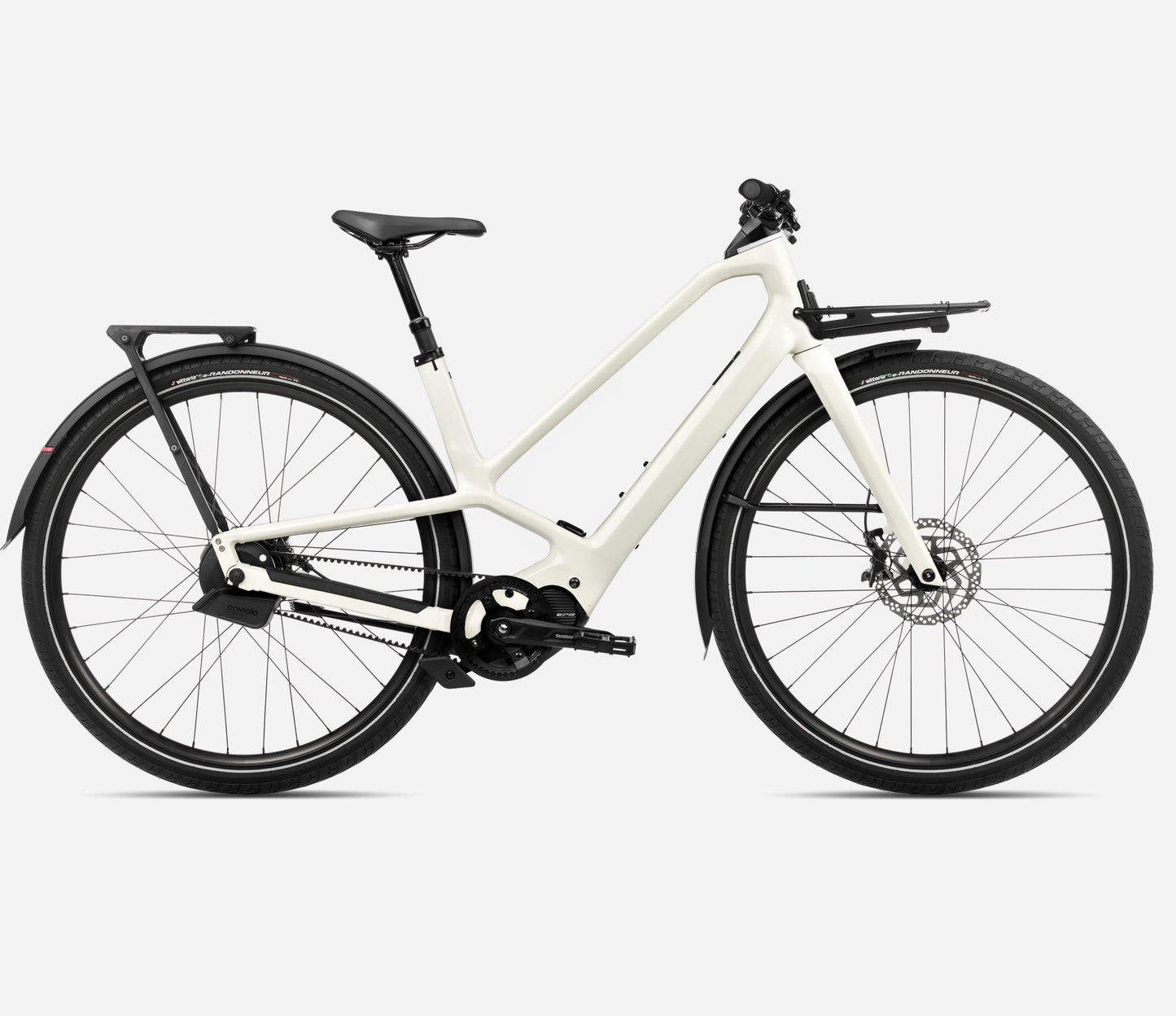

ORBEA DIEM 10

Diem 10, the powerful urban ebike, slots into your routine, making the A to B even easier thanks to Enviolo´s maintenance free, automatic shifting and belt drive.

SPECIFICATIONS

FRAME
Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible

FORK
Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

HEADSET
FSA 1-1/2" Integrated Aluminium Cup

BATTERY
Orbea Internal 630Wh (Optional 250 Wh Range Extender)

RANGE EXTENDER
N/A

MOTOR
Shimano EP801

CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A

REMOTE
EN600-L

CHAINRING
Gates CDX 46t w/chainguard

CRANK
Shimano Steps EM600

CASSETTE
Gates CDX 34t for Enviolo

REAR DERAILLEUR
Enviolo Automatiq, BT

CHAIN
Gates CDX Belt

HANDLEBAR
Orbea Urban, Integrated Light, Rise 0, Width 720

BRAKES
Shimano Cues U8020 Hydraulic Disc

WHEELS
Alloy, Tubeless, 25c, 32H

TYRES
Vittoria e-Randonneur 50-622, Reflective band

PEDALS
VP-537 Black

FRONT CARRIER
Orbea RF-01 Alloy, Max. 10Kg wtih Aluminium Front Basket with net

REAR CARRIER
Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg

MUDGUARD
Curana Apollo Orbit 60mm

FRONT POSITION LIGHT
Orbea integrated, USB-C charging point

FRONT LIGHT
Supernova Starstream Pro, High Beam

REAR LIGHT
Orbea Fender integrated, with alert light

CHAINGUARD
Gates CDS

QUICK STAND
Orbea Diem Integrated

BELL
Knog OI Classic

SEATPOST
OC Mountain Control MC21, 31.6mm, Dropper

SEATPOST LEVER
Shimano SL-MT500

SADDLE
Selle Royal Vivo Ergo

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
