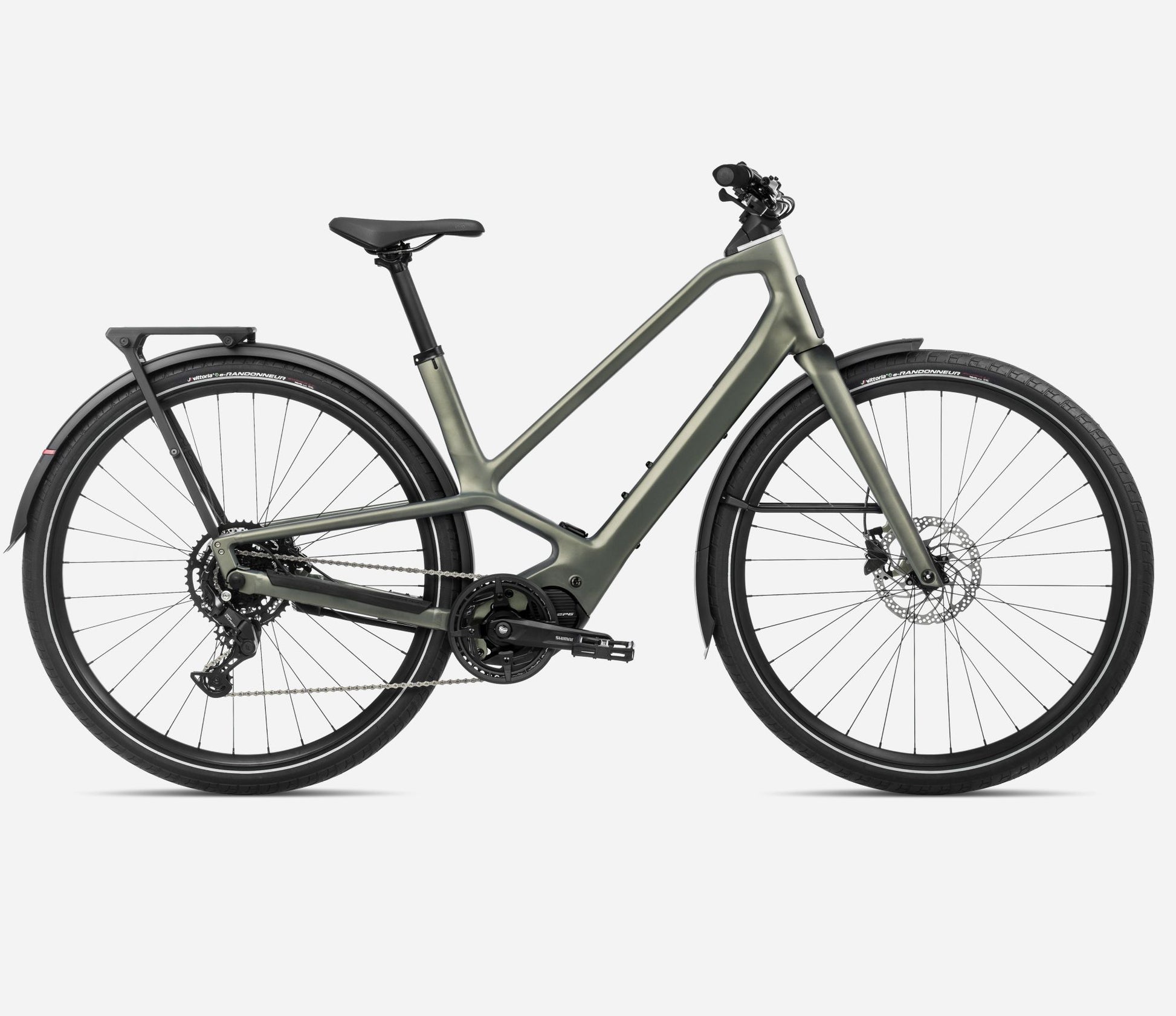

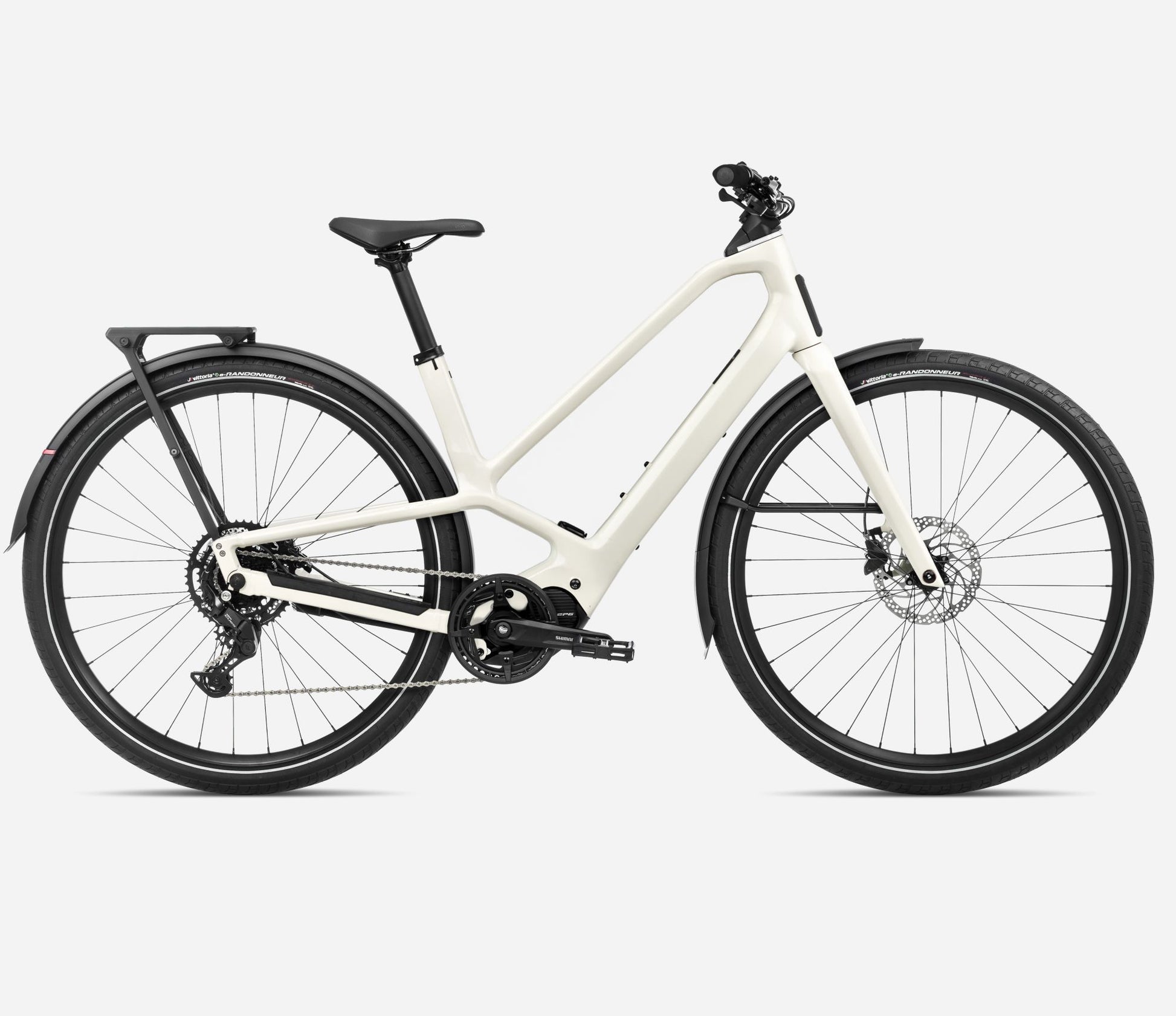

ORBEA DIEM 30

Diem 30, the powerful urban ebike, adds enjoyment to the A to B fun with 9 gears and our light 540Wh battery.

SPECIFICATIONS

FRAME
Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible

FORK
Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

HEADSET
FSA 1-1/2" Integrated Aluminium Cup

BATTERY
Orbea Internal 540Wh (Optional 250 Wh Range Extender)

RANGE EXTENDER
N/A

MOTOR
Shimano EP600

CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A

REMOTE
EN600-L

CHAINRING
Alloy 40t w/chainguard

CRANK
Shimano Steps EM600

SHIFTERS
Shimano Cues SL-U4000

CASSETTE
Shimano CS-LG300 11-46t 9-Speed

REAR DERAILLEUR
Shimano Cues U4000 GS Shadow

CHAIN
KMC eGlide

HANDLEBAR
Orbea Urban, Integrated Light, Rise 54, Width 700

BRAKES
Shimano MT201 Hydraulic Disc

WHEELS
Alloy, Tubeless, 25c, 32H

TYRES
Vittoria e-Randonneur 50-622, Reflective band

PEDALS
VP-537 Black

FRONT CARRIER
N/A

REAR CARRIER
Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg

MUDGUARD
Curana Apollo Orbit 60mm

FRONT POSITION LIGHT
Orbea integrated, USB-C charging point

FRONT LIGHT
Supernova Starstream Pure, Low Beam

REAR LIGHT
Orbea Fender integrated, with alert light

QUICK STAND
Orbea Diem Integrated

BELL
Knog OI Classic

SEATPOST
Alloy 31.6x300mm Offset 0

SADDLE
Selle Royal Vivo Ergo
