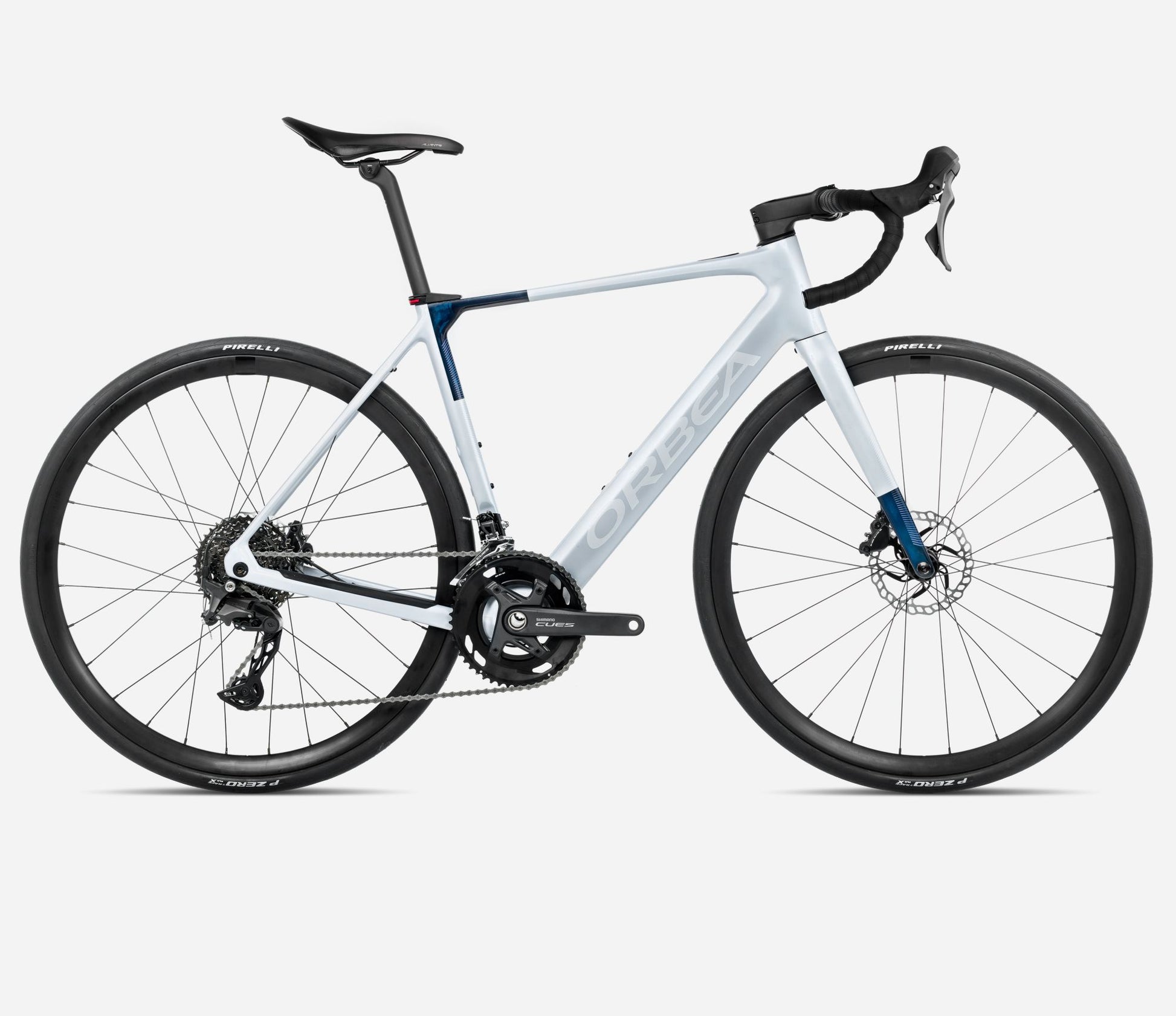

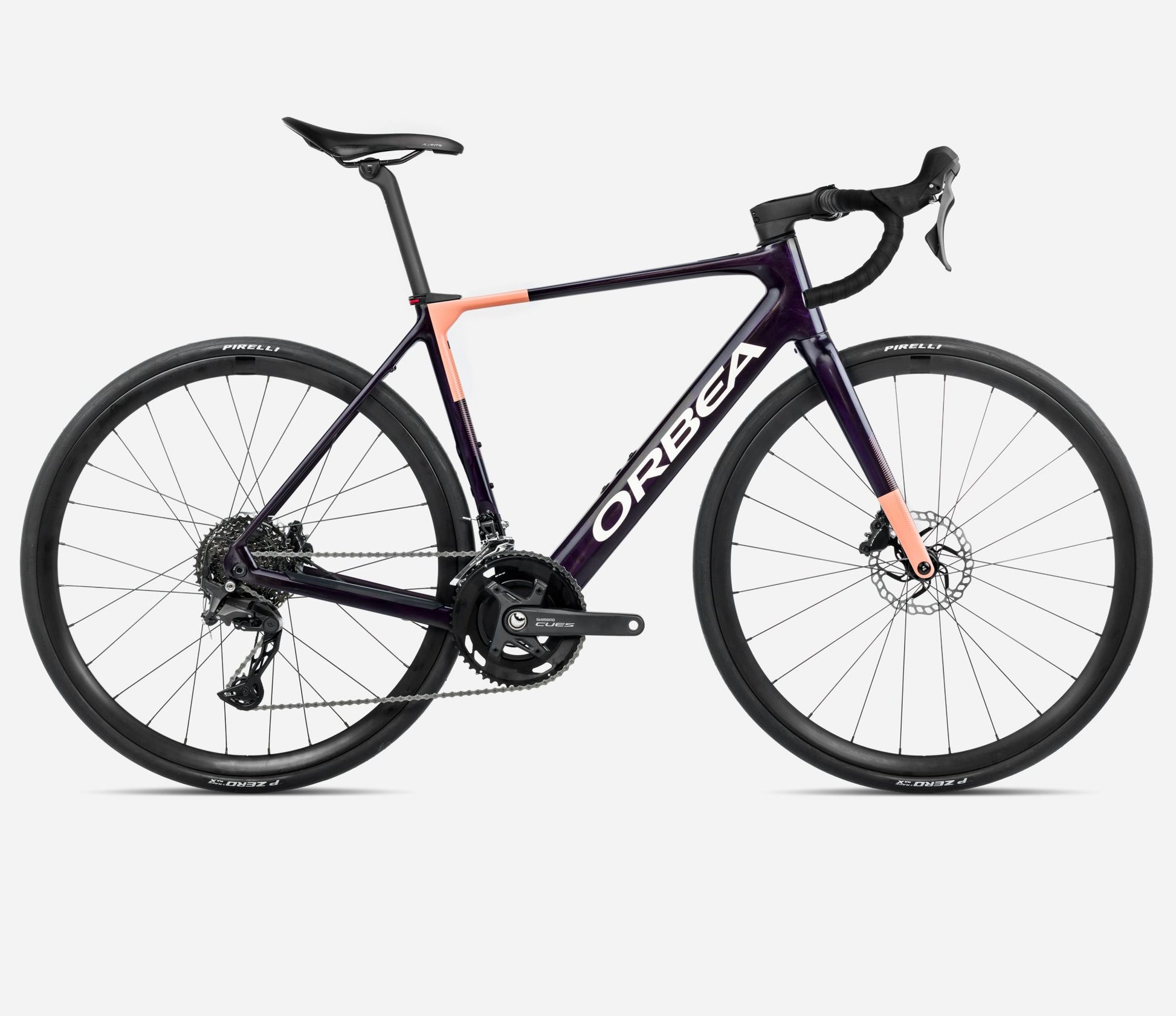

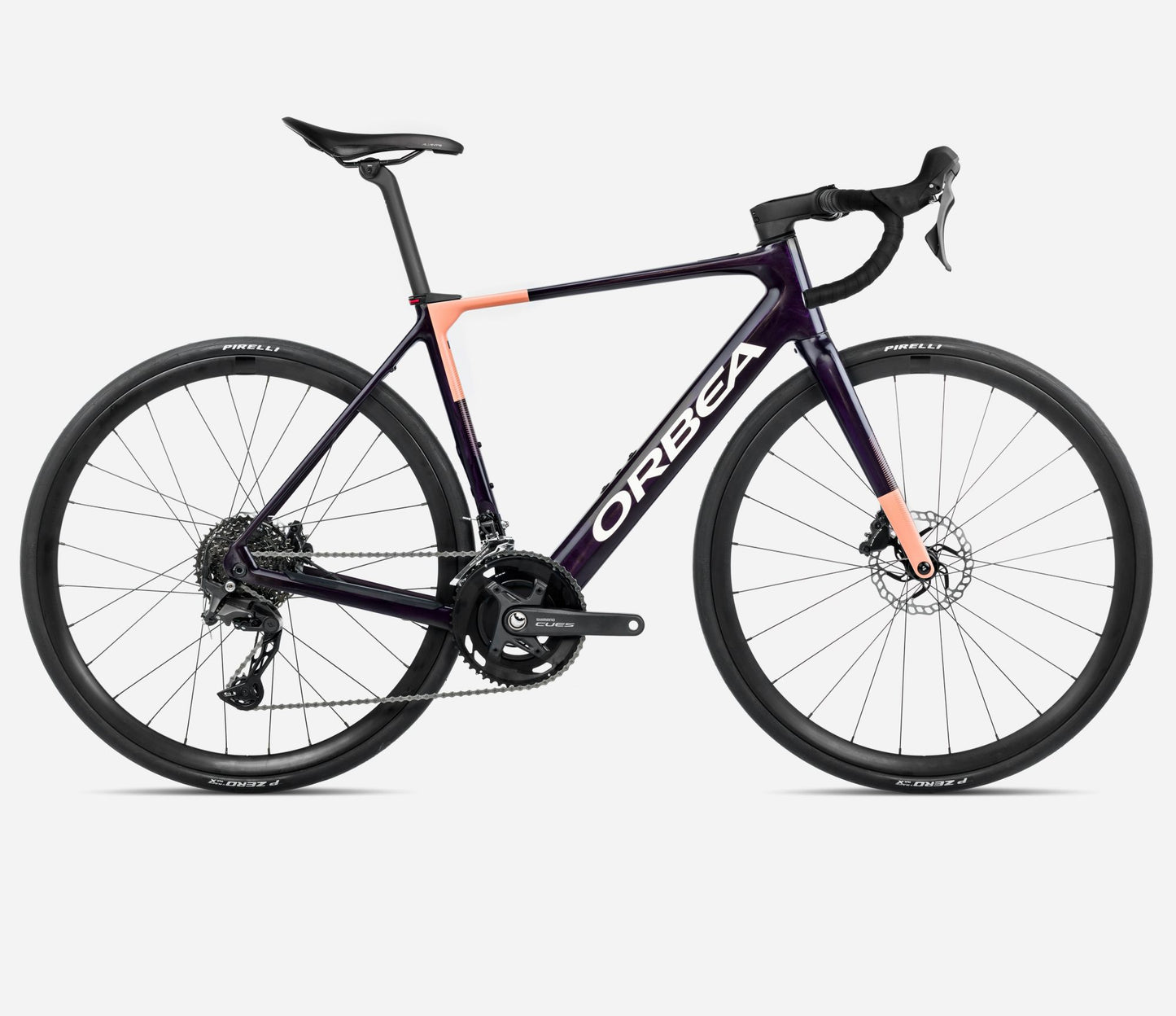

ORBEA GAIN M40 2026

Specs

Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.

Fork
Gain OMR carbon fork, 700x35 maximum tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Battery
Mahle iX350 36V 353Wh

Motor
Mahle motor hub X20, ALC

Display
Mahle Pulsar One monochrome ANT+ LEV

CHARGER
Mahle Active Charger up to 4A

Remote
Mahle ONE Head Unit (BT/ANT+)

Crankset
Shimano Cues U6040 34x50t

Shifters
Shimano U6030

Cassette
Shimano CS-LG400 11-39t 10-Speed

Rear derailleur
Shimano Cues U6020 SGS Shadow

Front derailleur
Shimano Cues U6030

Chain
Shimano LG500

Handlebar
OC Road Performance RP21 Alu SL, Reach 80, Drop 125

Stem
OC Road Performance RP10, -8º

Brakes
Shimano U6030 Hydraulic Disc

Wheels
Alloy, Tubeless, 700c, 21c

Tyres
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite

Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20

Saddle
Fizik Aliante R5

Front light
Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.

Rear light
Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO

Handlebar Tape
Orbea Anti-Slippery/Shock Proof
