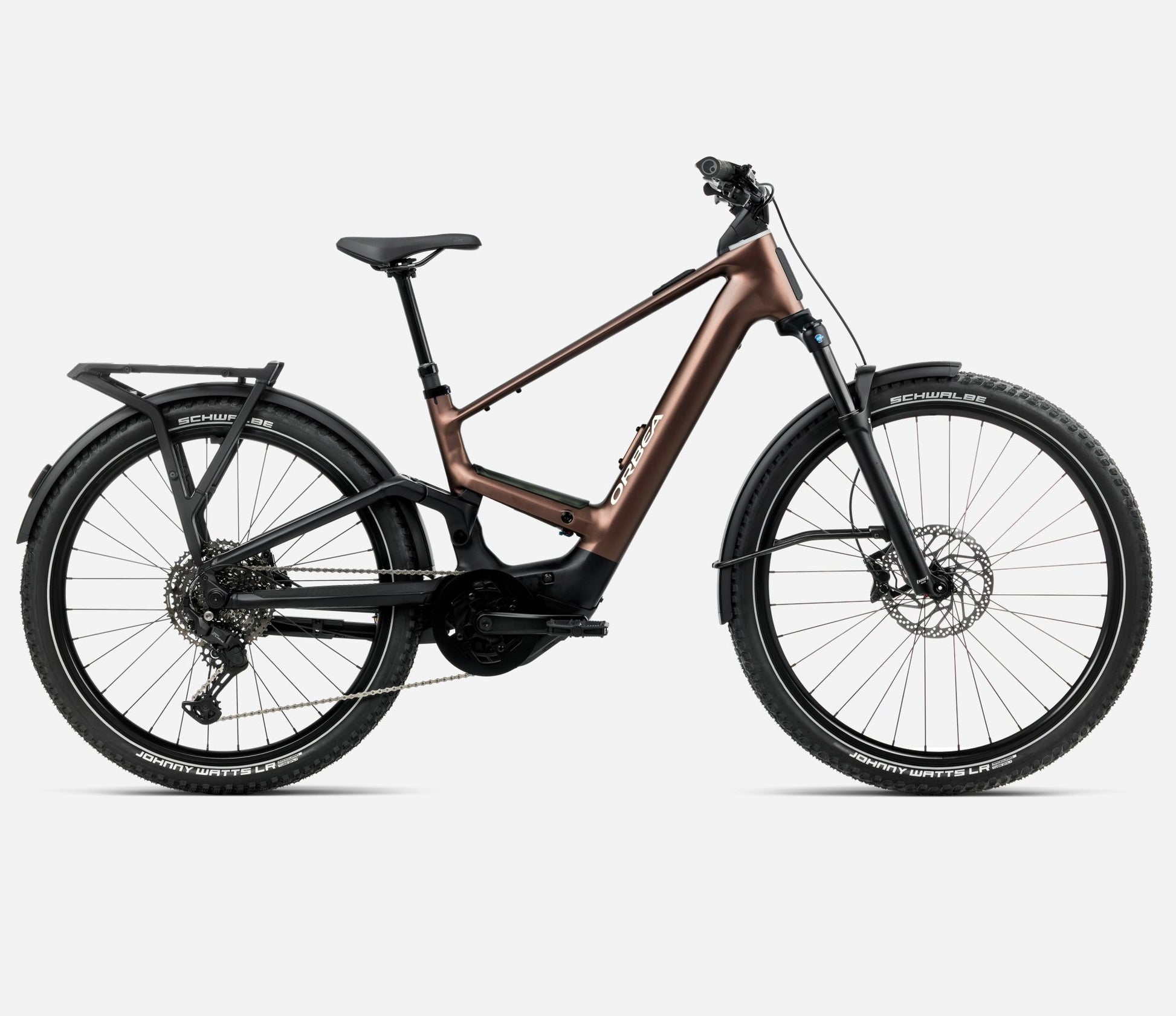

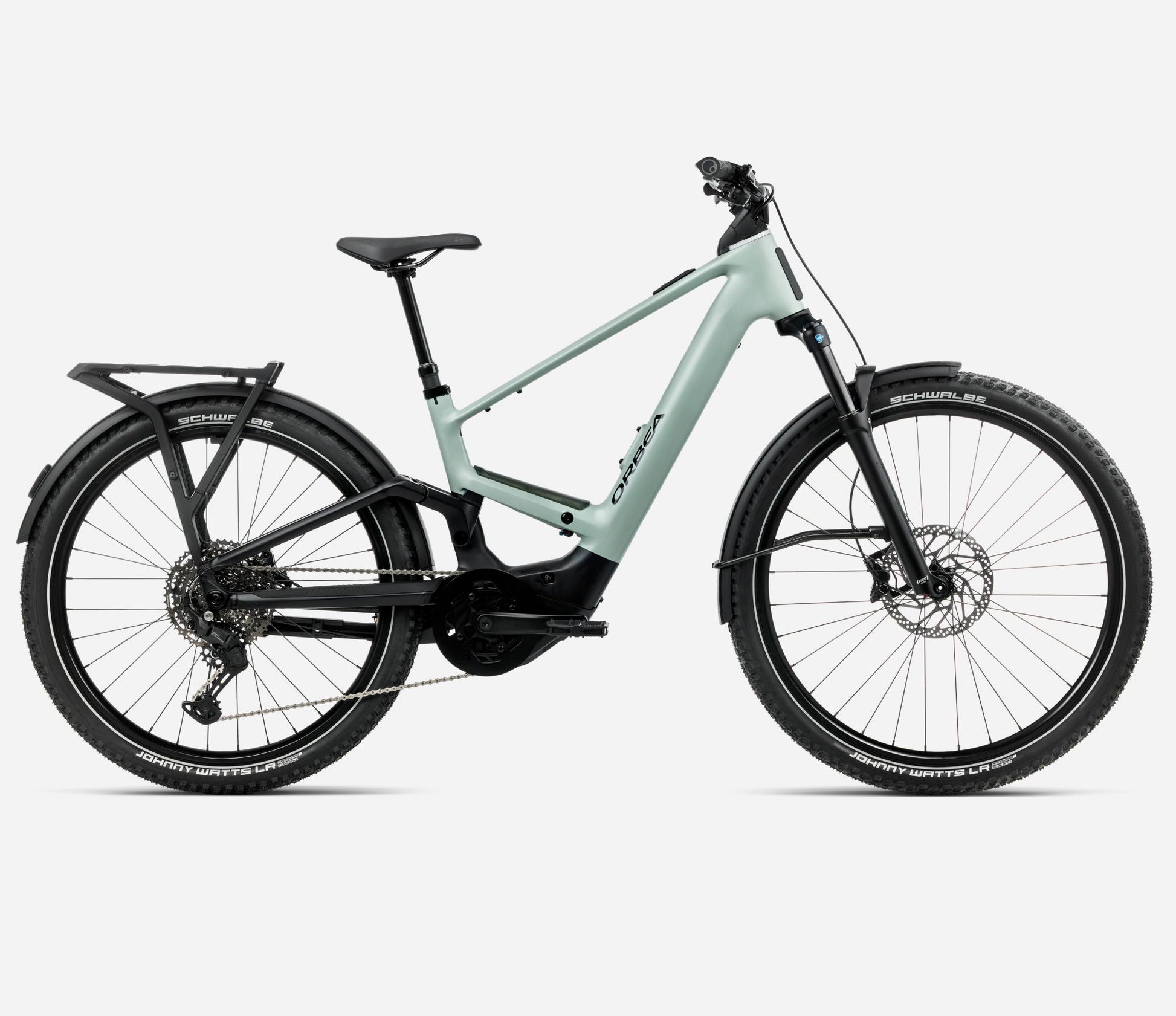

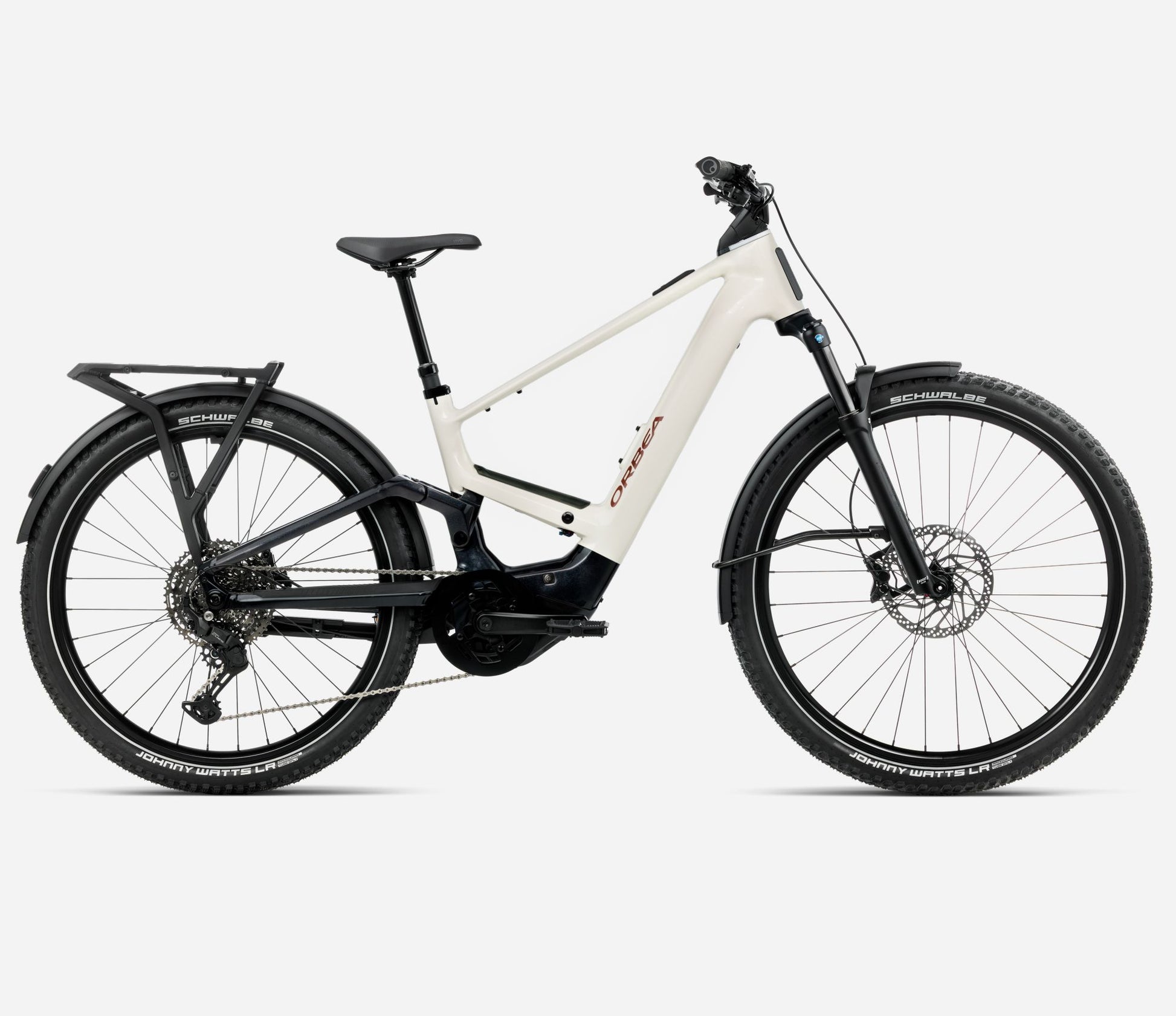

ORBEA MUGA 30 2026

Specs

Frame
Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Carrier compatible.

Shock
Fox Float Performance Trunnion 2-Pos custom tune 165x42.5mm

Fork
SR Suntour Mobie34 120mm Air Q15x110

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Battery
Bosch Powertube 600Wh Horizontal BBP3860

RANGE EXTENDER
N/A

Motor
Bosch Performance Line CX BDU3843

Display
Bosch System Controller BRC3100

CHARGER
Bosch Charger 4A (230V) BPC3400

Remote
Bosch Mini Remote BRC3300

Chainring
Alloy BDU37/38 42t

Crank
Prowheel EB03 alloy

Shifters
Shimano Cues SL-U6000

Cassette
Shimano CS-LG400 11-50t 11-Speed

Rear derailleur
Shimano Cues U6000 GS Shadow

Chain
KMC eGlide

Handlebar
Orbea Urban, Integ. light, Backsweep 9, Rise 30, Width 760

Computer Mount
Smartphone mount SP Connect SPC+

Brakes
Shimano MT420 Hydraulic Disc

Brakes Configuration
N/A

Wheels
Alloy, 26c, 32H

Tyres
Schwalbe Johnny Watts LR, 60-622, Reflective Tape

Tyres
Schwalbe Johnny Watts LR, 60-584, Reflective Tape

Pedals
VP-892 Black with reflectors

Front carrier
N/A

Rear carrier
Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg

Mudguard
Curana Apollo Orbit 70mm

Front Position Light
Orbea Integrated

Front light
Supernova Starstream Pure, Low Beam

Rear light
Supernova TL3 Z

Quick stand
Orbea Integrated

Seatpost
OC Mountain Control MC22, 31.6mm, Dropper

Seatpost Lever
OC Dropper Remote for Sram Matchmaker

Saddle
Selle Royal Vivo Ergo

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
