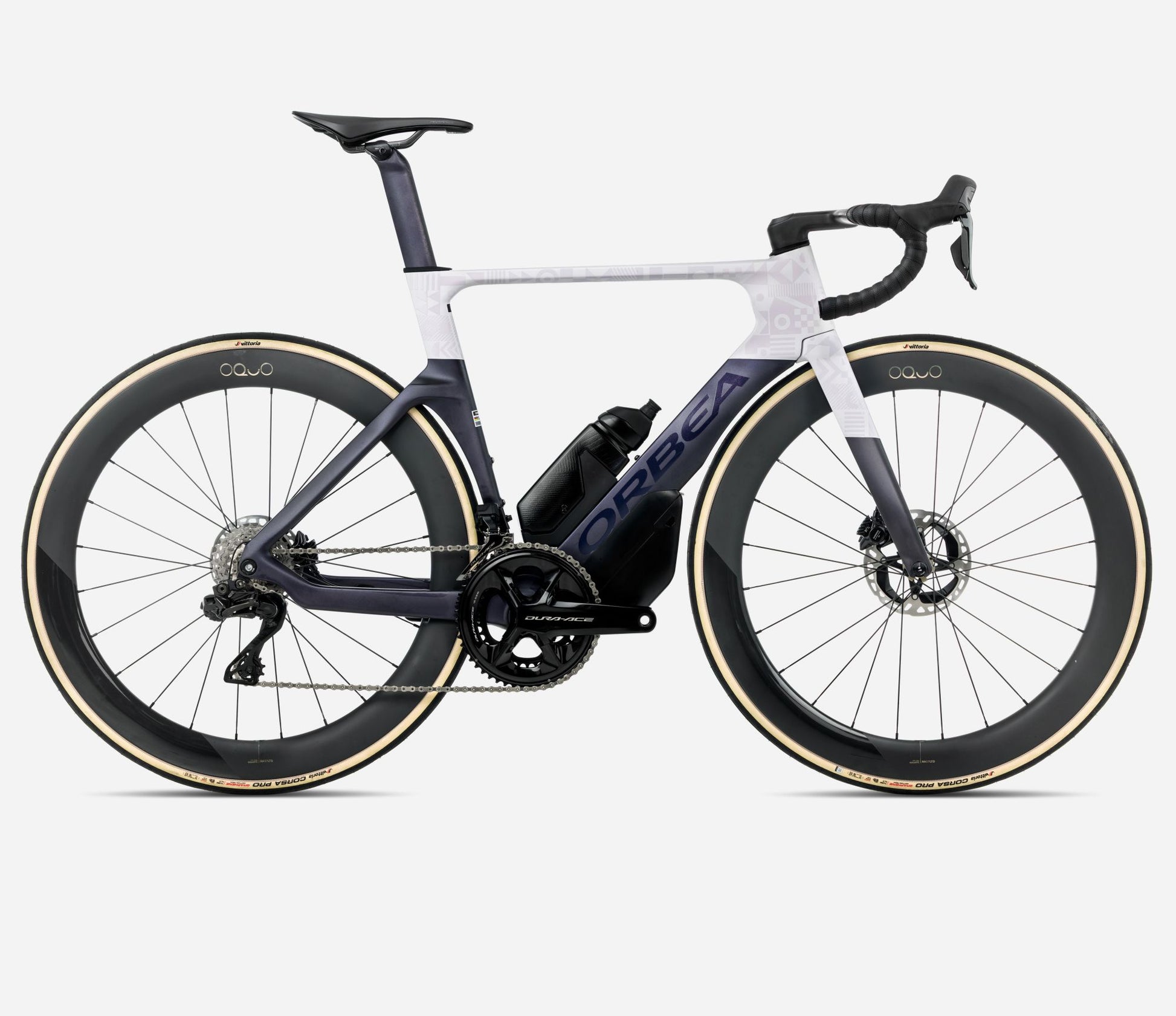

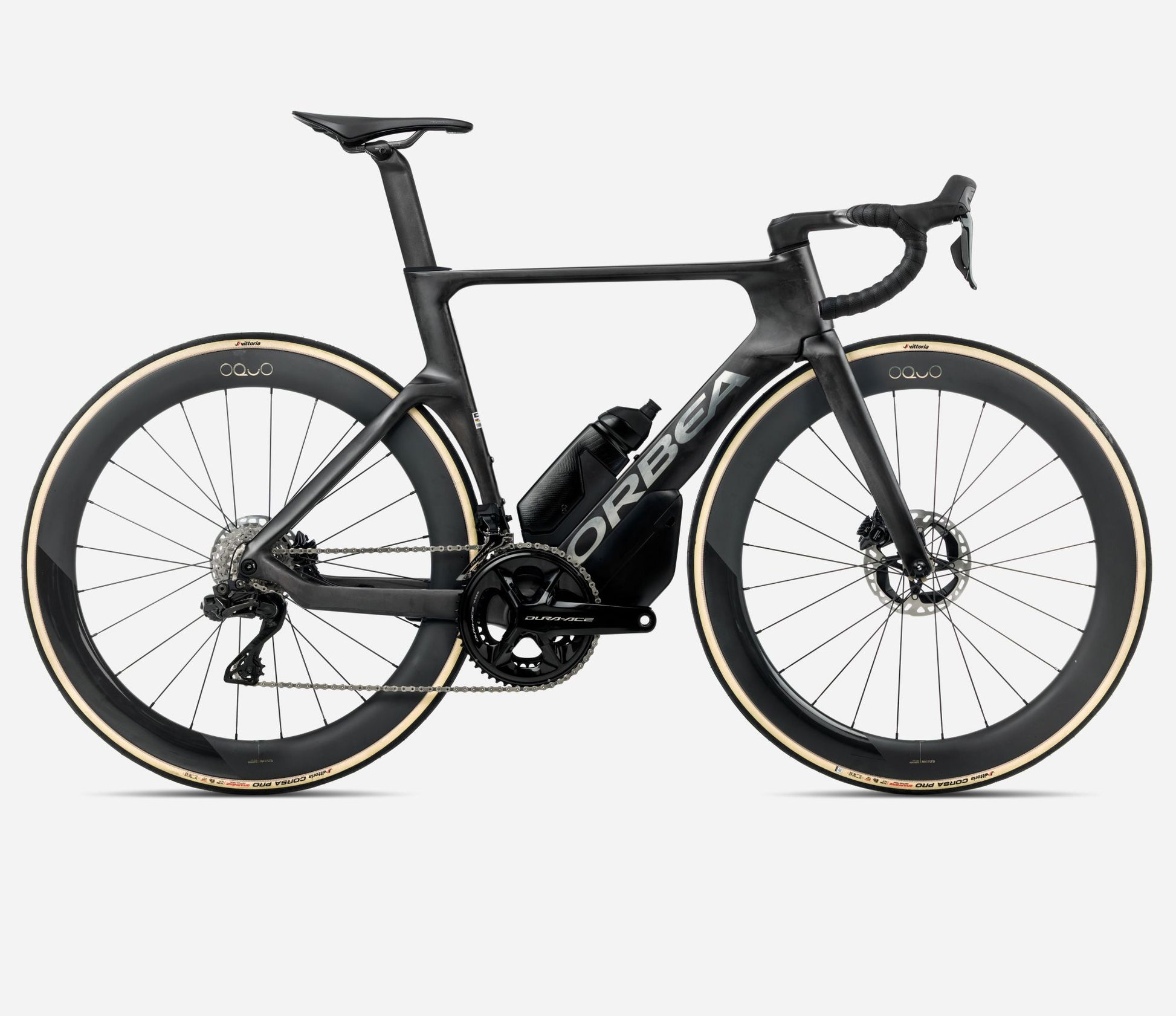

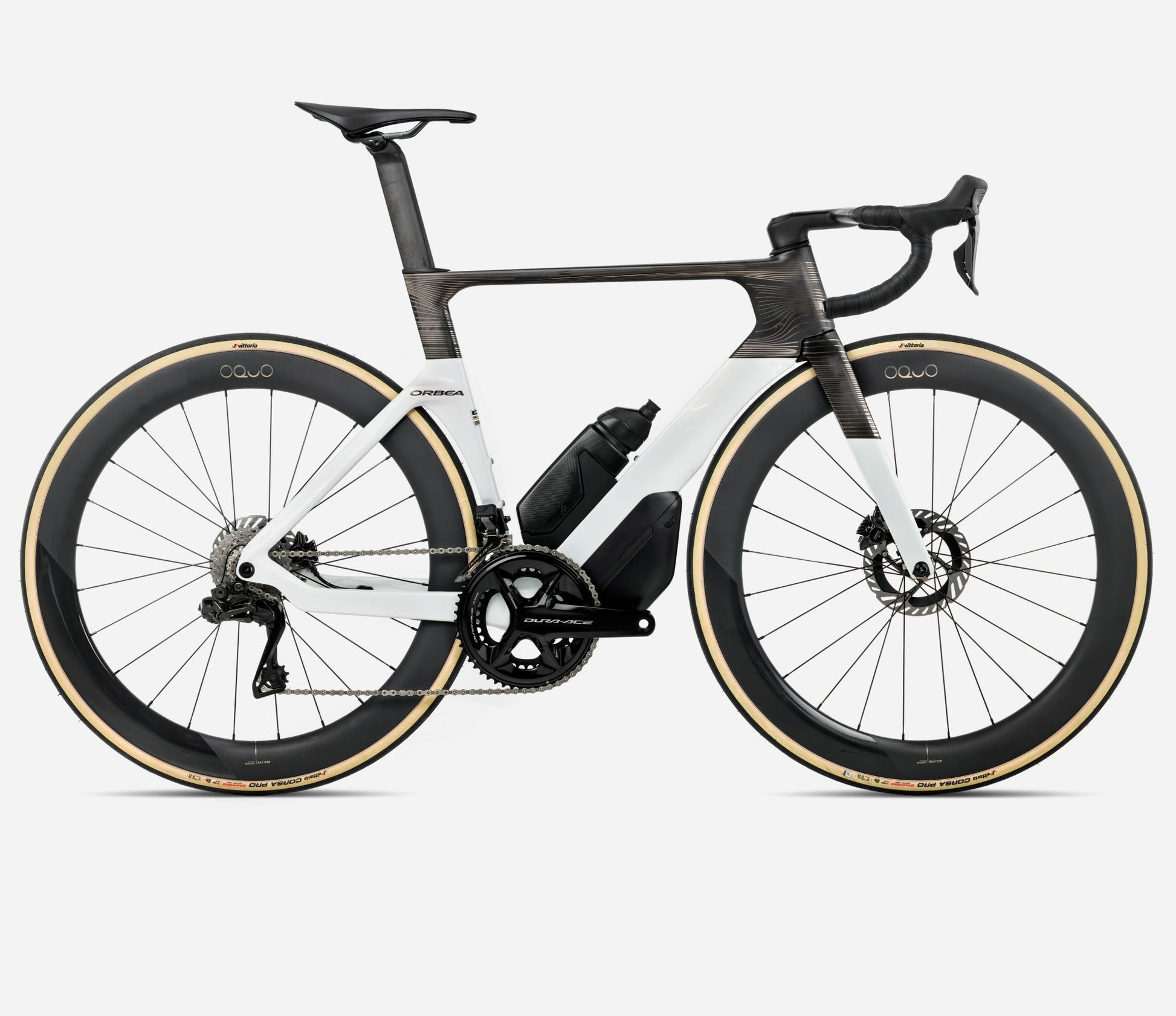

ORBEA ORCA AERO M10i LTD 2026

Specs

Frame
Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.

Fork
Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
Shimano Dura-Ace R9200 36x52t

Shifters
Shimano R9270

Cassette
Shimano Dura-Ace R9200 11-30t 12-Speed

Rear derailleur
Shimano Dura-Ace Di2 R9250

Front derailleur
Shimano Dura-Ace Di2 R9250

Chain
Shimano CN-9100

Handlebar
Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125

Brakes
Shimano R9270 Hydraulic Disc

Rotors
160mm Front /140mm Rear

Wheels
Oquo Road Aero RA57LTD

Tyres
Vittoria Corsa Pro Speed 29-622 TLR wide rim G2.0 OEM HP

Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite

Seatpost
OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment

Saddle
Fizik Vento Antares R1 Carbon Rail 140mm

Handlebar Tape
Orbea Anti-Slippery/Shock Proof

Hydration
OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10

Storage
OC Aero Toolbox TB01PP

Hub
OQUO Hub Name
OQUO Q10
