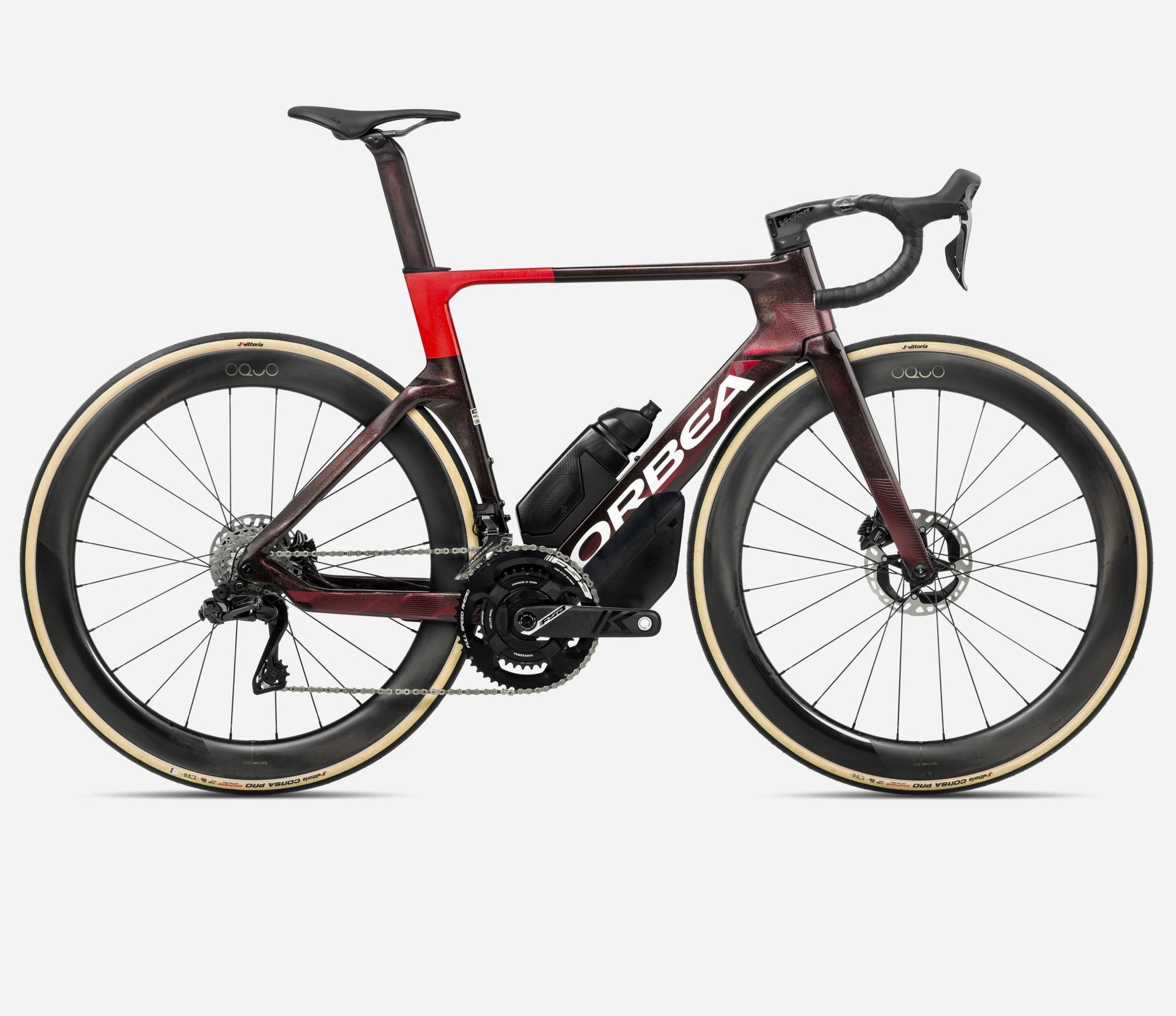

ORBEA ORCA AERO M10i REPLICA 2026

ORBEA ORCA AERO M10i REPLICA 2026

£10,999.00
£10,999.00
Sale Enquire to Order
Tax included.
Size
Colour

To pay by Klarna, add to cart.

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

Specs

Frame
Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.

Fork
Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
FSA Powerbox K-Force Team Edition 36x52t

Shifters
Shimano R9270

Cassette
Shimano Dura-Ace R9200 11-30t 12-Speed

Rear derailleur
Shimano Dura-Ace Di2 R9250

Front derailleur
Shimano Dura-Ace Di2 R9250

Chain
Shimano CN-9100

Handlebar
Vision Metron 5D ACR EVO Integrated, Reach 80mm, Drop 125

Stem
Integrated Vision Metron 5D ACR 3K, -6º

Brakes
Shimano R9270 Hydraulic Disc

Rotors
160mm Front /140mm Rear

Wheels
Oquo Road Performance RP57LTD

Tyres
Vittoria Corsa Pro G2.0 TLR 700x28c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite

Seatpost
OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment

Saddle
Selle Italia SLR Boost Fill Carbon Rail Ø7x9 mm

Handlebar Tape
Orbea Anti-Slippery/Shock Proof

Hydration
OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10

Storage
OC Aero Toolbox TB01PP

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
