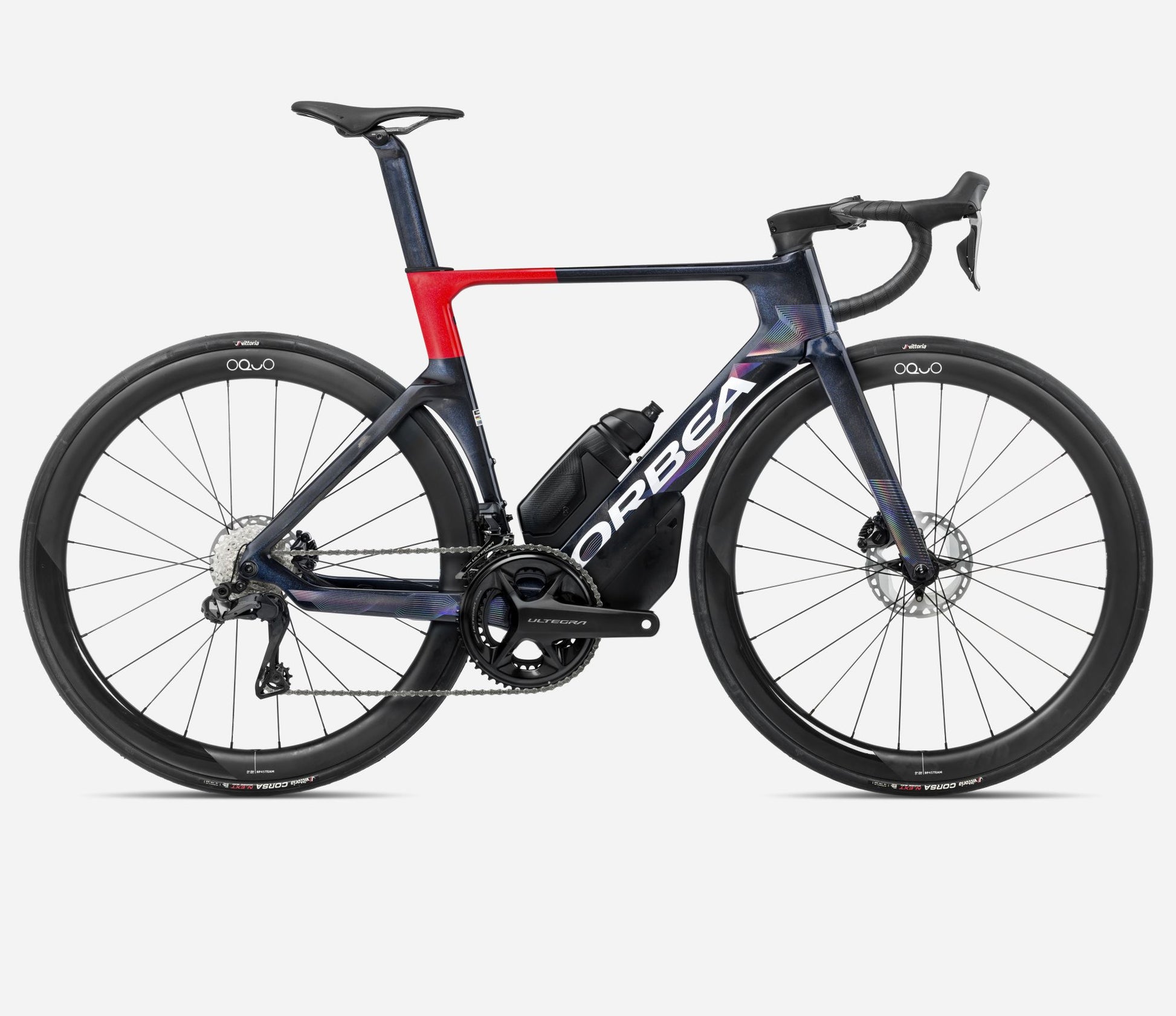

ORBEA ORCA AERO M20i REPLICA 2026

Specs

Frame
Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.

Fork
Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
Shimano Ultegra R8100 36x52t

Shifters
Shimano ST-8170

Cassette
Shimano Ultegra R8100 11-30t 12-Speed

Rear derailleur
Shimano Ultegra Di2 R8150

Front derailleur
Shimano Ultegra Di2 R8150

Chain
Shimano M8100

Handlebar
OC Road Aero RA11 Carbon, Reach 80, Drop 125

Stem
OC Road Performance RP10, -8º

Brakes
Shimano R8170 Hydraulic Disc

Rotors
160mm Front /140mm Rear

Wheels
Oquo Road Performance RP45TEAM

Tyres
Vittoria Corsa N.Ext G2.0 Foldable 700x28c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite

Seatpost
OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment

Saddle
Selle Italia SLR Boost Fill Carbon Rail Ø7x9 mm

Handlebar Tape
Orbea Anti-Slippery/Shock Proof

Hydration
OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10

Storage
OC Aero Toolbox TB01PP

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
