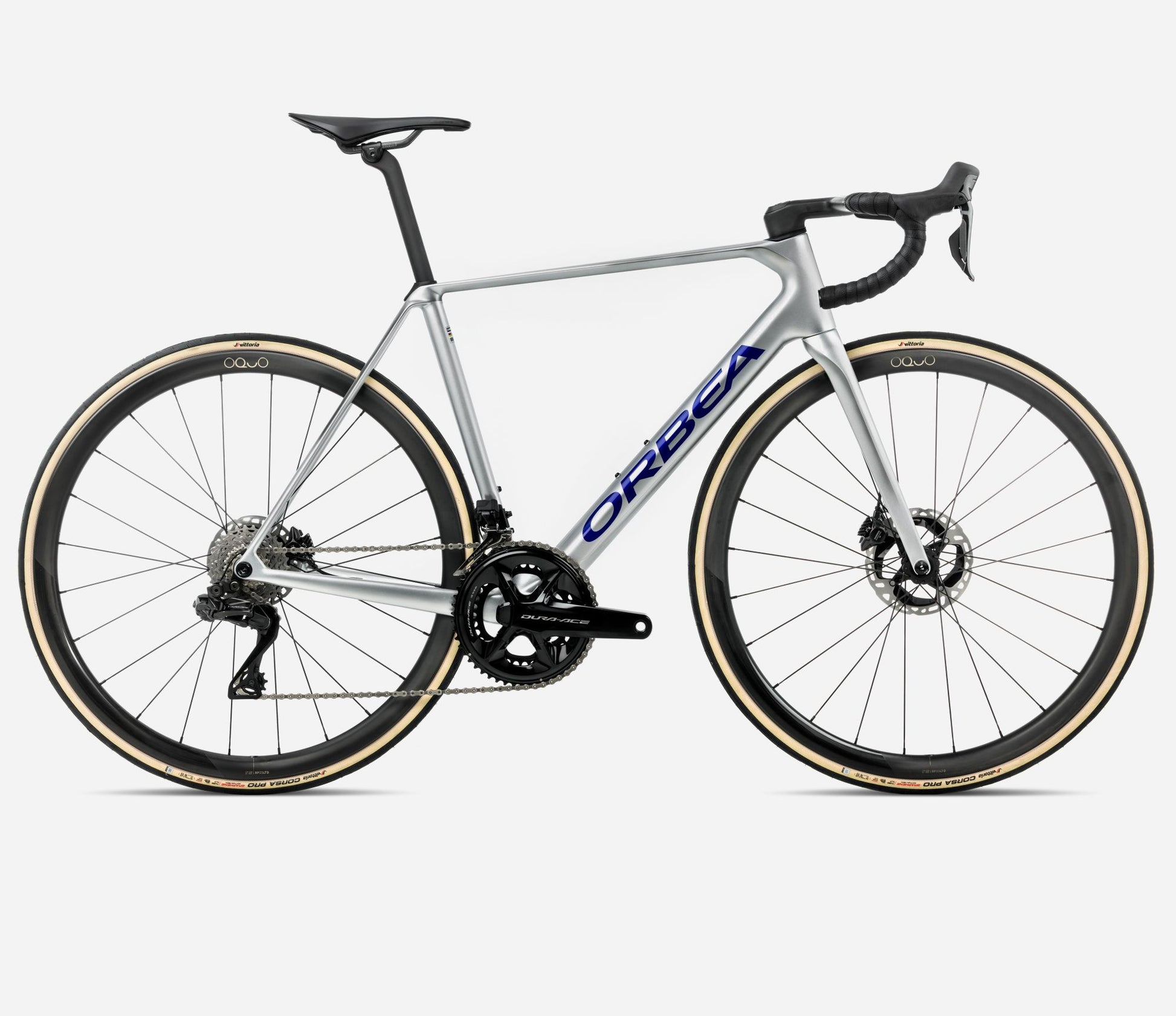

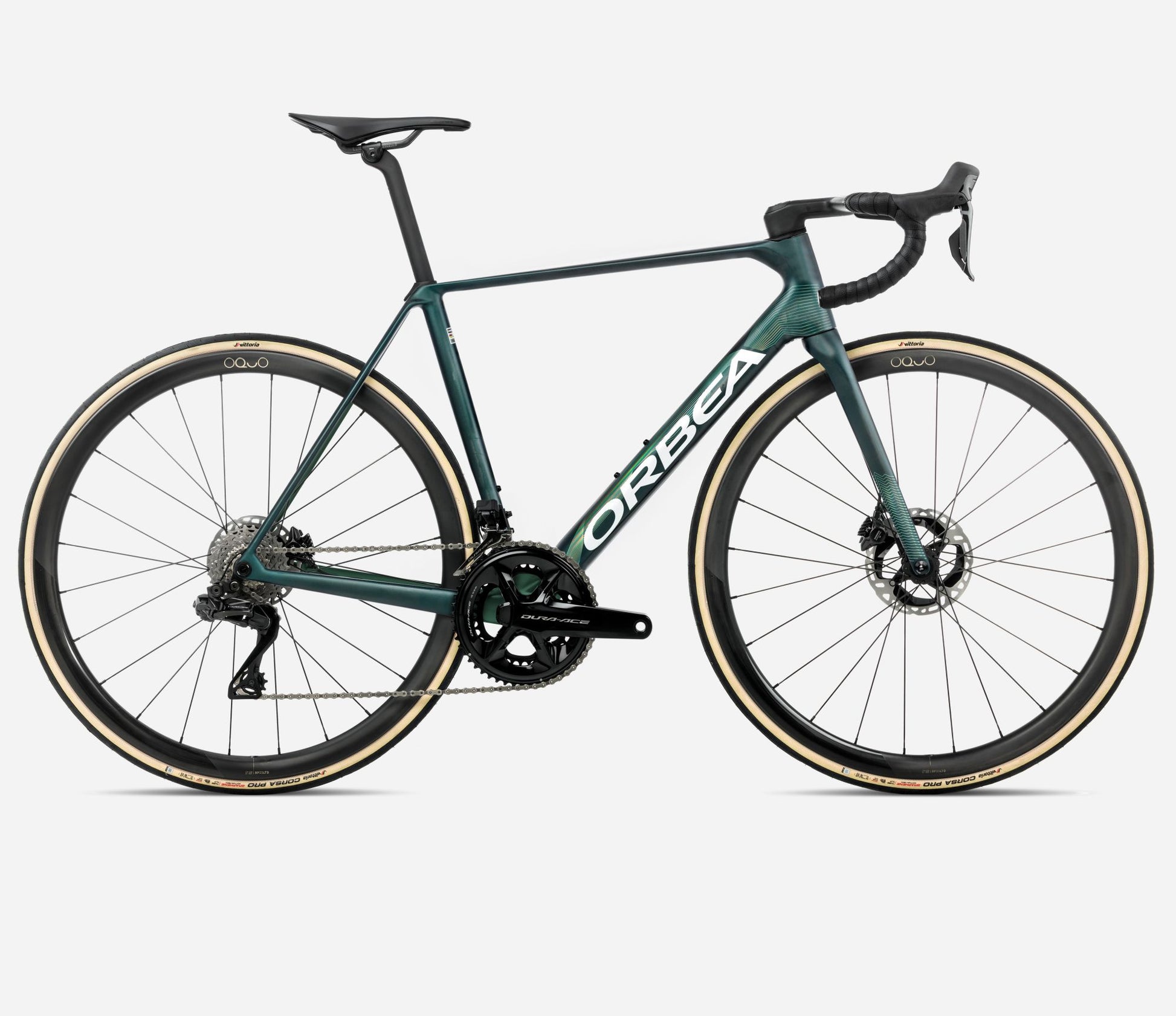

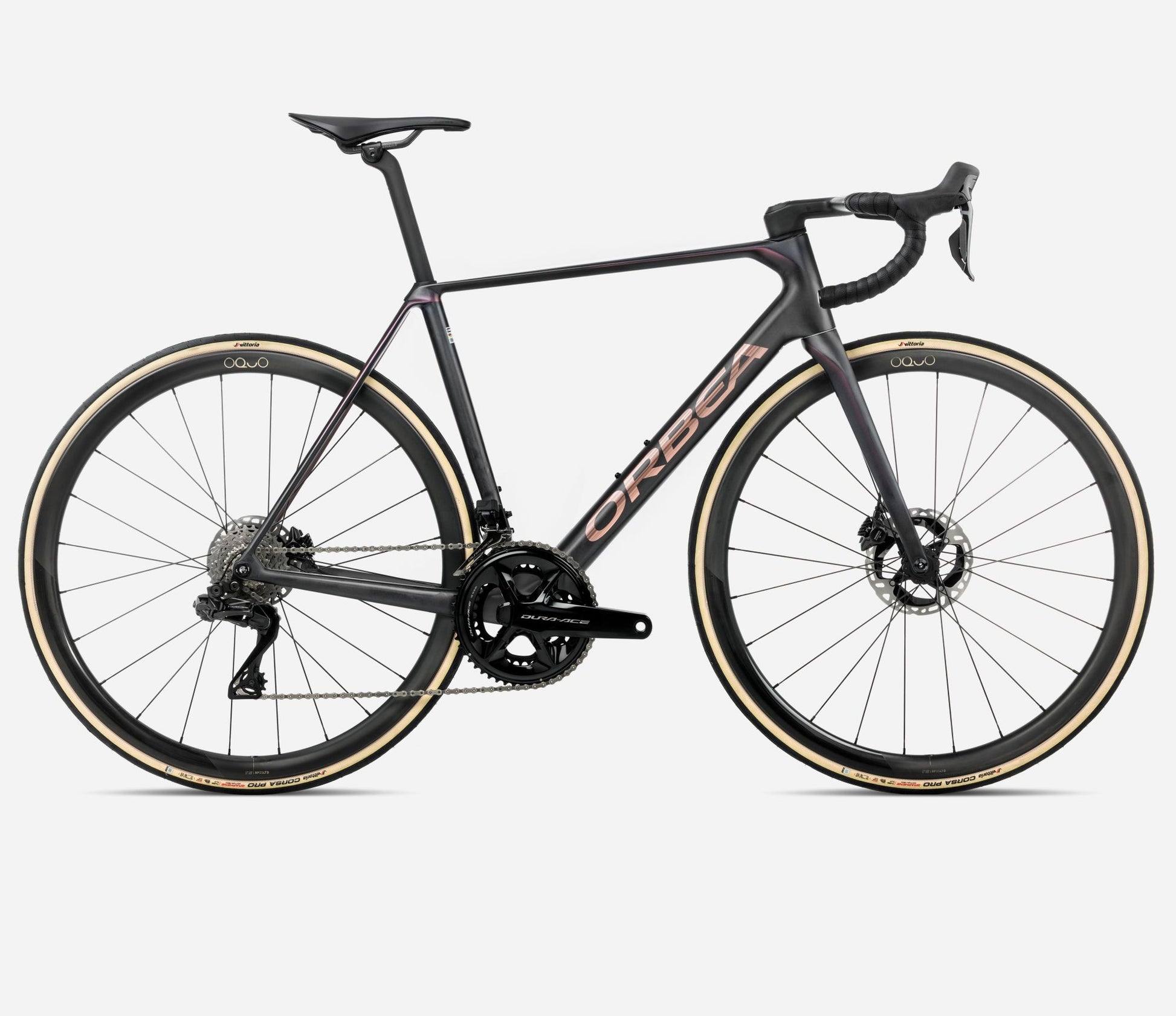

ORBEA ORCA M10iLTD PWR 2026

Specs

Frame
Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.

Fork
Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
Shimano Dura-Ace R9200-P Power Meter 36x52t

Shifters
Shimano R9270

Cassette
Shimano Dura-Ace R9200 11-30t 12-Speed

Rear derailleur
Shimano Dura-Ace Di2 R9250

Front derailleur
Shimano Dura-Ace Di2 R9250

Chain
Shimano CN-9100

Handlebar
Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125

Brakes
Shimano R9270 Hydraulic Disc

Rotors
160mm Front /140mm Rear

Wheels
Oquo Road Performance RP35LTD

Tyres
Vittoria Corsa Pro Speed 29-622 TLR wide rim G2.0 OEM HP

Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite

Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20

Saddle
Fizik Vento Antares R1 Carbon Rail 140mm

Handlebar Tape
Orbea Anti-Slippery/Shock Proof

Hub
OQUO Hub Name
OQUO Q10
