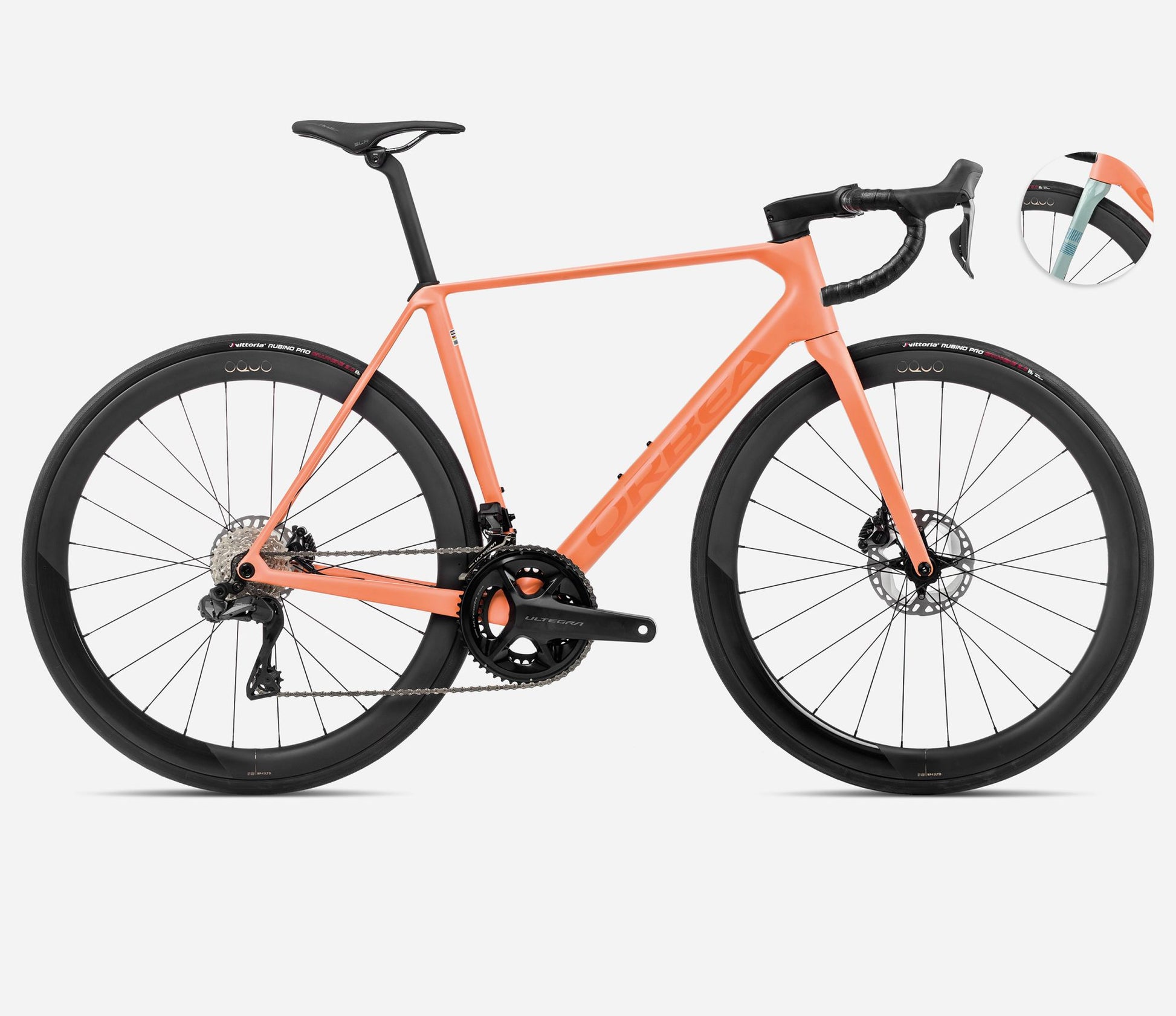

ORBEA ORCA M20ILTD 2024

SPECIFICATIONS

FRAME
Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, power meter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.

FORK
Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.

HEADSET
FSA 1-1/2" Integrated Aluminium Cup

CRANKSET
Shimano Ultegra R8100 34x50t

SHIFTERS
Shimano ST-8170

CASSETTE
Shimano Ultegra R8100 11-30t 12-Speed

REAR DERAILLEUR
Shimano Ultegra Di2 R8150

FRONT DERAILLEUR
Shimano Ultegra Di2 R8150

CHAIN
Shimano M8100

HANDLEBAR
OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole

STEM
OC Road Performance RP10, -8º

BRAKES
Shimano R8170 Hydraulic Disc

ROTORS
160mm Front /140mm Rear

WHEELS
Oquo Road Performance RP45LTD, carbon Mini Hook rim, 45mm profile, Zipp Cognition VS2 hub, 21mm internal width, Sapim CX-Ray spokes, 700C

TYRES
Vittoria Corsa Pro G2.0 TLR 700x28c

FRONT WHEEL AXLE
Orbea Thru Axle 12x100mm M12x2 P1 Lite

REAR WHEEL AXLE
Orbea Thru Axle 12x142mm M12x2 P1 Lite

SEATPOST
OC Performance XP10-S Carbon, 27.2mm, Setback 20

SADDLE
Fizik Vento Antares R3 Kium Rail 140mm

HANDLEBAR TAPE
Lizard DSP 2.5mm
