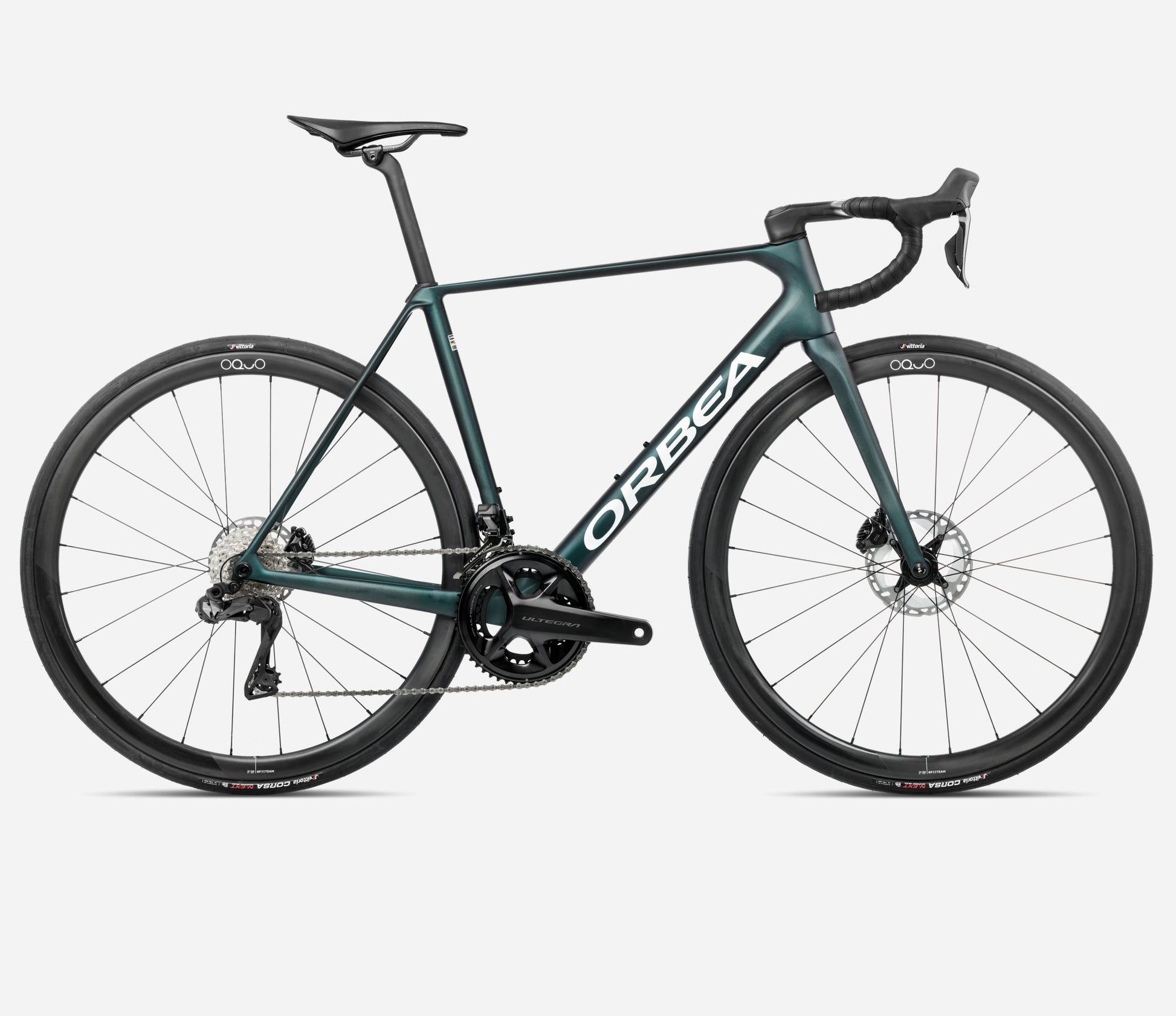

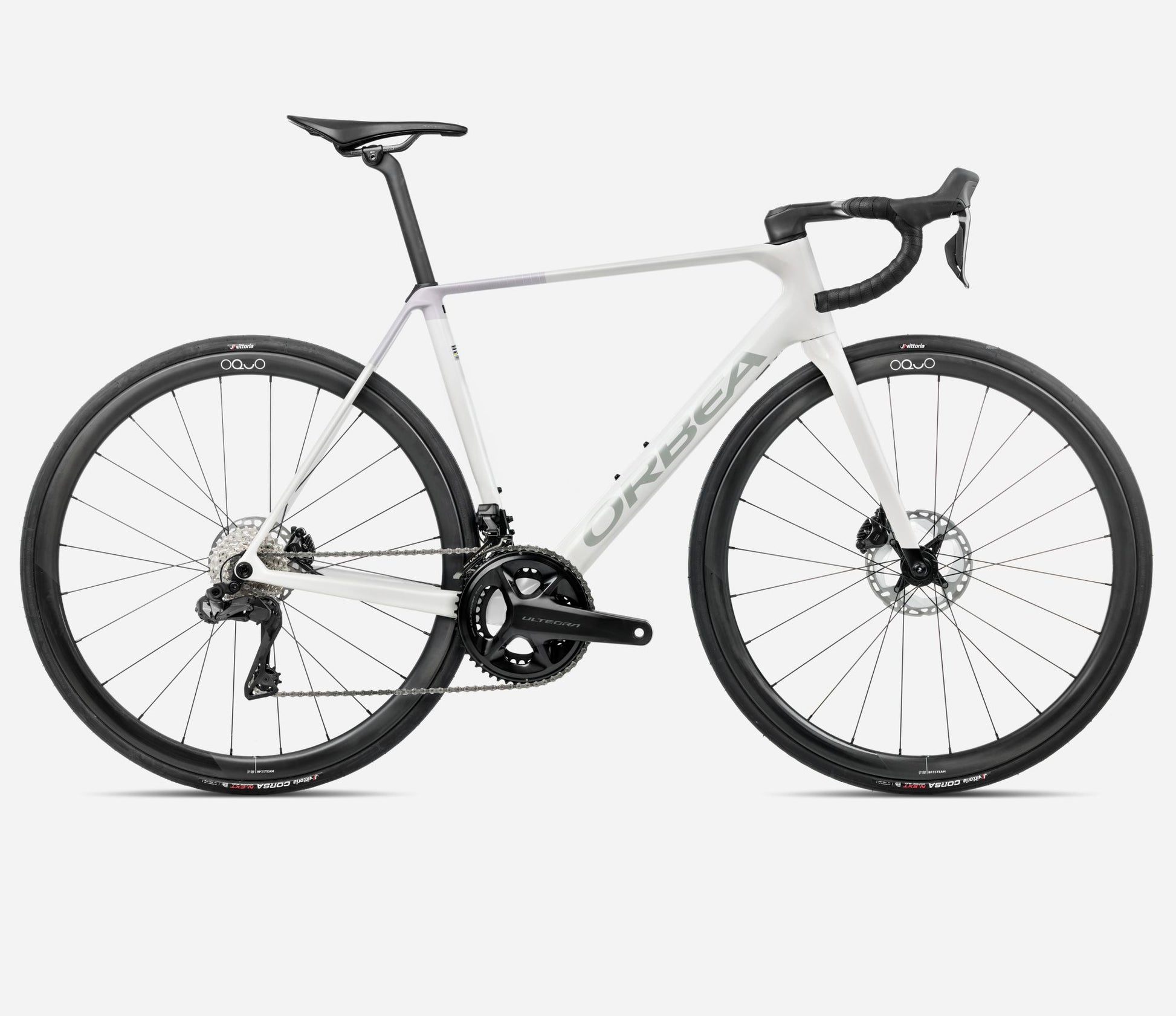

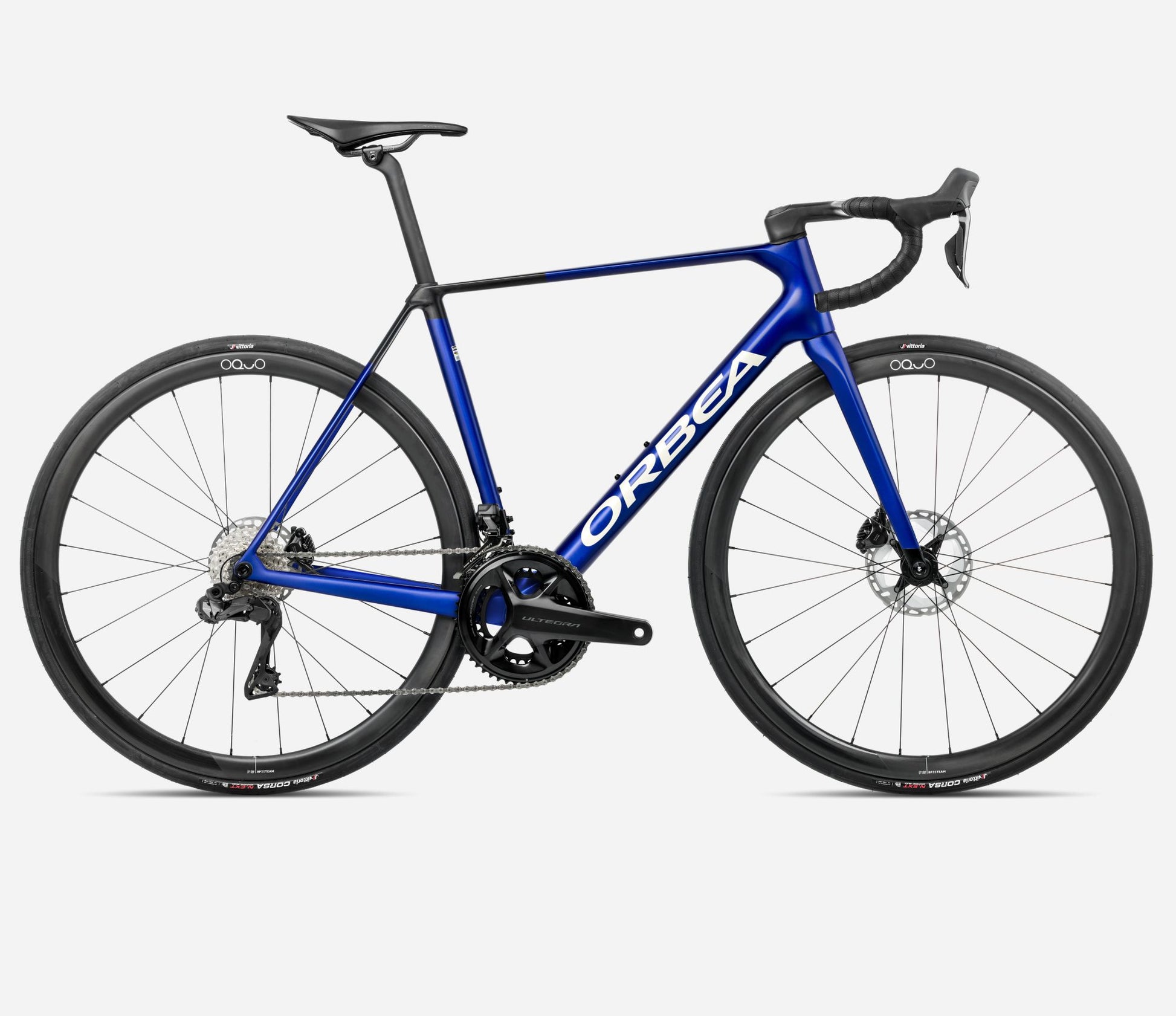

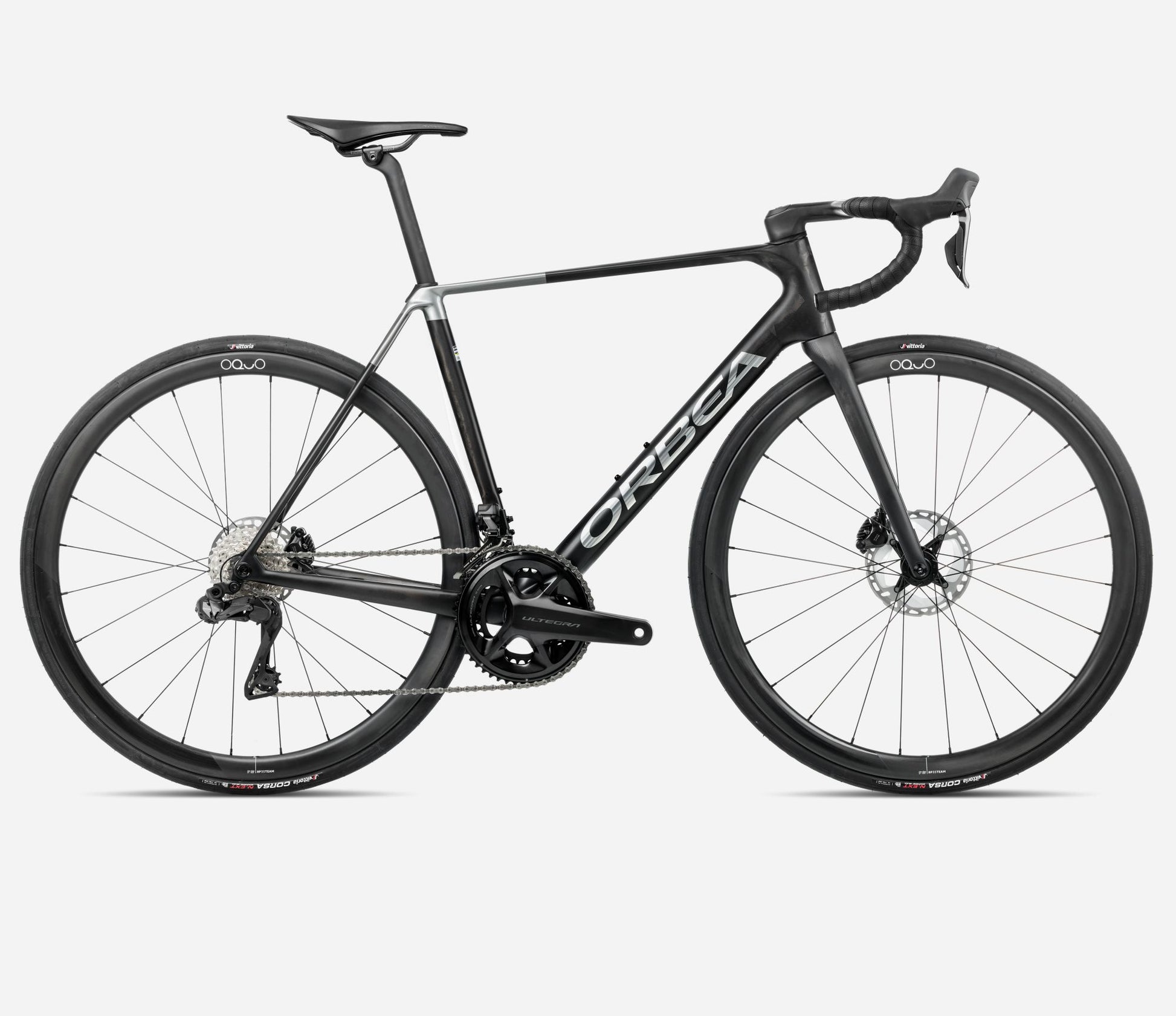

ORBEA ORCA M20iTEAM 2026

Specs

Frame
Orbea Orca carbon OMR 2026, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.

Fork
Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
Shimano Ultegra R8100 34x50t

Shifters
Shimano ST-8170

Cassette
Shimano Ultegra R8100 11-30t 12-Speed

Rear derailleur
Shimano Ultegra Di2 R8150

Front derailleur
Shimano Ultegra Di2 R8150

Chain
Shimano M8100

Handlebar
Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125

Brakes
Shimano R8170 Hydraulic Disc

Rotors
160mm Front /140mm Rear

Wheels
Oquo Road Performance RP35TEAM

Tyres
Vittoria Corsa N.Ext G2.0 Foldable 700x28c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite

Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20

Saddle
Fizik Vento Antares R7 Alloy Rail 140mm

Handlebar Tape
Orbea Anti-Slippery/Shock Proof

Storage
OC Toolbox TB02PP
