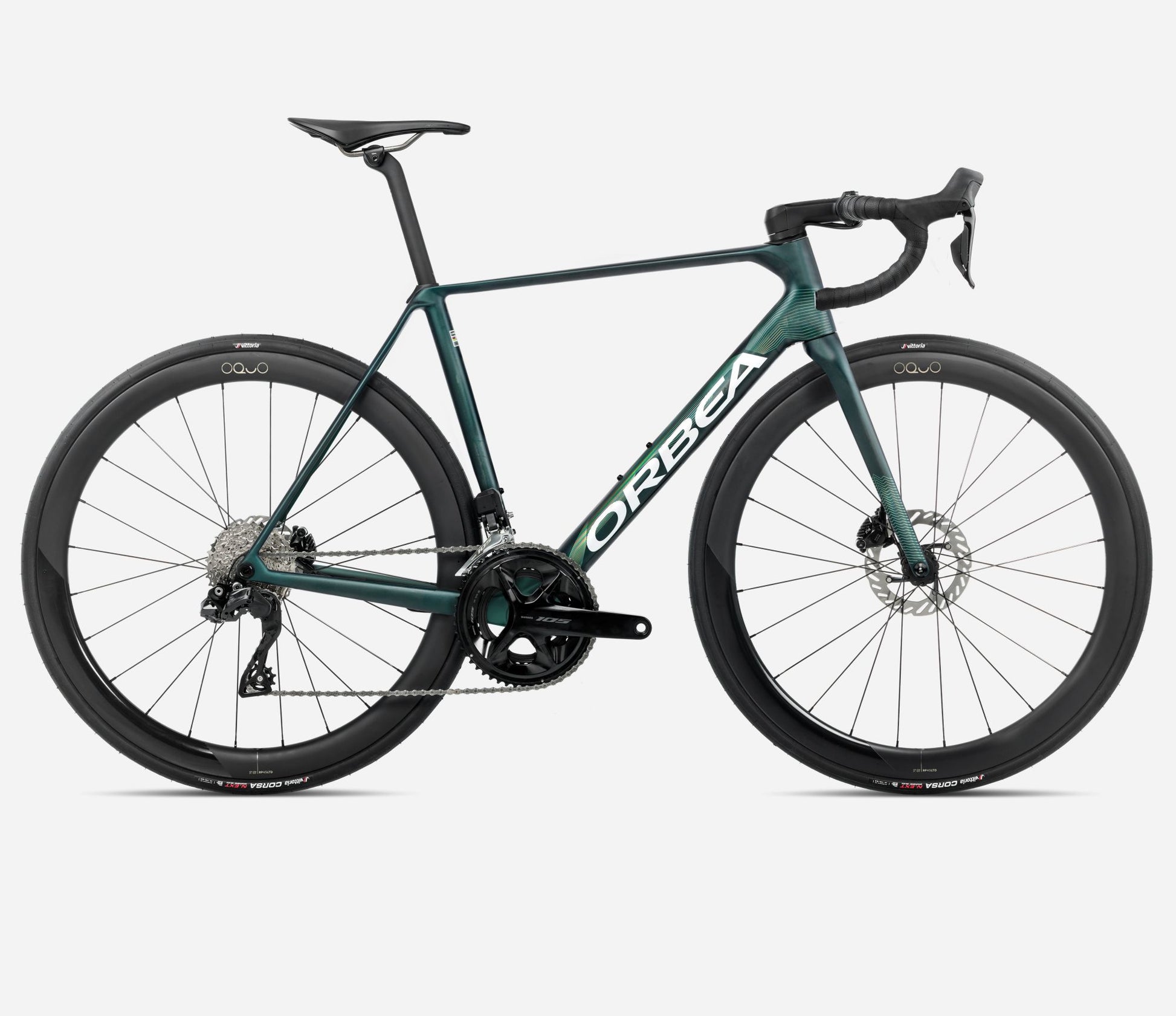

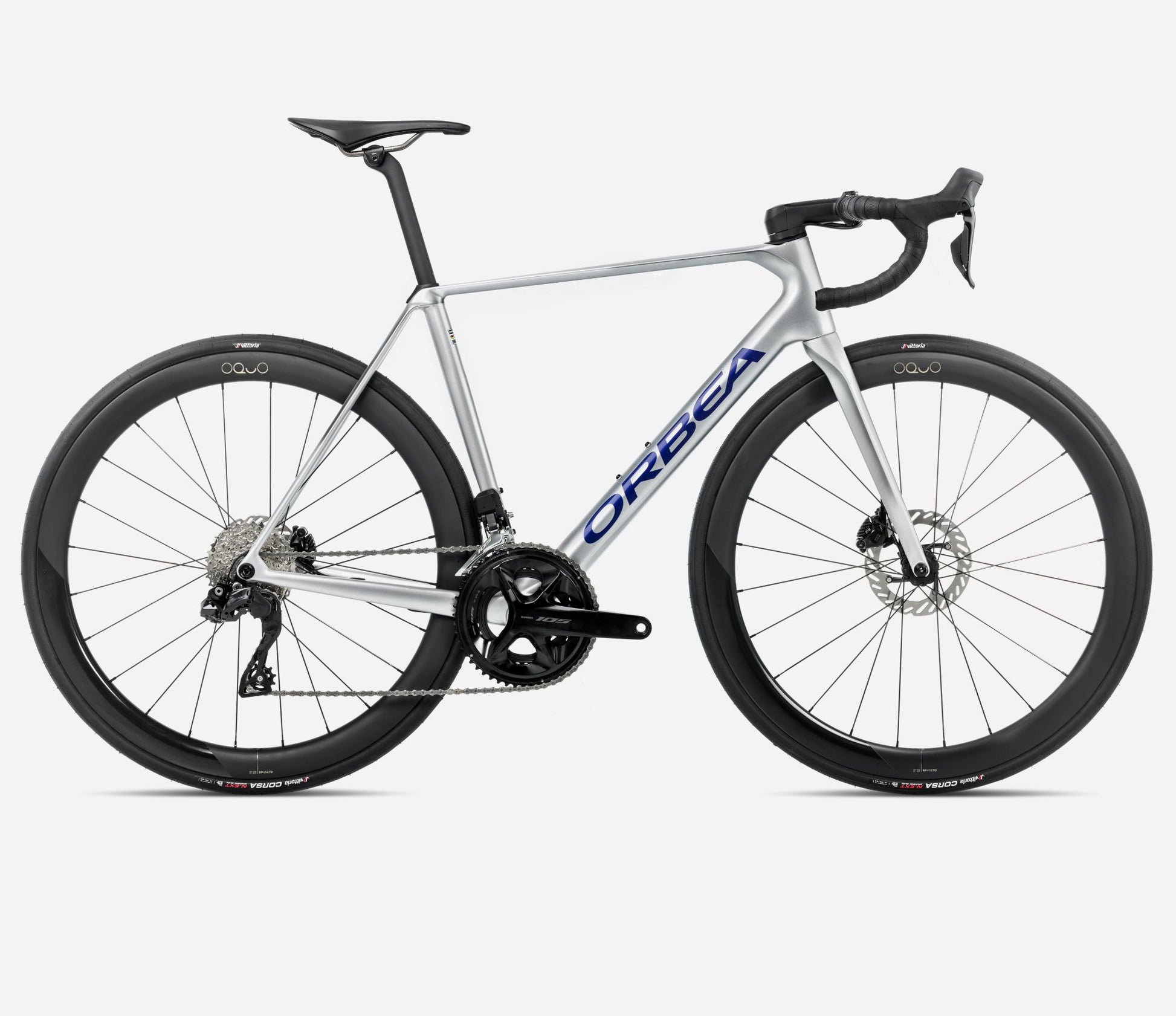

ORBEA ORCA M30iLTD PWR 2026

Specs

Frame
Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.

Fork
Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
Shimano 105 R7100 36x52t w/left side 4iiii Power Meter

Shifters
Shimano Di2 R7170

Cassette
Shimano 105 R7100 11-34t 12-Speed

Rear derailleur
Shimano 105 Di2 R7150

Front derailleur
Shimano 105 Di2 R7150

Chain
Shimano M6100

Handlebar
OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole

Stem
OC Road Performance RP11, -8º

Brakes
Shimano R7170 Hydraulic Disc

Rotors
160mm Front /140mm Rear

Wheels
Oquo Road Performance RP45LTD

Tyres
Vittoria Corsa N.Ext G2.0 Foldable 700x28c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite

Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20

Saddle
Fizik Vento Antares R3 Kium Rail 140mm

Handlebar Tape
Orbea Anti-Slippery/Shock Proof

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
