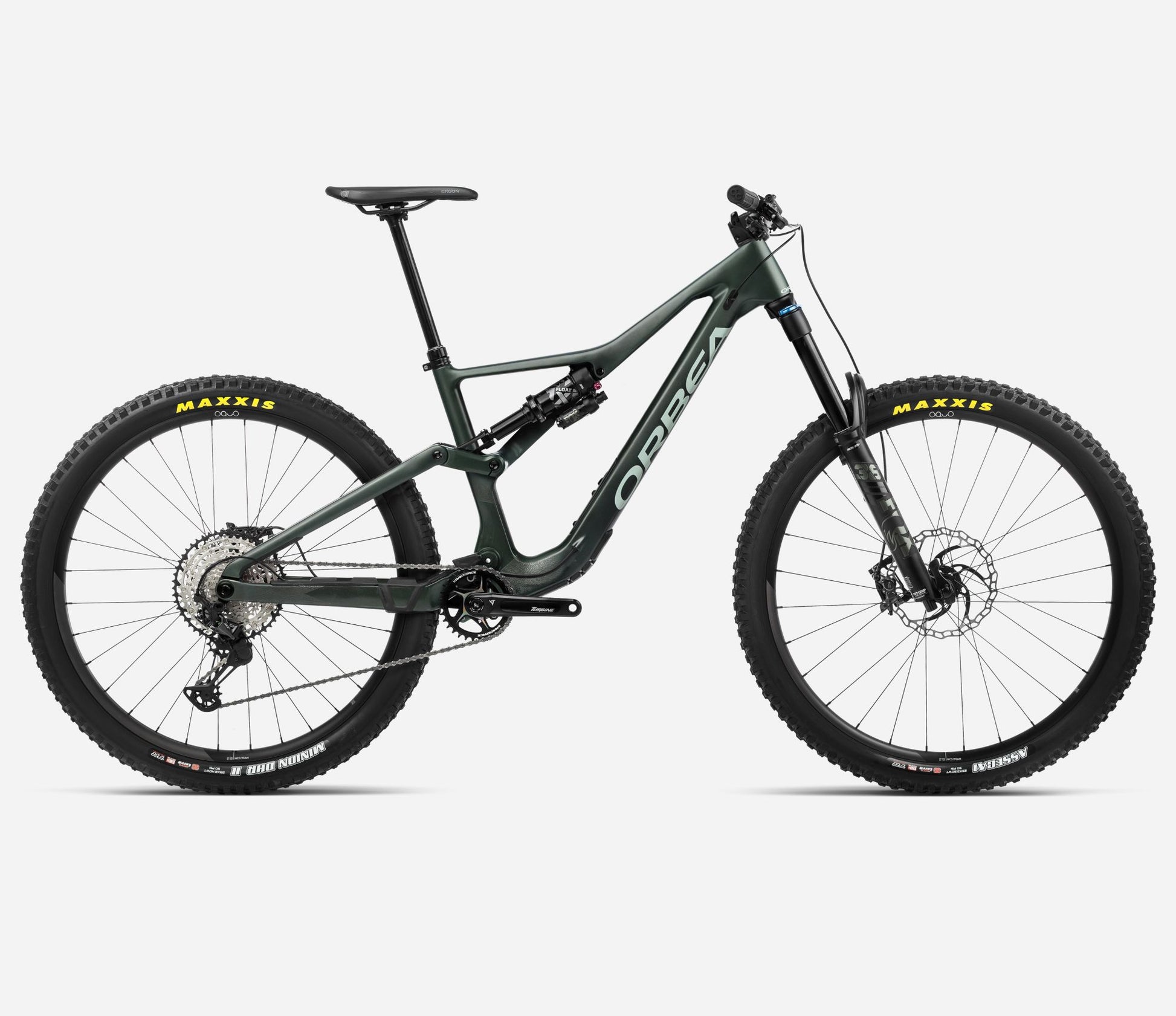

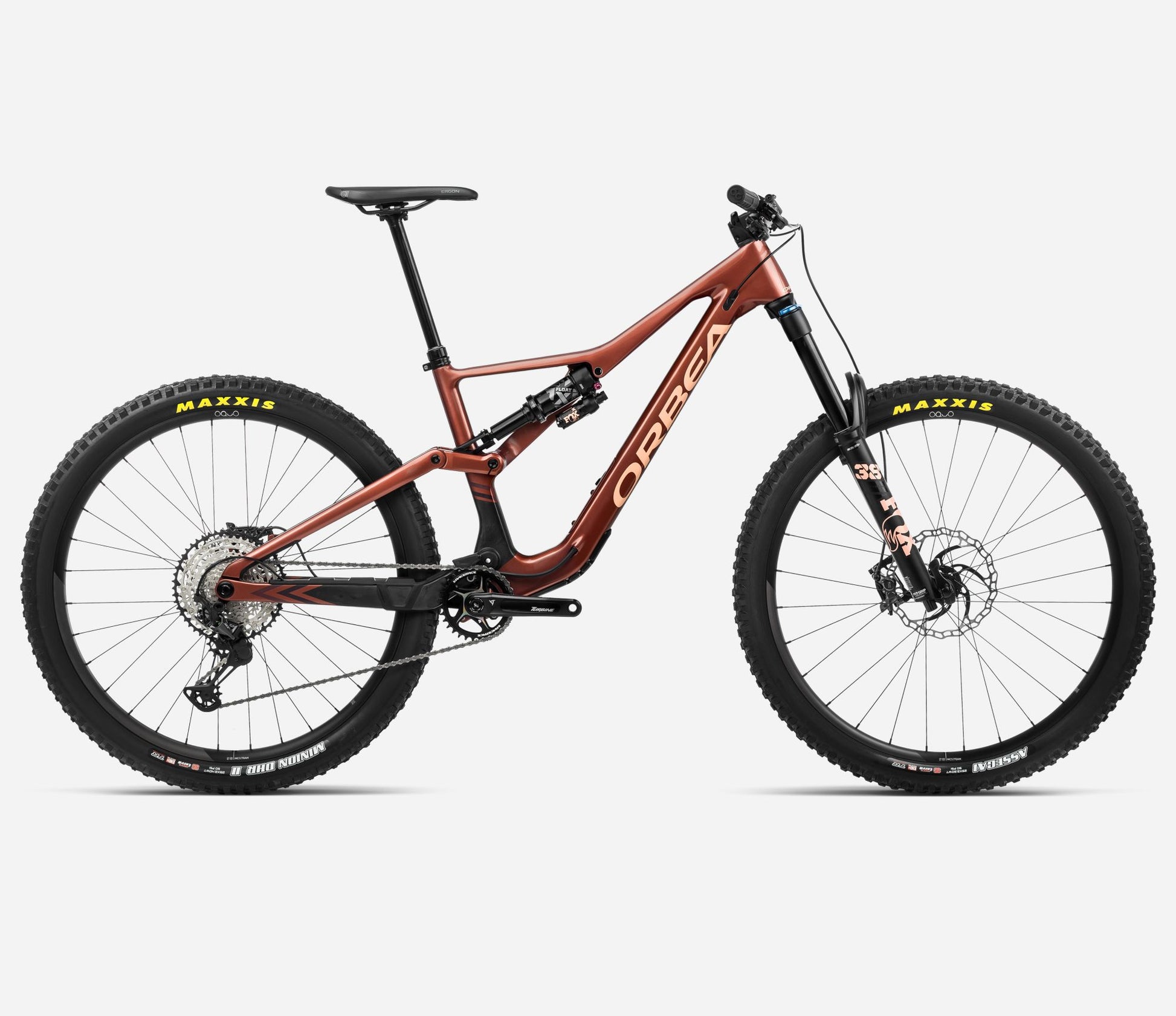

ORBEA RALLON M10 2024

SPECIFICATIONS

FRAME
Orbea Monocoque Race Carbon. Advanced Dynamics 167mm suspension technology. 29" wheels. Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05

SHOCK
Fox FLOAT X Performance 2-Position Evol LV custom tune 230x62.5mm

FORK
Fox 38 Float Performance 170 Grip 3-Position QR15x110

HEADSET
Acros Alloy 1-1/8 - 1-1/2" Integrated

CRANKSET
Race Face Turbine 32t

SHIFTERS
Shimano XT M8100 I-Spec EV

CASSETTE
Shimano CS-M7100 10-51t 12-Speed

REAR DERAILLEUR
Shimano XT M8100 SGS Shadow Plus

CHAIN
Shimano M7100

CHAINGUIDE
e*thirteen CL55 30-36t black

HANDLEBAR
OC Mountain Control MC20 Alu SL, Rise20, Width 800

STEM
OC Mountain Control MC20, 0º

COMPUTER MOUNT
N/A

BRAKES
Shimano XT M8120 Hydraulic Disc

WHEELS
Oquo Mountain Control MC32TEAM (29" Front / Rear)

TYRES
Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR

TYRES
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR

FRONT WHEEL AXLE
N/A

SEATPOST
OC Mountain Control MC21, 31.6mm, Dropper

SEATPOST LEVER
Shimano SL-MT500 I-Spec EV

SADDLE
ERGON SM Enduro

GRIPS
OC Lock On

STORAGE
Accessories Container

TOOLS
OC Rear lever (Hex 6 & valve core removal)

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
