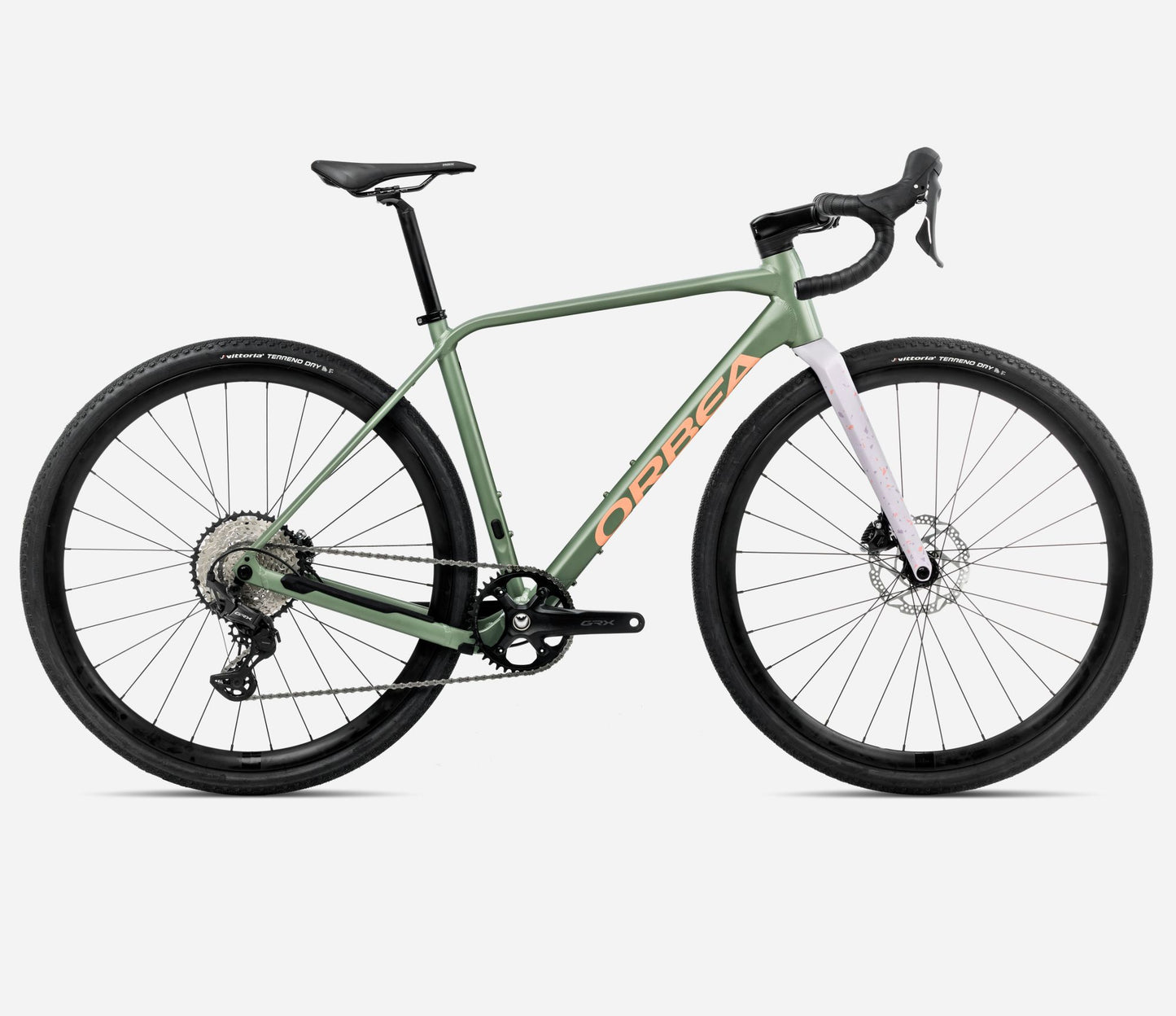

ORBEA TERRA H30 1X

Specs

Frame
Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system

Fork
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
Shimano GRX RX610 40t

Shifters
Shimano GRX RX610

Cassette
Shimano CS-M7100 10-45t 12-Speed

Rear derailleur
Shimano GRX RX822 GS

Chain
Shimano M6100

Handlebar
OC Gravel GR31-R, Rise 15, Reach 70, Drop 110

Stem
OC Road Performance RP22, -5º

Brakes
Shimano RX400 Hydraulic disc

Brakes Configuration
N/A

Wheels
Alloy, Tubeless, 700c, 21c

Tyres
Vittoria Terreno Dry Gravel 700x38c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Solid

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Seatpost
SP 0.2 Carbon, 27.2mm, Setback 20

Saddle
Prologo Akero AGX black rails size 155mm

Mudguard
N/A

Handlebar Tape
Orbea Eva

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
