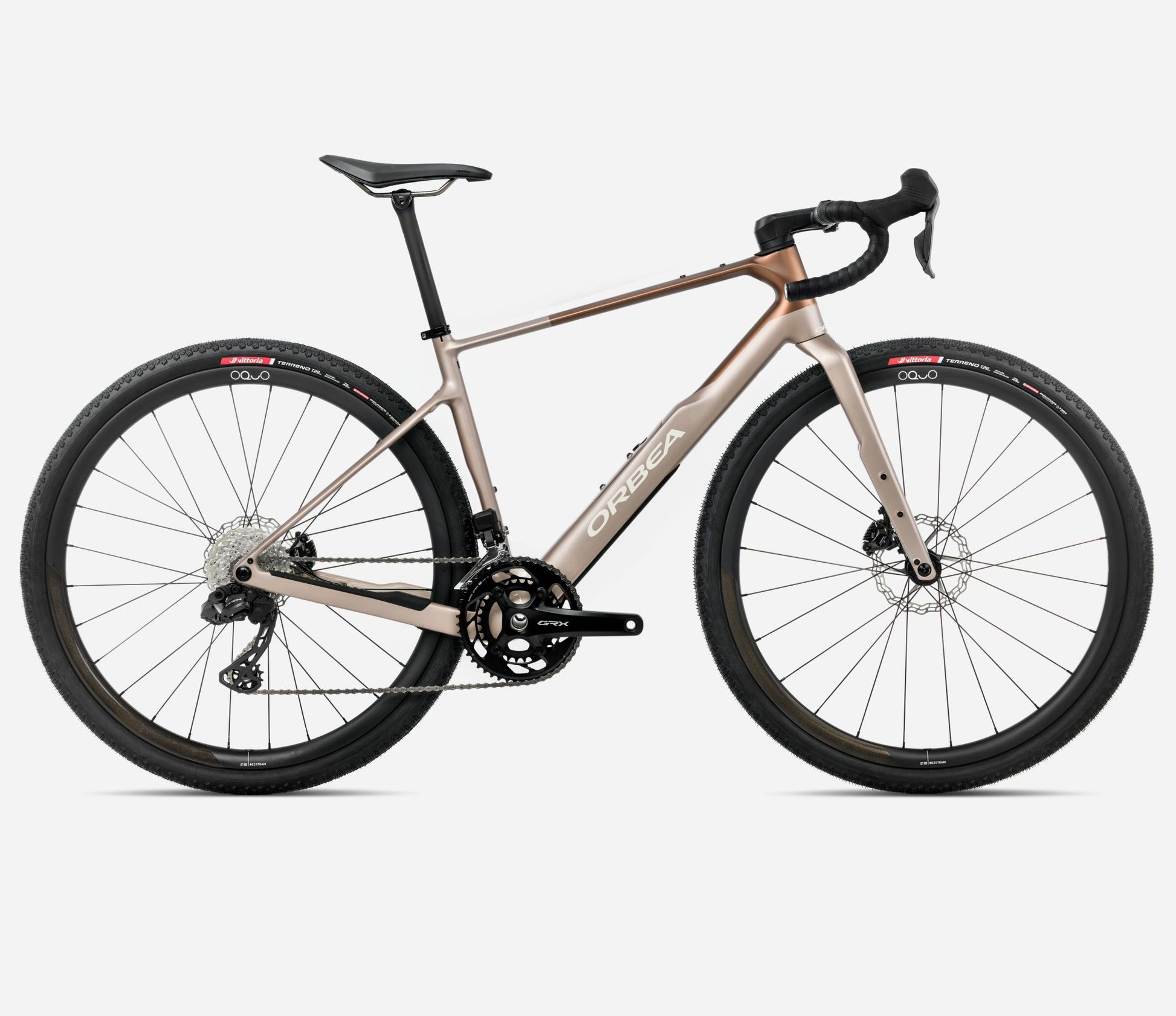

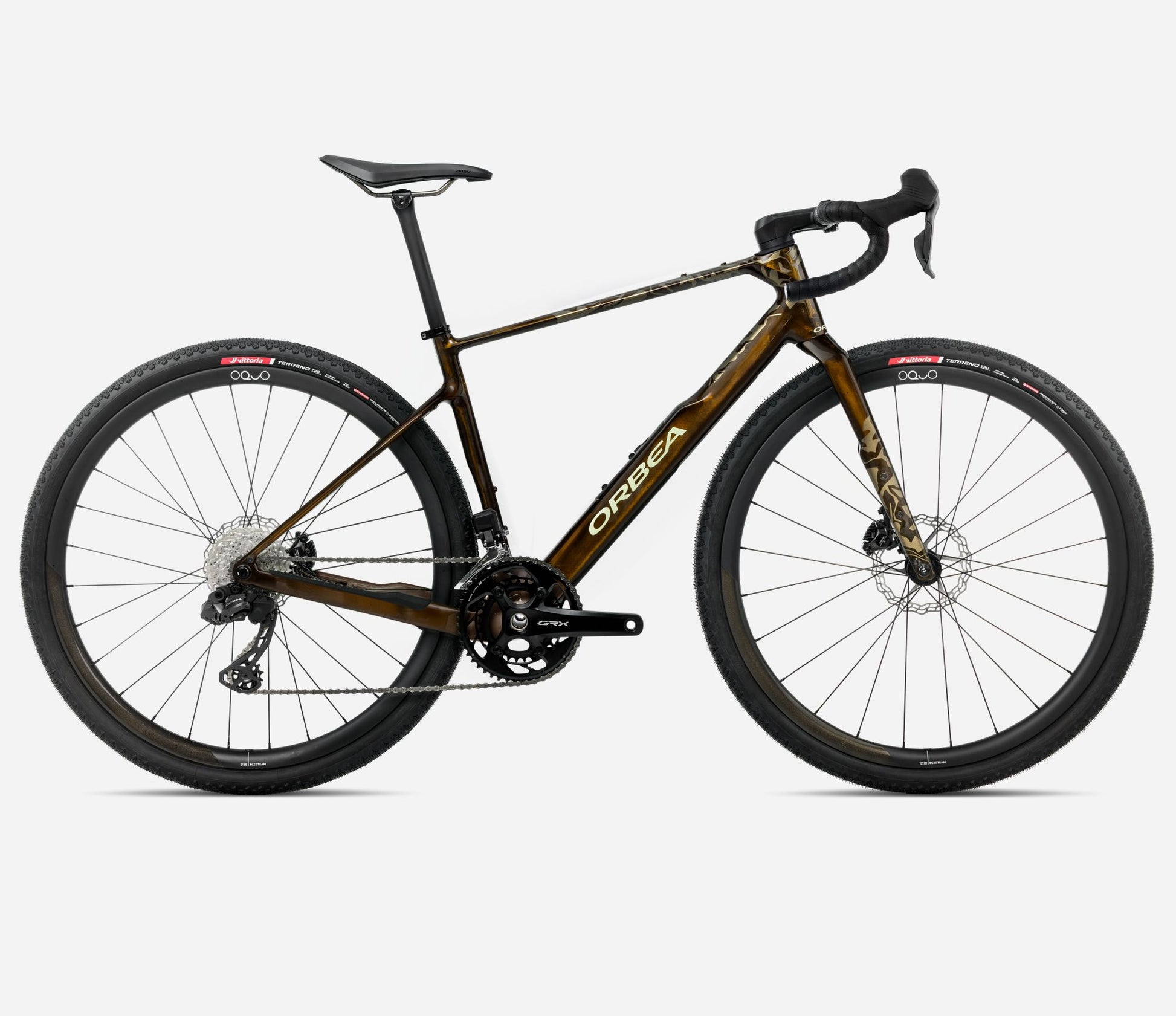

ORBEA TERRA M20I TEAM 2026

Specs

Frame
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.

Fork
Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
Shimano GRX RX820 31x48t

Shifters
Shimano GRX Di2 RX825

Cassette
Shimano Ultegra R8100 11-34t 12-Speed

Rear derailleur
Shimano GRX Di2 RX825

Front derailleur
Shimano GRX Di2 RX825

Chain
Shimano M7100

Handlebar
OC Gravel GR10 Carbon, Reach 70, Drop 110

Stem
OC Road Performance RP11, -8º

Brakes
Shimano RX820 Hydraulic Disc

Brakes Configuration
N/A

Wheels
Oquo Road Control RC30TEAM

Tyres
Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Seatpost
OC Performance XP10 Carbon, 27.2mm, Setback 0

Saddle
Fizik Terra Argo X3 Kium Rail 140mm

Mudguard
N/A

Handlebar Tape
Orbea Anti-Slippery/Shock Proof

Storage
Accesories Containers
