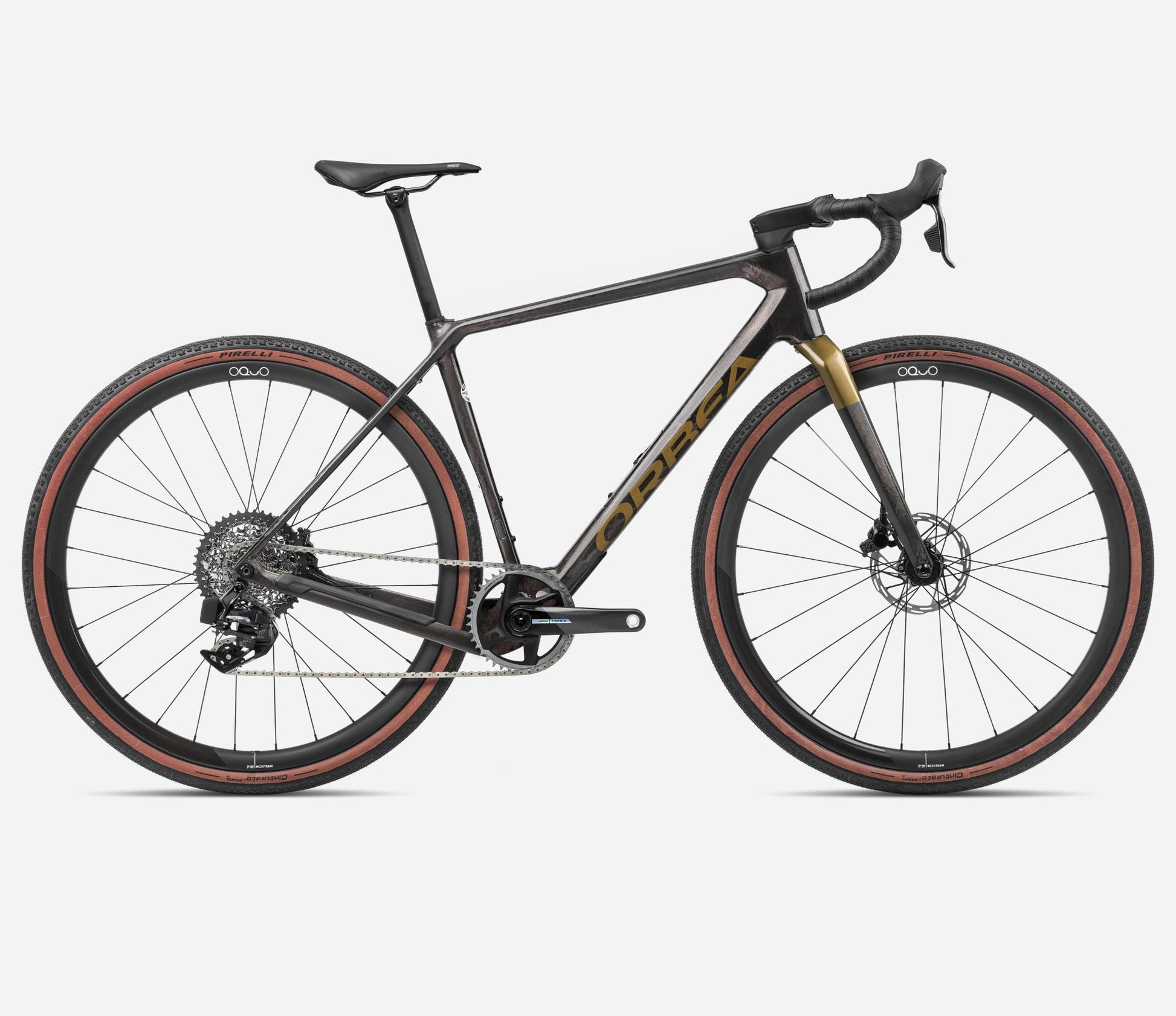

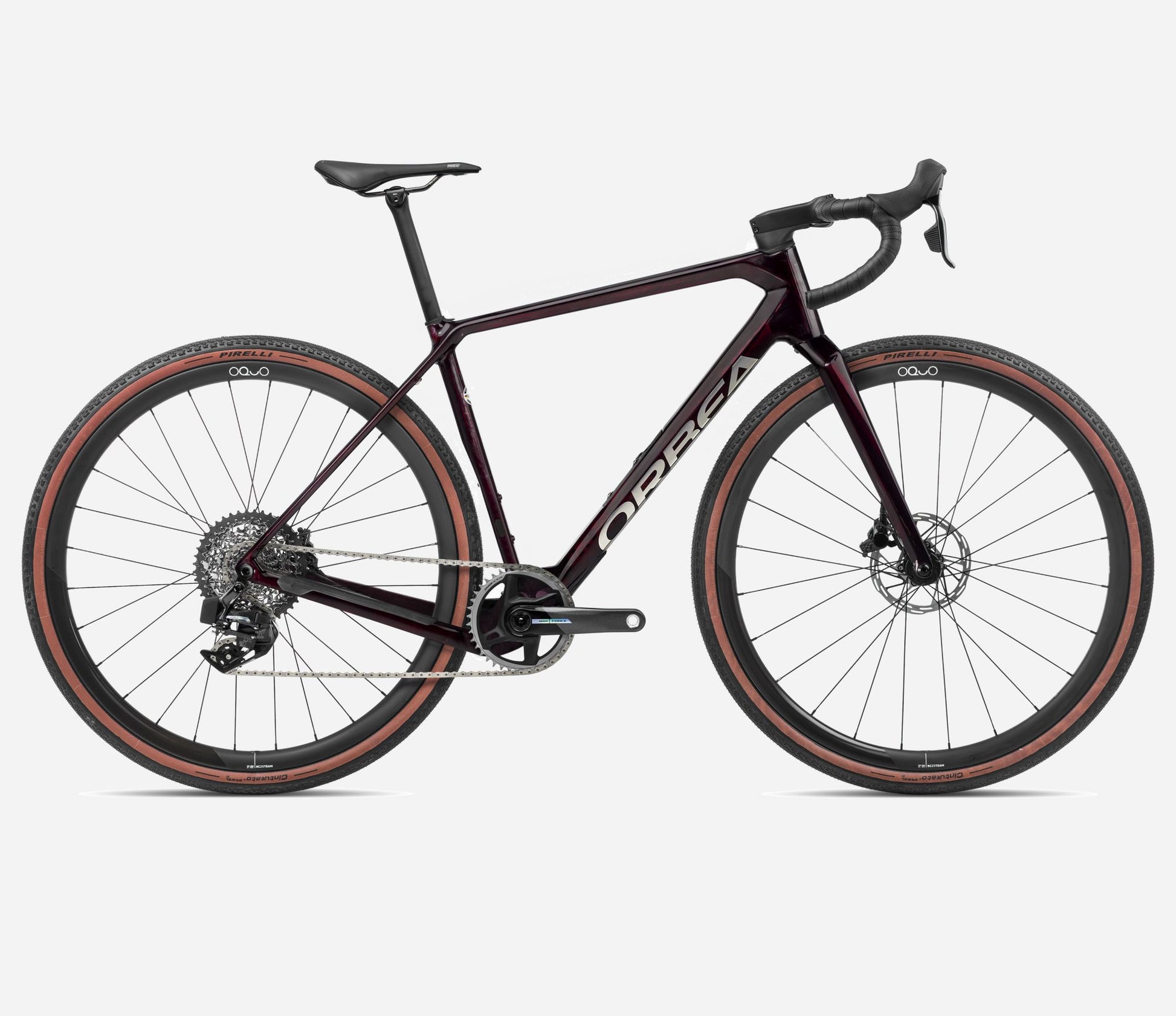

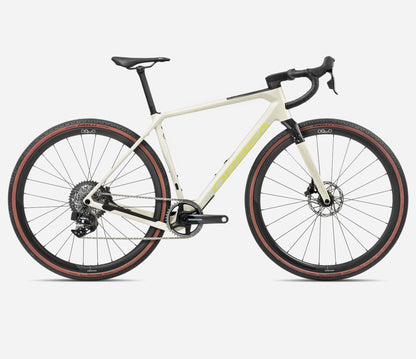

ORBEA TERRA M21ETEAM 1X 2024

SPECIFICATIONS

FRAME
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box

FORK
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

HEADSET
FSA 1-1/2" Integrated Aluminium Cup

CRANKSET
SRAM Force Dub Wide 40t

SHIFTERS
SRAM Force AXS

CASSETTE
SRAM XG-1271 XPLR 10-44t 12-Speed

REAR DERAILLEUR
SRAM Force XPLR AXS 12s

CHAIN
SRAM Force 12-Speed

HANDLEBAR
Easton EC90 AX Carbon, flare 16º, Di2 internal routing

STEM
OC Road Performance RP10, -8º

BRAKES
SRAM Force AXS

WHEELS
Oquo Road Control RC25TEAM

TYRES
Pirelli Cinturato™ Gravel H 700x40c TLR

FRONT WHEEL AXLE
Orbea Thru Axle 12x100mm M12x2 P1 Solid

REAR WHEEL AXLE
Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

SEATPOST
OC Performance XP10 Carbon, 27.2mm, Setback 0

SADDLE
Prologo Akero AGX STN size 155mm

HANDLEBAR TAPE
Orbea Anti-Slippery/Shock Proof

STORAGE
Accesories Containers
