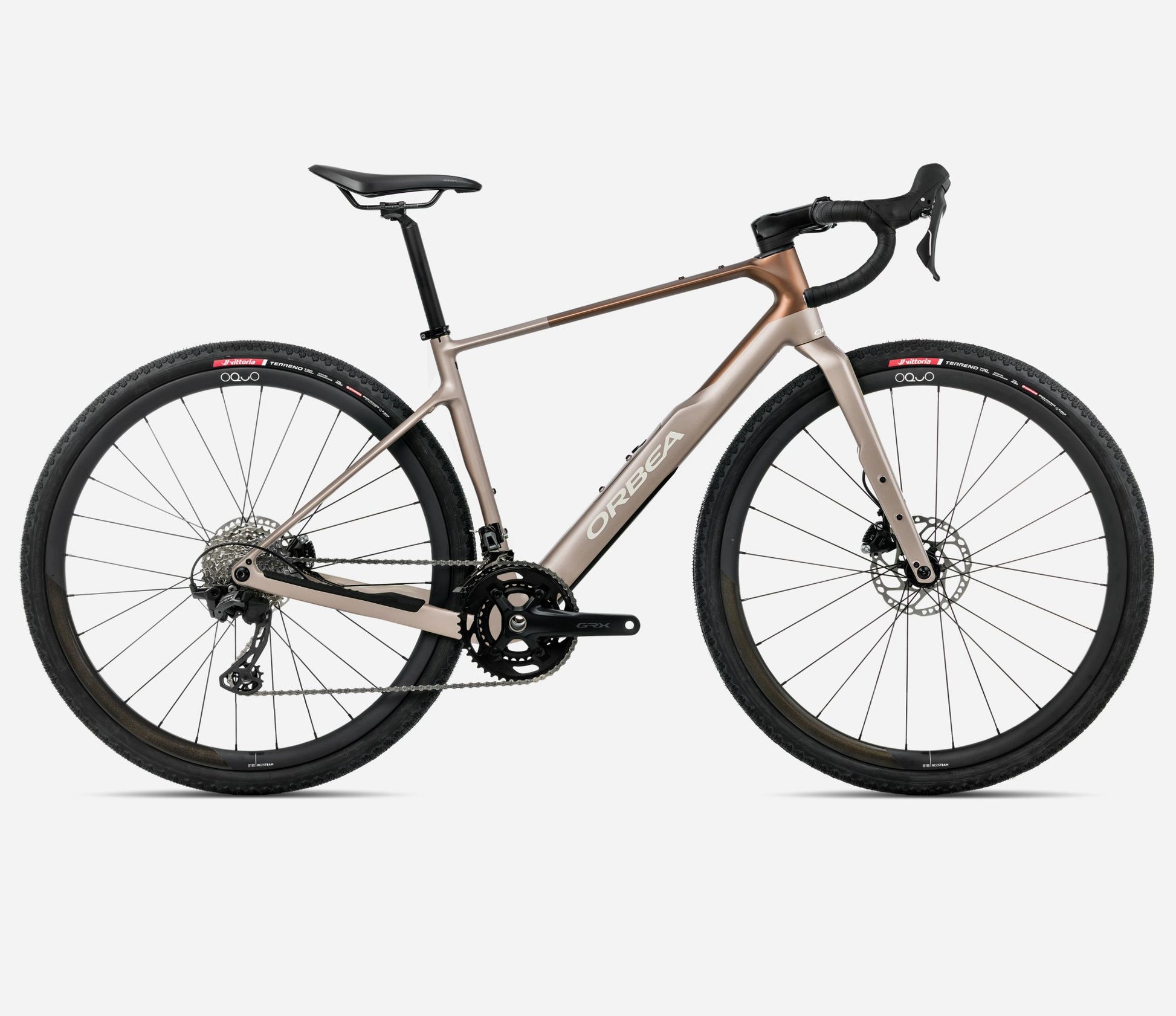

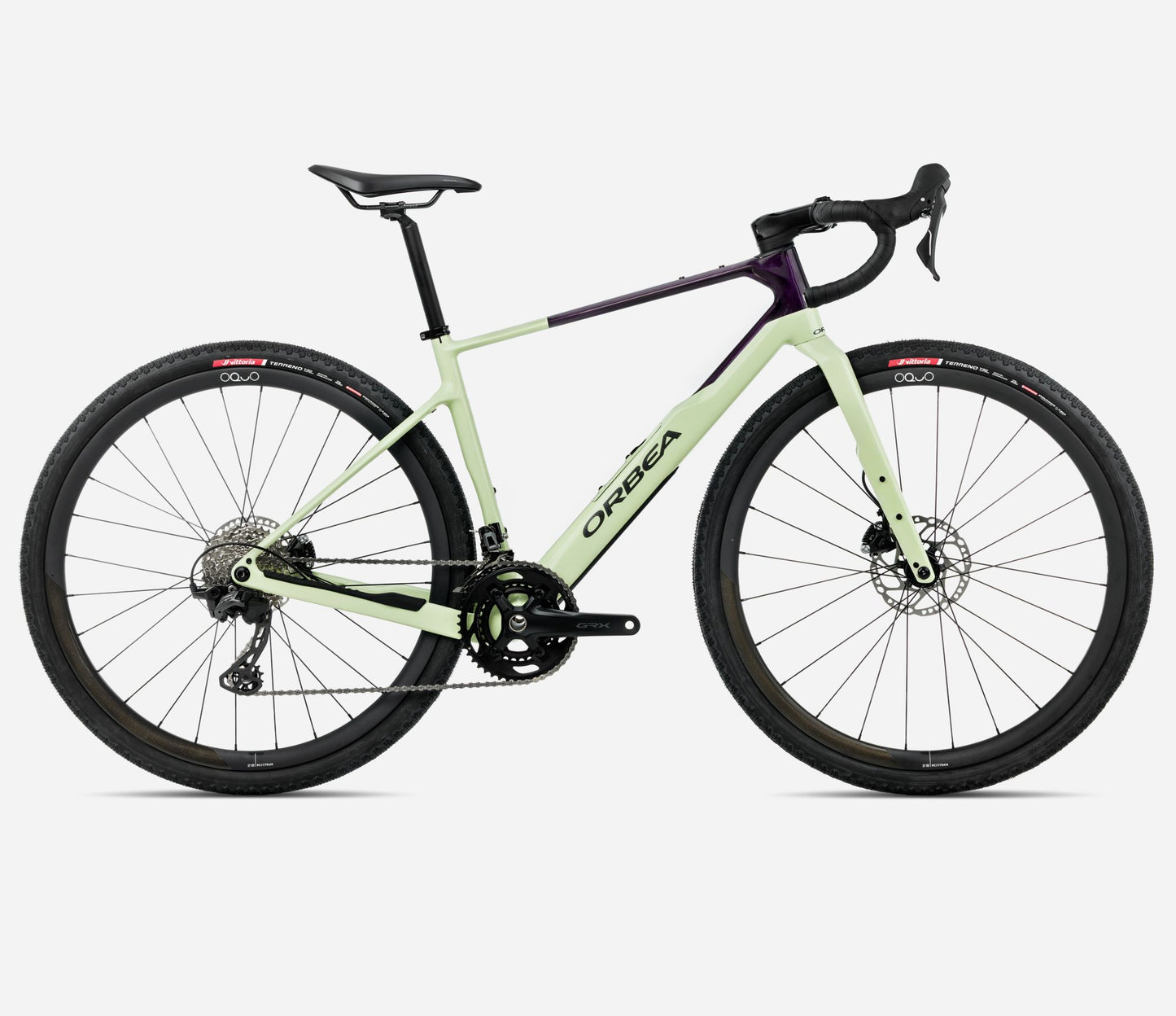

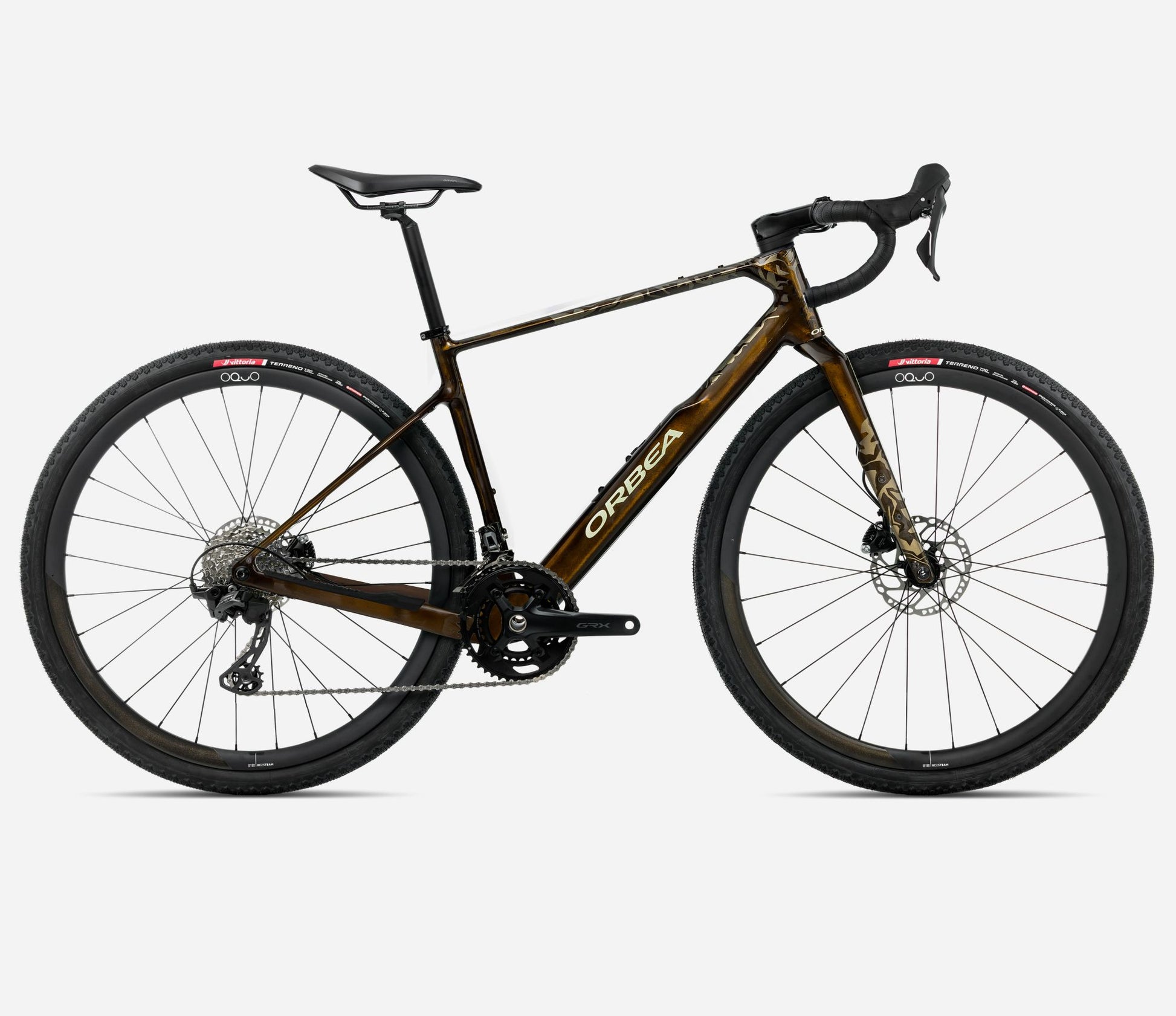

ORBEA TERRA M35TEAM 2026

Specs

Frame
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.

Fork
Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Crankset
Shimano GRX RX610 30x46t

Shifters
Shimano GRX RX610

Cassette
Shimano HG710 11-36t 12-Speed

Rear derailleur
Shimano GRX RX820

Front derailleur
Shimano GRX RX820

Chain
Shimano M6100

Handlebar
OC Gravel GR31, Reach 70, Drop 110

Stem
OC Road Performance RP23, -5º

Brakes
Shimano RX410 Hydraulic disc

Brakes Configuration
N/A

Wheels
Oquo Road Control RC30TEAM

Tyres
Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Seatpost
SP 0.2 Carbon, 27.2mm, Setback 20

Saddle
Fizik Terra Argo X7 Aluminium Rail 150mm

Mudguard
N/A

Handlebar Tape
Orbea Anti-Slippery/Shock Proof

Storage
Accessories Containers
