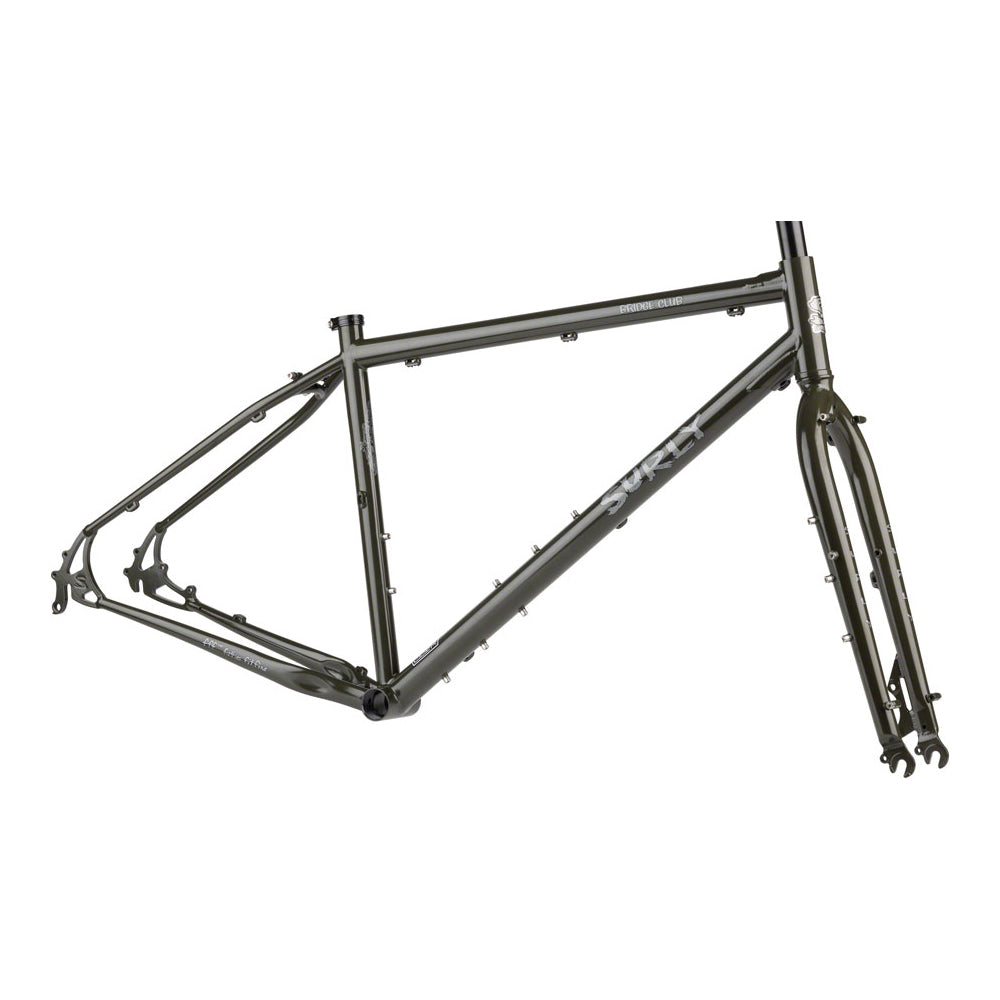

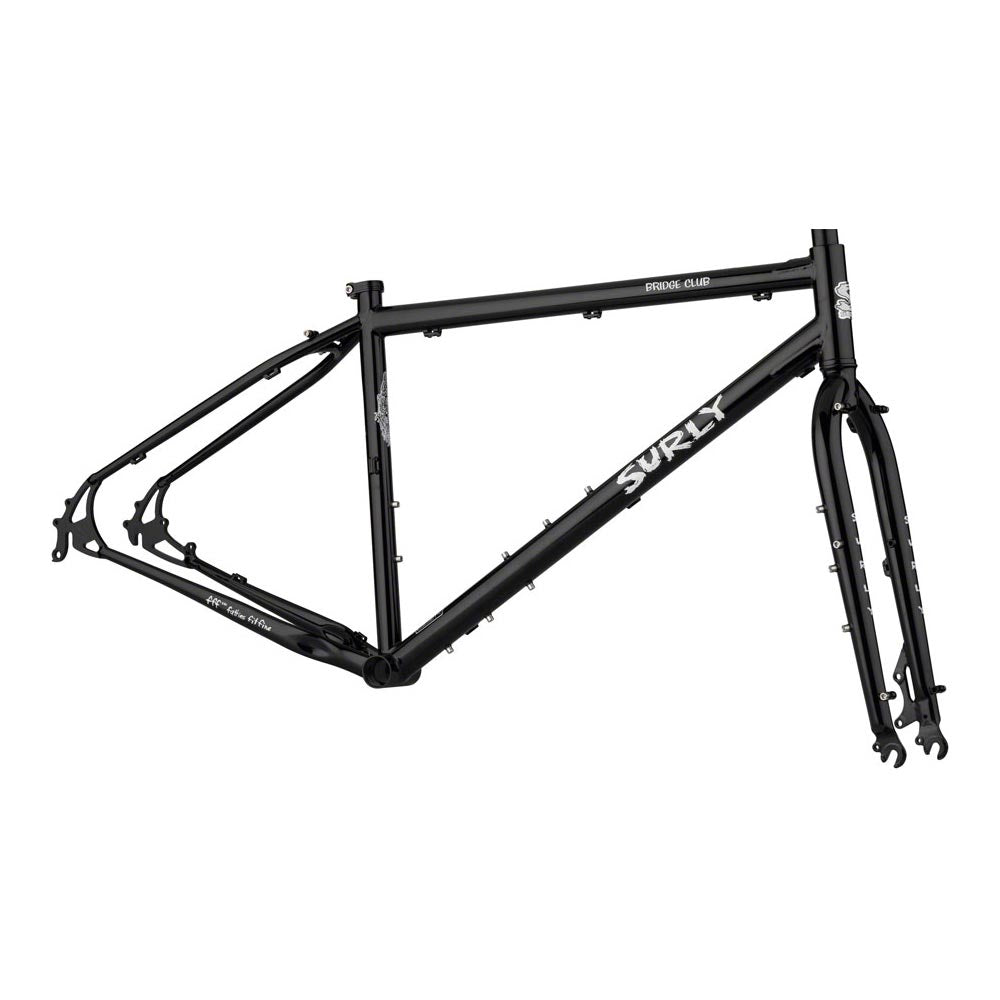

Surly Bridge Club Frameset

Surly Bridge Club Frameset

£700.00
£700.00
Sale Enquire to Order
Tax included.
Size
Colour

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!



Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Rear Dropout Configuration

Vertical

Rear Hub Spacing

"Gnot-Boost" 138mm

10 x 135mm or 10 x 141mm

Front Hub Spacing

10 x 100mm

Rear Brake

Disc - 51mm I.S. (180mm max rotor)

Front Brake

Disc - 51mm I.S. (203mm max rotor)

Head Tube

Ø34mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.)

EC34/28.6

Stock Headset Lower (S.H.I.S.)

EC34/30

Seat Collar

Ø30mm

Seatpost

Ø27.2mm

Front Derailleur (Clamp)

High direct mount top-pull (Ø28.6mm)

26mm offset adapter (not included) for 135mm rear hub spacing

29mm offset adapter (not included) for 141mm rear hub spacing

Max Chainring (CL)[3]

1x (Mtn): 34T

2x (Mtn): 26/40T

3x (Mtn): 22/36/44T

1x (Boost): 40T

2x (Boost): 32/42T

Bottom Bracket

73mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1]/[2]

26 x 3.0" (26 x 2.8" with fenders)

27.5 x 2.8" (27.5 x 2.6" with fenders)

700c x 47 with or without fenders

Tire Clearance Fork [1]

26 x 3.0" (26 x 2.8" with fenders)

27.5 x 2.8" (27.5 x 2.6" with fenders)

700c x 47 with or without fenders

Rigid Fork Spec

420 x 43mm

Max Suspension Fork Length [4]

N/A

Bottle Mounts Frame

2 Three-Pack (XS)

1 Standard + 2 Three-Pack (S - XL)

Bottle Mounts Fork

2 Three-Pack

Rack Mounts Frame

Yes (upper and lower threaded)

Rack Mounts Fork

Yes (upper, lower, and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

Yes

  • [1] Different tire and rim combinations will result in different clearances.
    [2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
    [3] Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
    [4] Suspension fork length listed at full extension (not at sag)
