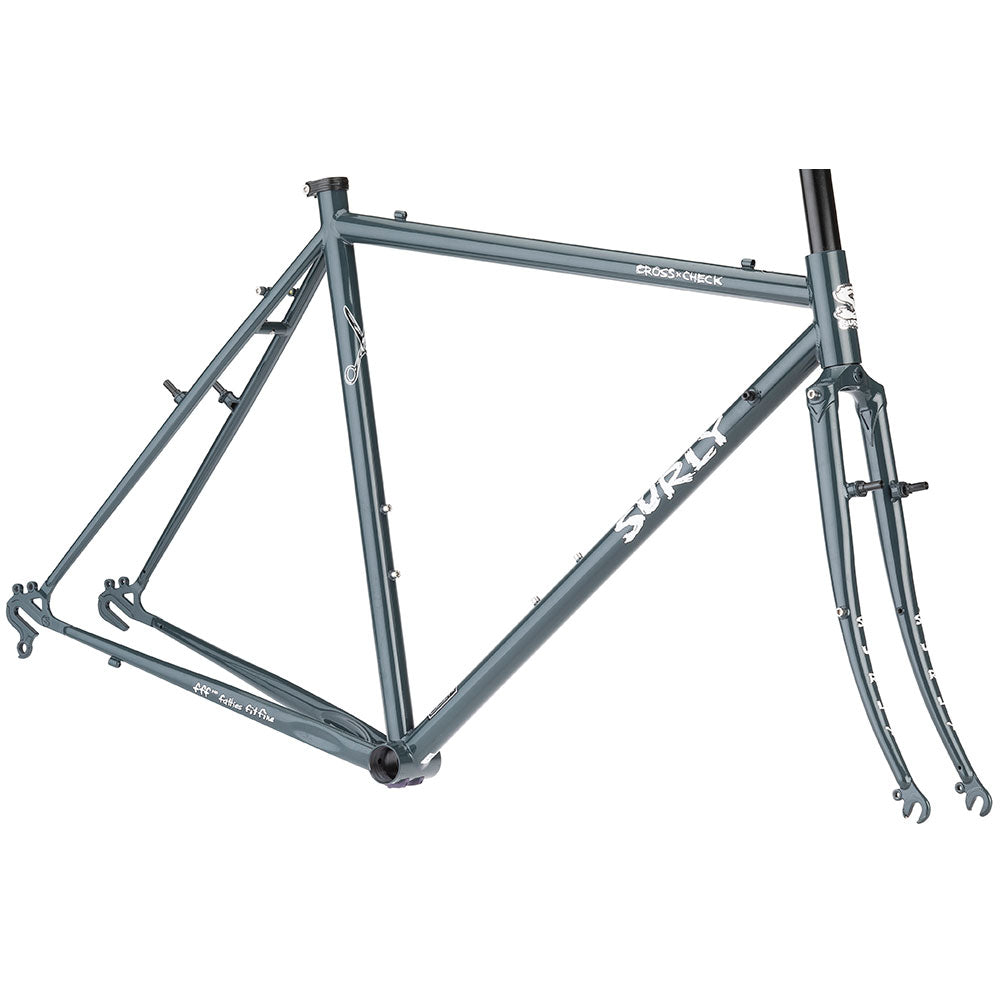

Name: Surly Cross Check Frameset
Brand: Surly
Price: 700.0 GBP
Availability: OutOfStock

100% Surly 4130 chromoly frame, main triangle is double-butted; 1-1/8" threadless brazed chromoly fork
Bosses front and rear for cantilever or linear-pull brakes, rack and fender eyelets at the dropouts, dual water bottle mounts, eyelets at the crown, and fully threaded through-blade fork eyelets for a front rack
Semi-horizontal dropouts with a derailleur hanger for geared or singlespeed drivetrains and/or wheelbase adjustability

Works with all single, double, and triple road or mountain cranksets
Includes seatpost clamp, and dropout adjusting screws
Clearance to run 700c x 45mm tyres; 40mm with mudguards

Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated

Rear Dropout Configuration: Semi-horizontal

Rear Hub Spacing

"Gnot-rite" 132.5mm

10 x 130mm or 10 x 135mm

Front Hub Spacing: 10 x 100mm

Rear Brake: Rim - Canti

Front Brake: Rim - Canti

Head Tube: Ø34mm

Steerer Tube: Ø28.6mm (1-1/8")

Crown Race: Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.): EC34/28.6

Stock Headset Lower (S.H.I.S.): EC34/30

Seat Collar: Ø30mm

Seatpost: Ø27.2mm

Front Derailleur (Clamp): Bottom-pull (Ø28.6mm)

Max Chainring (CL)^[3]

1x (Road): 50T

2x (Road): 39/53T

Bottom Bracket: 68mm threaded (1.37" x 24TPI)

Tire Clearance Frame ^[1]^[2]: 700c x 42mm with or without fenders

Tire Clearance Fork ^[1]: 29 x 2.0" with or without fenders

Rigid Fork Spec: 400 x 44mm

Max Suspension Fork Length ^[4]: N/A

Bottle Mounts Frame: 2 Standard

Bottle Mounts Fork: N/A

Rack Mounts Frame: Yes (upper and lower threaded)

Rack Mounts Fork: Yes (upper and mid-blade threaded)

Fender Mounts Frame: Yes

Fender Mounts Fork: Yes

Other Features: Downtube mounted shifter bosses (cable housing stops not included with frameset)

[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)
