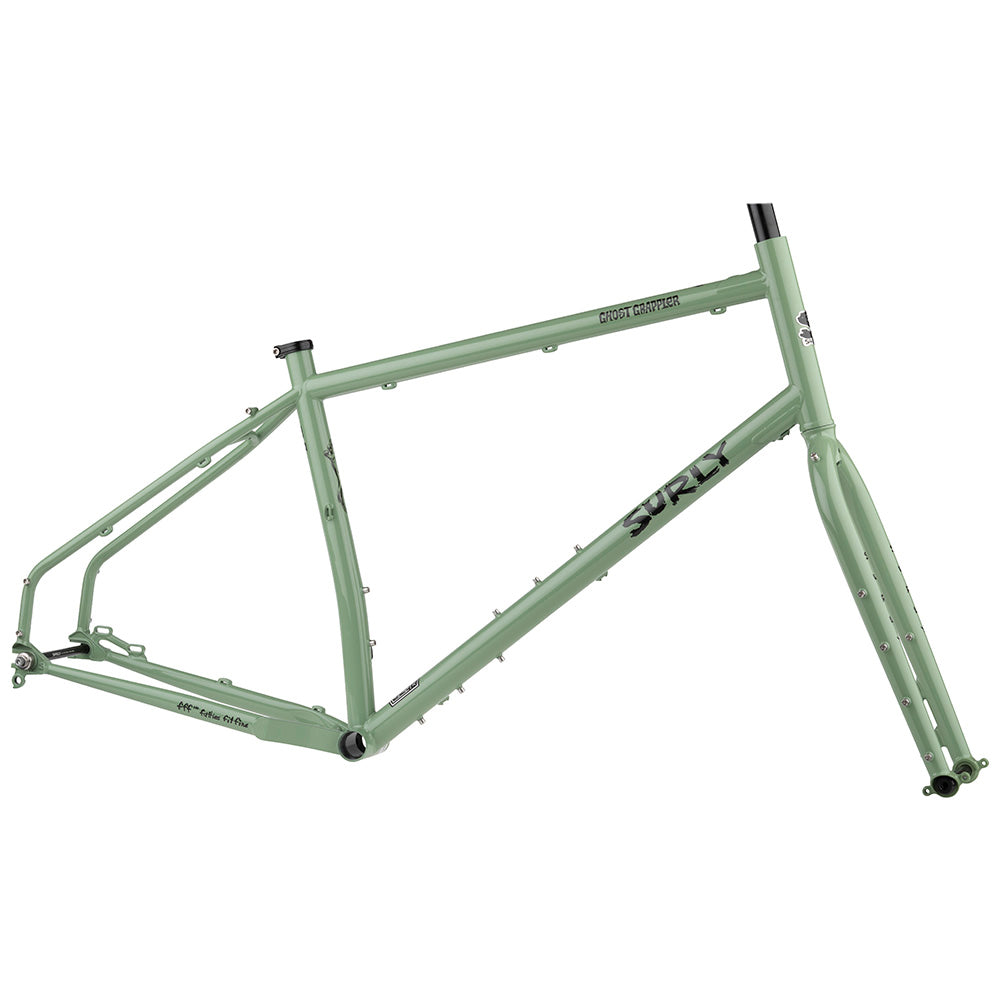

Surly Ghost Grappler Frameset

Surly Ghost Grappler Frameset

£950.00
£950.00
Sale Enquire to Order
Tax included.
Size
Colour

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

A Trail Bike Tailored for Drop Bars

Off-road enthusiasts have been Frankensteining drop bars onto trail bikes for decades, so Surly designed the Ghost Grappler to scratch that itch with a little more precision. Engineered first and foremost around a stable and comfortable drop-bar hand position, its trail-ready geo provides a spirited ride on mixed terrain.

Cleared for girthy tyres and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Ghost Grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There's nothing to be afraid of. Probably.



Frame Construction

100% Surly Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork Construction

100% Surly Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Rear Dropout Configuration

Horizontal slotted with optional vertical dumpout

Rear Hub Spacing

"Gnot-Boost" 145mm; 12 x 142mm or 12 x 148mm (Surly axle included); 10 x 135mm with Surly 10/12 Adapter Washers (not included)

Front Hub Spacing

15 x 110mm (Surly axle included)

Rear Brake

Disc - 51mm I.S. (203mm max rotor)

Front Brake

Disc - 51mm I.S. (203mm max rotor)

Headtube

Ø34mm

Steerer Tube

Ø28.6mm

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S)

EC34 or ZS34

Stock Headset Lower (S.H.I.S)

EC34

Seat Collar

33.1mm

Seatpost

Ø30.9mm

Front Derailleur (Clamp)

High direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included) for 142 or 135mm rear hub spacing 29mm offset adapter (not included) for 148mm rear hub spacing

Max Chainring (CL) [3]

1x (mtn): 36T
2x (mtn): 36/26T
1x (Boost): 38T
2x (Boost): 39/32T

Bottom Bracket

73mm BSA, threaded

Tire Clearance Frame [1]/[2]

27.5 x 3” (27.5 x 2.8” with fender)
29 x 2.1–2.5” with or without fender (2.1” clearance with wheel all the way forward; 2.5” clearance with wheel all the way back in dropout)

Tire Clearance Fork [1]

27.5 x 2.8” (27.5 x 2.6” with fender)
29 x 2.2” (29 x 2.0” with fender)

Rigid Fork Spec

420 x 50mm

Design Suspension Fork Length [4]

N/A

Max Suspension Fork Length [4]

420mm

Bottle Mounts Frame

3-pack mounts on upper and lower downtube; seat tube bottle mounts on frame sizes S–XL

Bottle Mounts Fork

3-pack mounts on each fork blade

Rack Mounts Frame

Yes (upper and lower threaded)

Rack Mounts Fork

Yes (upper and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

Yes

Other Features

Internal dropper post routing

  • [1] Different tire and rim combinations will result in different clearances.
    [2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not the frame.
    [3] Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
