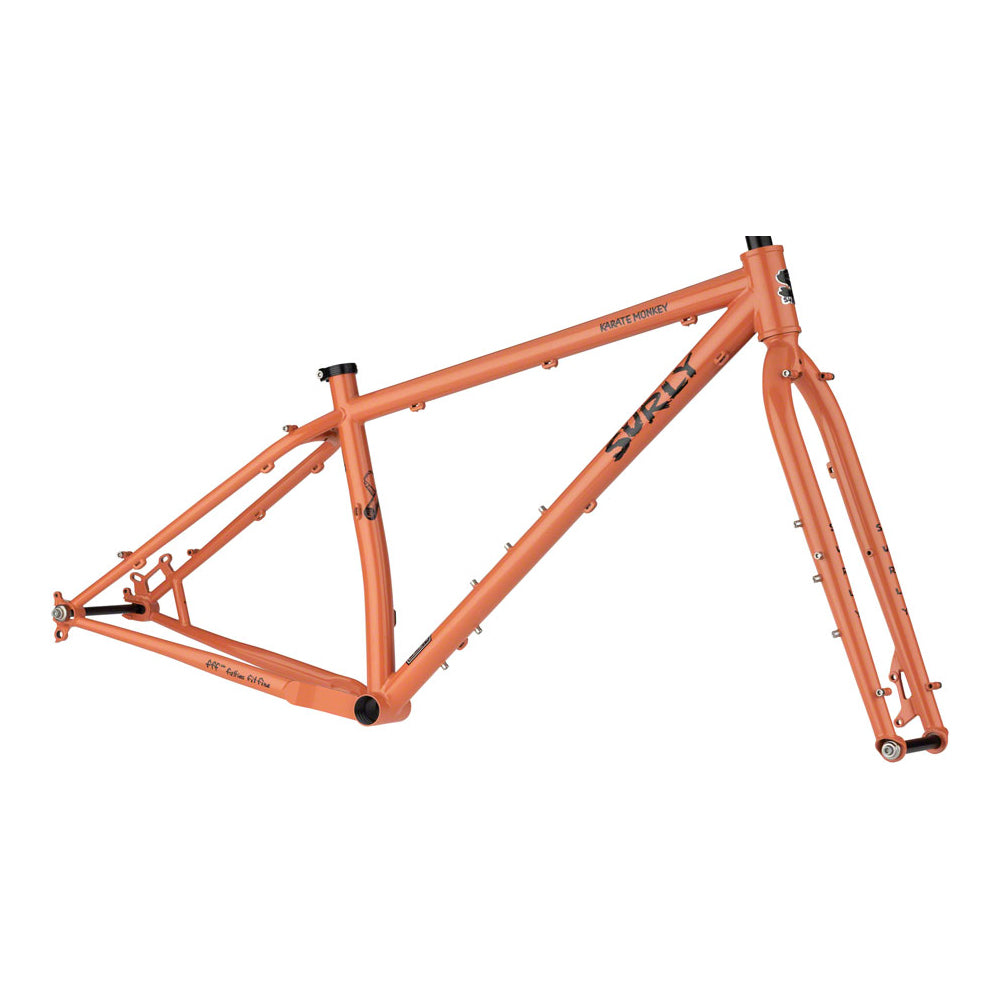

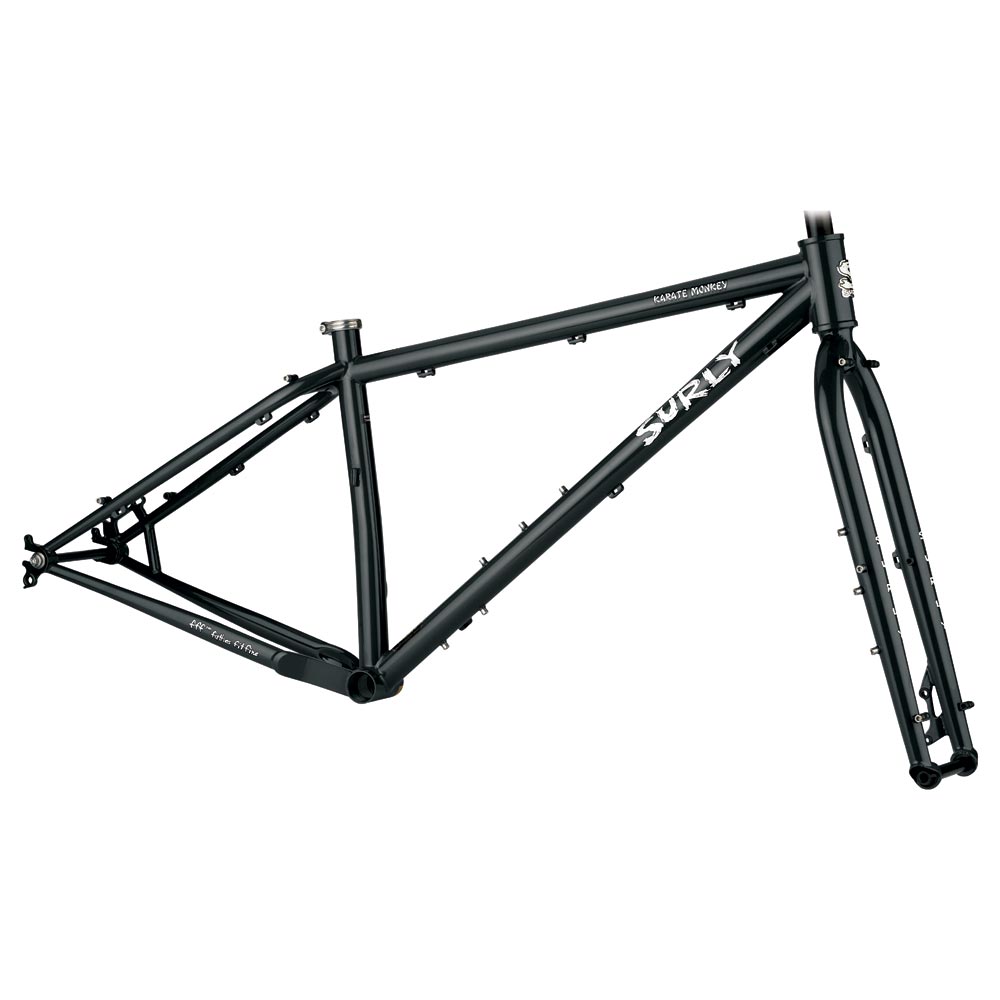

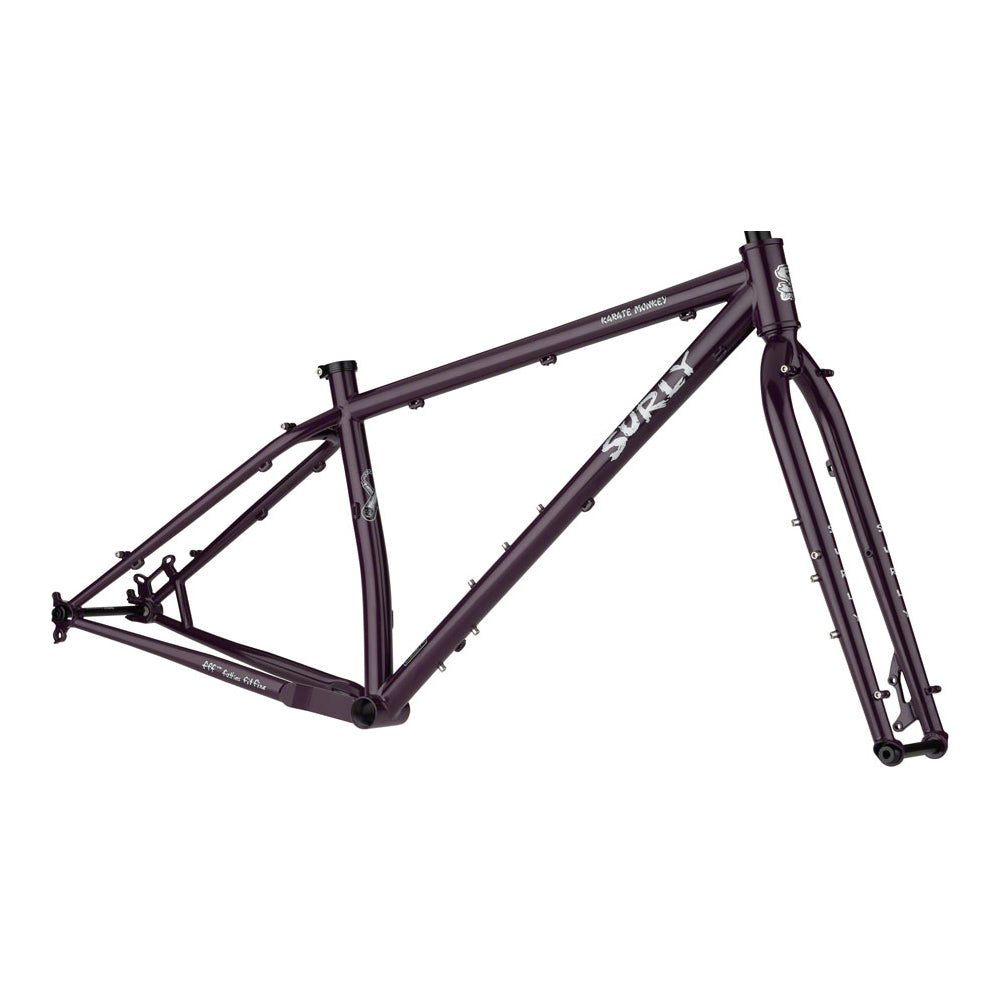

Surly Karate Monkey 27.5+ Frameset

Surly Karate Monkey 27.5+ Frameset

£1,000.00
£1,000.00
Sale Enquire to Order
Tax included.
Size
Colour

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

Multipurpose Hardtail Mountain Bike.


Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to our computing machine (Thor), it can be set up in approximately 487 different configurations.

Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.



Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Rear Dropout Configuration

Horizontal slotted with optional vertical dumpout

Rear Hub Spacing

"Gnot-Boost" 145mm
12 x 142mm or 12 x 148mm (Surly axle included)
10 x 135mm with Surly 10/12 Adapter Washers (not included)

Front Hub Spacing

15 x 110mm (Surly axle included)

Rear Brake

Disc - 51mm I.S. (203mm max rotor)

Front Brake

Disc - 51mm I.S. (203mm max rotor)

Head Tube

Ø44mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S)

ZS44/28.6

Stock Headset Lower (S.H.I.S)

EC44/30

Seat Collar

Ø33.1mm

Seatpost

Ø30.9mm

Front Derailleur (Clamp)

High direct mount top-pull (Ø34.9mm)
26mm offset adapter (not included) for 142 or 135mm rear hub spacing
29mm offset adapter (not included) for 148mm rear hub spacing

Max Chainring (CL) [3]

1x (Mtn):  28T
2x (Mtn):  24/34T
1x (Boost):  32T
2x (Boost):  24/36T

Bottom Bracket

73mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1]/[2]

27.5 x 3.0”
29 x 2.5"

Tire Clearance - Rigid Fork [1][5]

29 x 3.0”

Rigid Fork Spec

483 x 47mm

Max Suspension Fork Length [4]

551 x 51mm (27.5+ 140mm)

Bottle Mounts Frame

1 Standard + 1 Three-Pack (XS - M)
2 Standard + 1 Three-Pack (L - XL)

Bottle Mounts Fork

2 Three-Pack

Rack Mounts Frame

Yes (upper and lower threaded)

Rack Mounts Fork

Yes (upper, lower, and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

N/A

Other Features

Internal dropper post routing compatible

  • [1] Different tire and rim combinations will result in different clearances.
    [2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not the frame.
    [3] Listed chainring clearance is worst-case scenario.  Clearances vary widely depending on components and configurations.
    [4] Suspension fork length listed at full extension (not at sag)
    [5] For suspension fork tire clearance, please reference the fork manufacturer's website.
